Operating/assembly instructions
Mat transport trolley
Prod. code: 126 4917
Operating/assembly instructions for mat transport trolley
Thank you very much for choosing a Sport-Thieme product. We want to make sure
that you can enjoy this product, so here is some important advice for your safety as
well as for the use and maintenance of the equipment.
Please read these instructions fully before you assemble and
When you open the package, please ensure all the necessary parts are included:

1 x bar with swivel castors
‚
2 x post
ƒ
1 x top with mat hanging bars
„
2 x strut
…
4 x countersunk bolt M8 x 55 with cap nut
†
4 x hex bolt M8 x 50 with locking nut
‡
4 x hex bolt M8 x 45 with locking nut
ˆ
20 x washer
1. General
The mat transport trolley is designed for the tidy storage of rollable exercise mats. The
practical transport aid provides space for up to 20 mats and helps to keep the
equipment room tidy.
use the equipment:
‚
‚
„
„

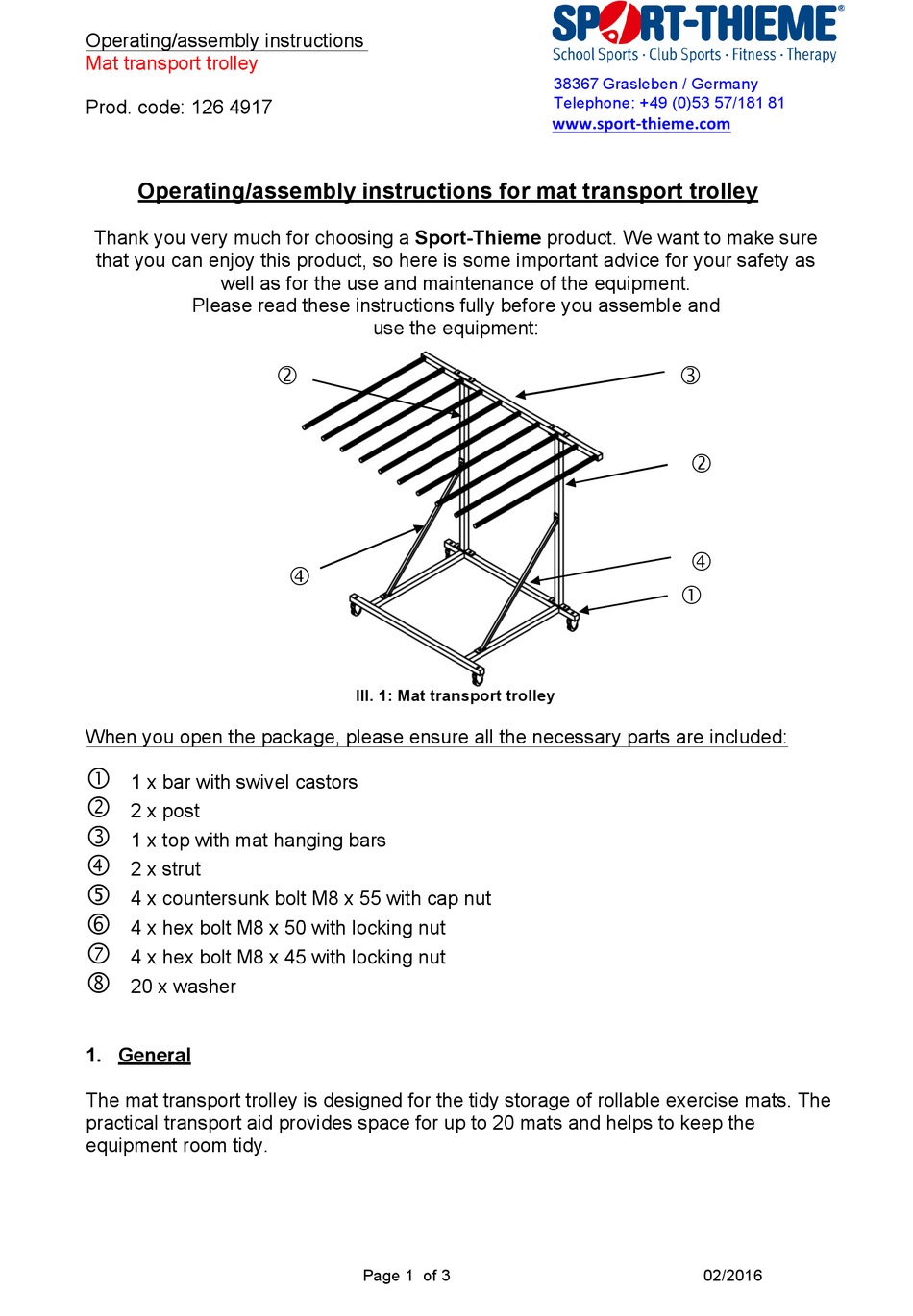

Ill. 1: Mat transport trolley
Page 1 of 3
38367 Grasleben / Germany
Telephone: +49 (0)53 57/181 81
www.sport-thieme.com
ƒ
ƒ
‚
‚
„
„



02/2016
