Definitive Technology Mythos Ten Brochure

Damped extruded
aluminum enclosure
in polished Silver or
gloss Black
Racetrack Planar
Low-Bass Radiators
for extended
bass response
Balanced Double
Surround System
high definition drivers
with cast baskets
New 1" Pure Aluminum
dome tweeter
PolyStone
non-resonant baffle

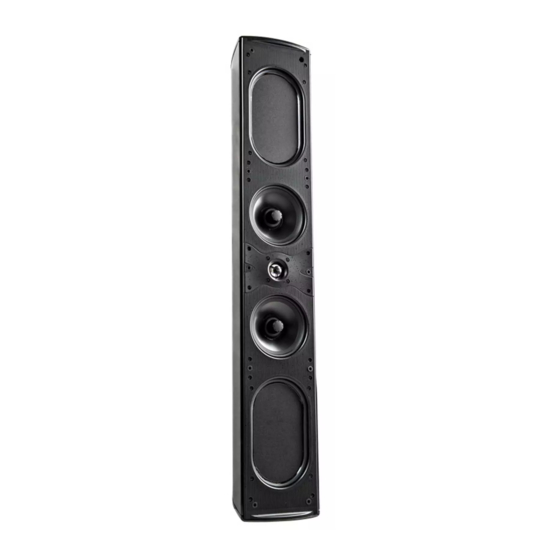

Legendary Mythos ® Performance for Large Flat Panel TVs
Definitive Technology has done it again! The Mythos Ten is the newest member of the critically
acclaimed Mythos line of high performance loudspeakers. Mythos Ten is perfectly proportioned to
match 55" and larger flat panel video displays and is the perfect center channel complement to the
astounding Mythos ST SuperTowers
of advanced driver and enclosure technologies used in the top-of-the-line award-winning Mythos ST,
the Mythos Ten achieves a level of performance never before available in on-wall loudspeakers.
Each Mythos ® Ten contains two high-definition Balanced Double Surround System (BDSS) 5
(patent pending) that are pressure-coupled to two 5" x 8" racetrack-shaped planar Low-Bass Radiators
for a total bass radiating surface greater than that of a 12" conventional woofer. The result is bass
extension and power unheard of in a slim on-wall loudspeaker. The bass roll-off of the
Mythos Ten is smooth and controlled, allowing it to seamlessly blend with a
powered subwoofer, such as Definitive's SuperCubes, for audiophile-grade home
theater power and precision.
The two active 5 1 / " drivers surround a new generation Pure Aluminum dome tweeter,
4
the same used in Definitive's Mythos
incorporates a new voice coil, new dome, new surround, and an acoustically con-
toured faceplate for unequaled high frequency extension, detail, and smoothness.
Mythos Series enclosures are hand-polished gloss Black or Silver aircraft-grade
extruded aluminum with proprietary damping technologies
that ensure total rigidity. All components are mounted on a
resonance-free PolyStone baffle. These rock-solid construction
technologies along with state-of-the-art drivers and tweeter
serve to deliver classic Definitive Technology sound quality:
wide soundstage, pinpoint imaging, high dynamic impact,
and superb realism.
MYTHOS TEN SPECIFICATIONS
Dimensions: 6 1 / " W x 4 3 / " D x 34 1 / " H
16 8 2
Driver Complement:
– Two 5 1 / " BDSS cast basket bass/mid drivers
4
– Two 5" x 8" pressure-driven low-bass radiators
– One 1" Pure Aluminum dome tweeter
Frequency Response: 31 Hz – 30 kHz
Nominal Impedance: Compatible with 4 – 8 ohm outputs
Recommended Amplification: 10 – 300 Watts/channel
Sensitivity: 93 dB
Mounting Options: Stainless Steel wall mount bracket and
shelf leveling foot included
Available Finishes: polished Silver or gloss Black
® for a truly state-of-the-art home theater system. Through the use
® ST SuperTowers ® . This remarkable new tweeter
1 / " drivers
4
