  • Page 1 SKF TKTL 21 Instructions for use...

  • Page 2: Table Of Contents

    Table of contents Safety recommendations ............3 EC Declaration of conformity .............4 1. Introduction ................5 2. Quick start ................5 3. Features ................5 4. Technical data ..............6 5. Front panel and button description ........8 6. Display overview ...............10 7. Menu overview ..............11 8.

  • Page 3: Safety Recommendations

    Never use the instrument under rain or very wet conditions • Not for intrinsically safe area • All repair work should be taken care of by an SKF repair shop. • Here is a table of hazardous substance name and concentration for TKTL 21:...

  • Page 4: Ec Declaration Of Conformity

    EC Declaration of conformity We, SKF Maintenance Products, Meidoornkade 14, 3992 AE Houten, The Netherlands herewith declare under our sole responsibility that the products described in these instructions for use, are in accordance with the conditions of the following Directive(s):...

  • Page 5: Introduction

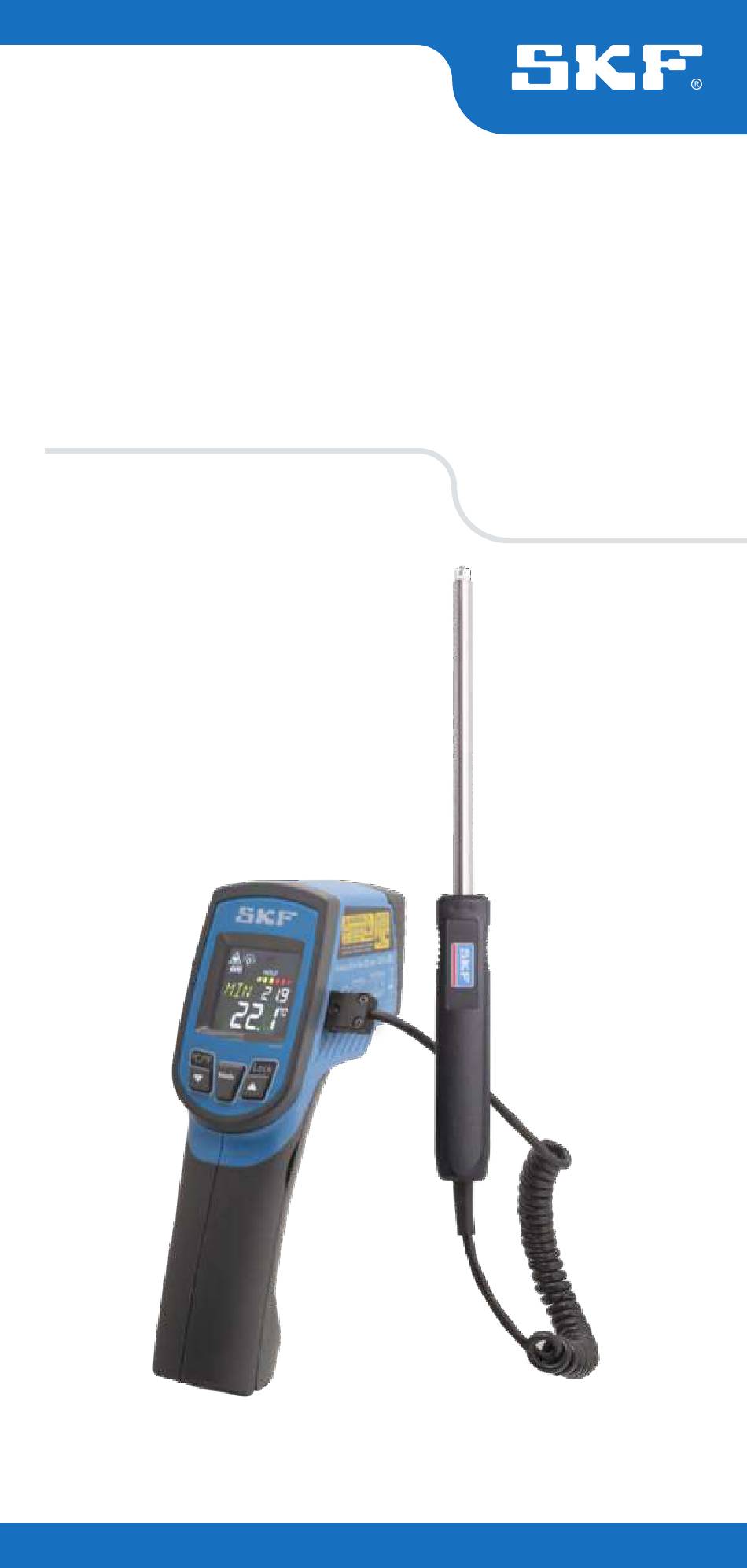

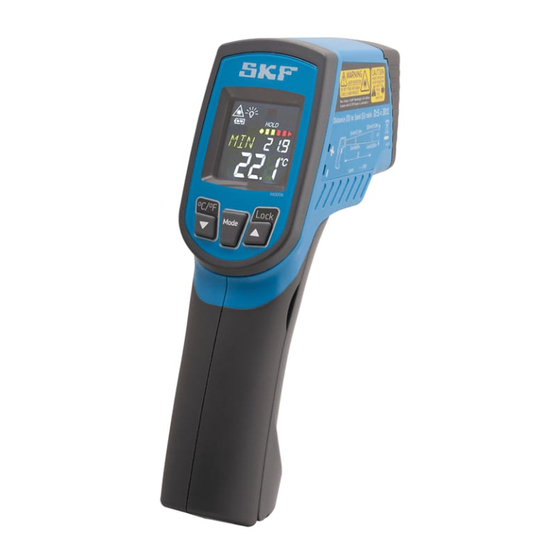

    1. Introduction The SKF TKTL 21 is a portable, lightweight multi- functional instrument for safely measuring temperatures at a distance. Simply aim and pull the trigger and the temperature is shown on the display. Users can also measure contact temperatures using the probe supplied.

  • Page 6: Technical Data

    4. Technical data Designation TKTL 21 Temperature range -60 to 760 °C (-76 to 1 400 °F) Temperature range using probe -64 to 1 400 °C (-83 to 2 552 °F) Probe supplied TMDT 2-30, suitable for use up to 900 °C (1 650 °F)
  • Page 7 Designation TKTL 21 Battery 2 × AAA Alkaline type IEC LR03 Battery lifetime Min. 30 hours continuous use without laser. Min. 3 hours continuous use with laser and white LED Switch off IR mode automatic after 60 seconds after trigger is released.

  • Page 8: Front Panel And Button Description

    5. Front panel and button description Item Description Mode key Down key Up key Thermocouple socket Meas. key...
  • Page 9 Item Description Infrared lens Multi-beams Battery cover...

  • Page 10: Display Overview

    6. Display overview Default screen Multi-Beams: spicify the apprximate measurement area for better targetting 10 EN...

  • Page 11: Menu Overview

    7. Menu overview • Press Mode key (2) for scrolling more display function as follows. • Here will show the emissivity data. (The default emissivity is 0.95.) • Press Mode key (2), then press Up key (4) or Down key (3) to set the emissivity, then press Mode key (2) to confirm it.

  • Page 12: Measurement Settings

    8. Measurement settings • In E, MAX, MIN, DIF, AVG mode: Press Up key (4) for LOCK mode ON/OFF. The lock mode is particularly useful for continuous monitoring of temperatures for up to 60 minutes. • Press Down key (3) for C or F transferred.

  • Page 13: Maintenance

    To reset it, turn the instrument off, remove the battery and wait for a minimum of one minute, reinsert the battery and turn on. If the error message remains please contact SKF. ‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the measurement range.

  • Page 14: Notes

    10. Notes How does Infrared work? Infrared thermometers measure the surface temperature of an object. The unit’s optics sense emitted, reflected, and transmitted energy, which is collected and focused onto a detector. The unit’s electronics translate the information into a temperature reading, which is displayed on the unit.

  • Page 15: Emissivity Table

    11. Emissivity table Substance Thermal Substance Thermal emissivity emissivity Asphalt 0,90 to 0,98 Cloth (black) 0,98 Concrete 0,94 Human skin 0,98 Cement 0,96 Leather 0,75 to 0,80 Sand 0,90 Charcoal 0,96 (powder) Earth 0,92 to 0,96 Lacquer 0,80 to 0,95 Water 0,92 to 0,96 Lacquer (matt)
  • Page 16 | mapro.skf.com | skf.com/mount ® SKF is a registered trademark of the SKF Group. © SKF Group 2020 MP5494 · 2020/06...
