- Page 1 ® PRO-12GSDI4P 1x4 12G/6G/3G/HD/SD-SDI Distribution Amplifier with Reclocking User‘s Guide Made in Taiwan...
- Page 2 ® PRO-12GSDI4P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Please see the following table for 12G SDI output pairing. Table #1 Output Port Pair A Output 1 & 2 Pair B Output 3 & 4 3. Package Contents • 1x PRO-12GSDI4P • 1x BNC 75 ohm terminator • 1x 5V power adapter • 1x User Manual...
- Page 4 ® PRO-12GSDI4P 4. Specifications Item Description SDI standard SD/HD/3G/6G/12G-SDI Multi-Rate Support Auto detection of SD, HD, 3G, 6G or 12G Signals SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, SDI Compliance DVB-ASI, ST-2081(6G), ST2082(12G) 1.485 / 2.97 / 5.94 / 11.88 Gbps...
- Page 5 6. Hardware Installation 1. Connect an SDI camera or other SDI devices to the PRO-12GSDI4P’s SDI input. 2. Connect SDI sink devices (e.g. monitors or video processors) to the PRO-12GSDI4P’s outputs. 3. Plug the power adapter into a reliable power outlet.

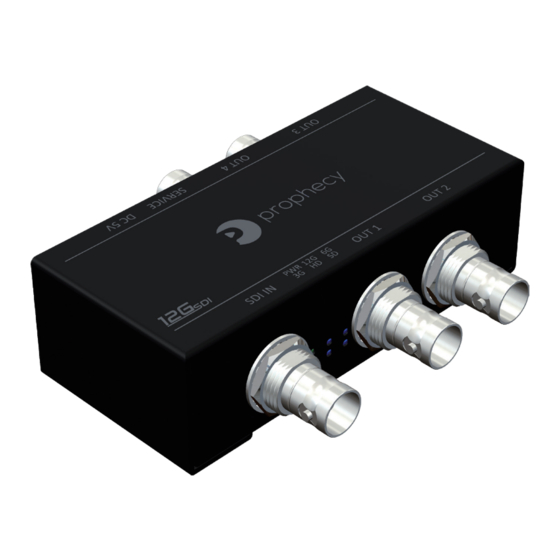

- Page 6 ® PRO-12GSDI4P 7. Panel Description Front Panel Rear Panel 1. 12G/6G/3G/HD/SD-SDI output 2. Micro-USB for F/W update 3. 5V DC power jack 4. 12G/6G/3G/HD/SD-SDI input 5. Power LED indicator 6. 12G Signal LED indicator 7. 6G Signal LED indicator 8. 3G Signal LED indicator 9.
- Page 7 Also, the technical information contained herein regarding the PRO-12GSDI4P features and specifications is subject to change without further notice.
- Page 8 ® Thank you for choosing gofanco www.gofanco.com Dec, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
