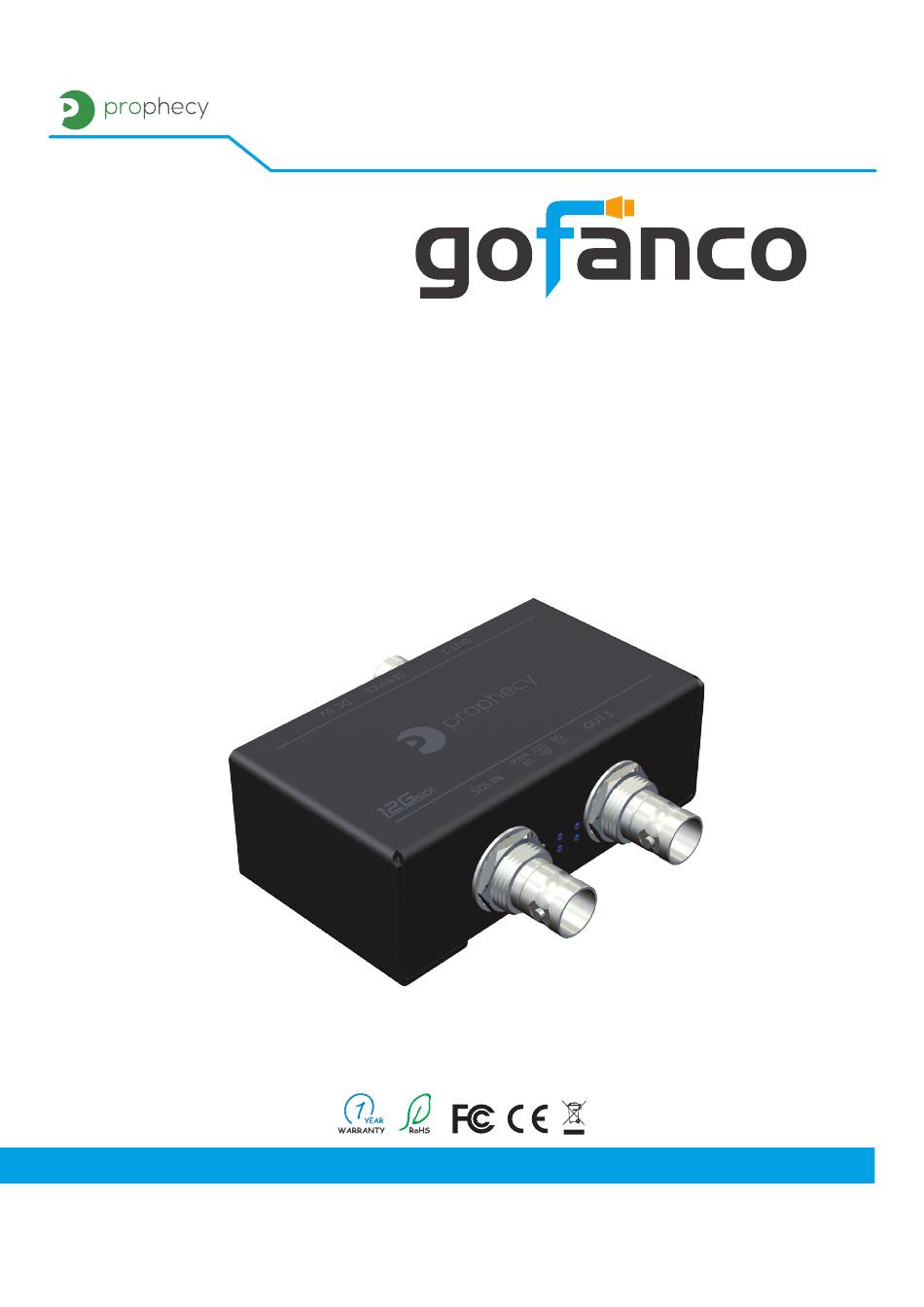

- Page 1 ® PRO-12GSDI2P 1x2 12G/6G/3G/HD/SD-SDI Distribution Amplifier with Reclocking User‘s Guide Made in Taiwan...
- Page 2 ® PRO-12GSDI2P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents
1694A) up to 180m (594ft)@3G, 100m (330ft)@6G and 70m(230ft) @12G • Reclocking SDI signals for cascading and thus longer transmission • Inter-locked power supply for better fixedness 3. Package Contents • 1x PRO-12GSDI2P • 1x 5V power adapter • 1x User Manual... -
Page 4: Specifications
® PRO-12GSDI2P 4. Specifications Item Description SDI standard SD/HD/3G/6G/12G-SDI Multi-Rate Support Auto detection of SD, HD, 3G, 6G or 12G Signals SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, SDI Compliance DVB-ASI, ST-2081(6G), ST2082(12G) 1.485 / 2.97 / 5.94 / 11.88 Gbps... -
Page 5: Connection Diagram
6. Hardware Installation 1. Connect an SDI camera or other SDI devices to the PRO-12GSDI2P’s SDI input. 2. Connect SDI sink devices (e.g. monitors or video processors) to the PRO-12GSDI2P’s outputs. 3. Plug the power adapter into a reliable power outlet. -
Page 6: Panel Description
® PRO-12GSDI2P 7. Panel Description Front Panel Rear Panel 1. 12G/6G/3G/HD/SD-SDI output 2. Micro-USB for F/W update 3. 5V DC power jack 4. 12G/6G/3G/HD/SD-SDI input 5. Power LED indicator 6. 12G Signal LED indicator 7. 6G Signal LED indicator 8. 3G Signal LED indicator 9. - Page 7 Also, the technical information contained herein regarding the PRO-12GSDI2P features and specifications is subject to change without further notice.
- Page 8 ® Thank you for choosing gofanco www.gofanco.com Dec, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
