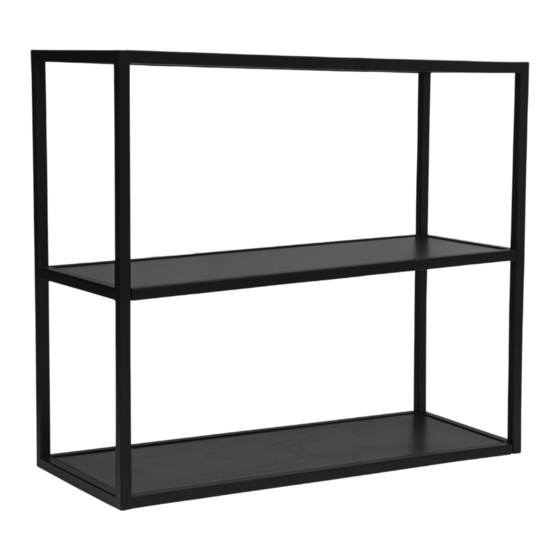

Kaboodle W-51643 Assembly Instructions

step 2
Follow these
instructions to
build and attach
your steel frame
shelves.

Things you need to know

• All cabinets will need to be attached to the wall using a
minimum of 8 gauge 65mm screws if you have a stud wall.
If your wall is concrete, brick or another surface ask your
hardware specialist for advice on the right fixing method.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.

Hardware included

A B
70mm
wood screws x 10

Tools you will need

To put your kaboodle steel frame shelving together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 3.5mm HSS drill bit
• 4.5mm HSS drill bit
Spirit level
(900mm recommended)
B C
12mm 32mm
bolt x 12 tek screws x 4
Tape
measure Pencil
Wall fixing Cabinet Stand
(If necessary) Recommended
wall steel frame shelving
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: info@kaboodlegroup.com.au.
D
32mm
wood screws x 8
Clamps Safety
(quick release) gear
Phillips head
srewdriver
Adjustable Stud
square finder
W-51643
W-51644
