Kaboodle W-51612 Assembly Instructions

step 1
Follow these
instructions to
build and attach
your cabinet.

Things you need to know

• All cabinets will need to be attached to the wall using a
minimum of 8 gauge 65mm screws if you have a stud wall.
If your wall is concrete, brick or another surface ask your
hardware specialist for advice on the right fixing method.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.
• For extra strength use exterior woodworking glue
when assembling cabinets.
• To help identify panels, counter sunk holes always
face outwards.

Hardware included

A B
50mm
wood screws x 70 wood screws x 30

Tools you will need

To put your kaboodle kitchen cabinets together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 4mm drill bit
• Number 12
countersinking drill bit
Spirit level
(900mm recommended)
C
28mm adjustable
legs x 4
Tape
measure Pencil
Wall fixing
(If necessary)

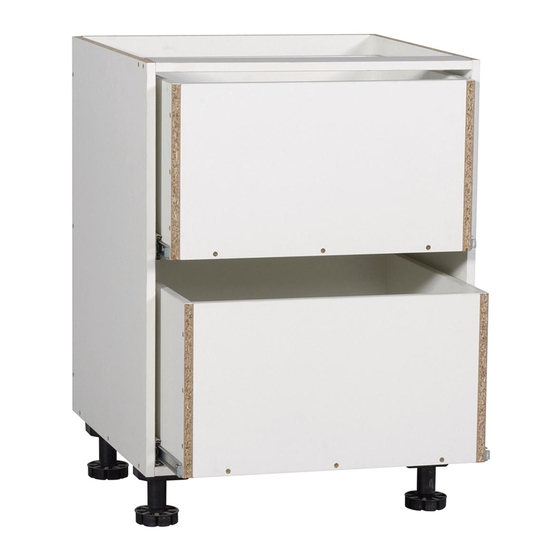

600mm 2 drawer base cabinet
• All holes that aren't already pre-drilled should be drilled prior
to screwing using a No 12 countersinking drill bit.
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: info@kaboodlegroup.com.au.
D
stick on end
caps x 8
Clamps
(quick release)
E
90° angle
bracket x 2
Safety Adjustable
gear square
F
14mm
screws x 4
65mm
wood screw
W-51612
Ver. 9 p. 1
