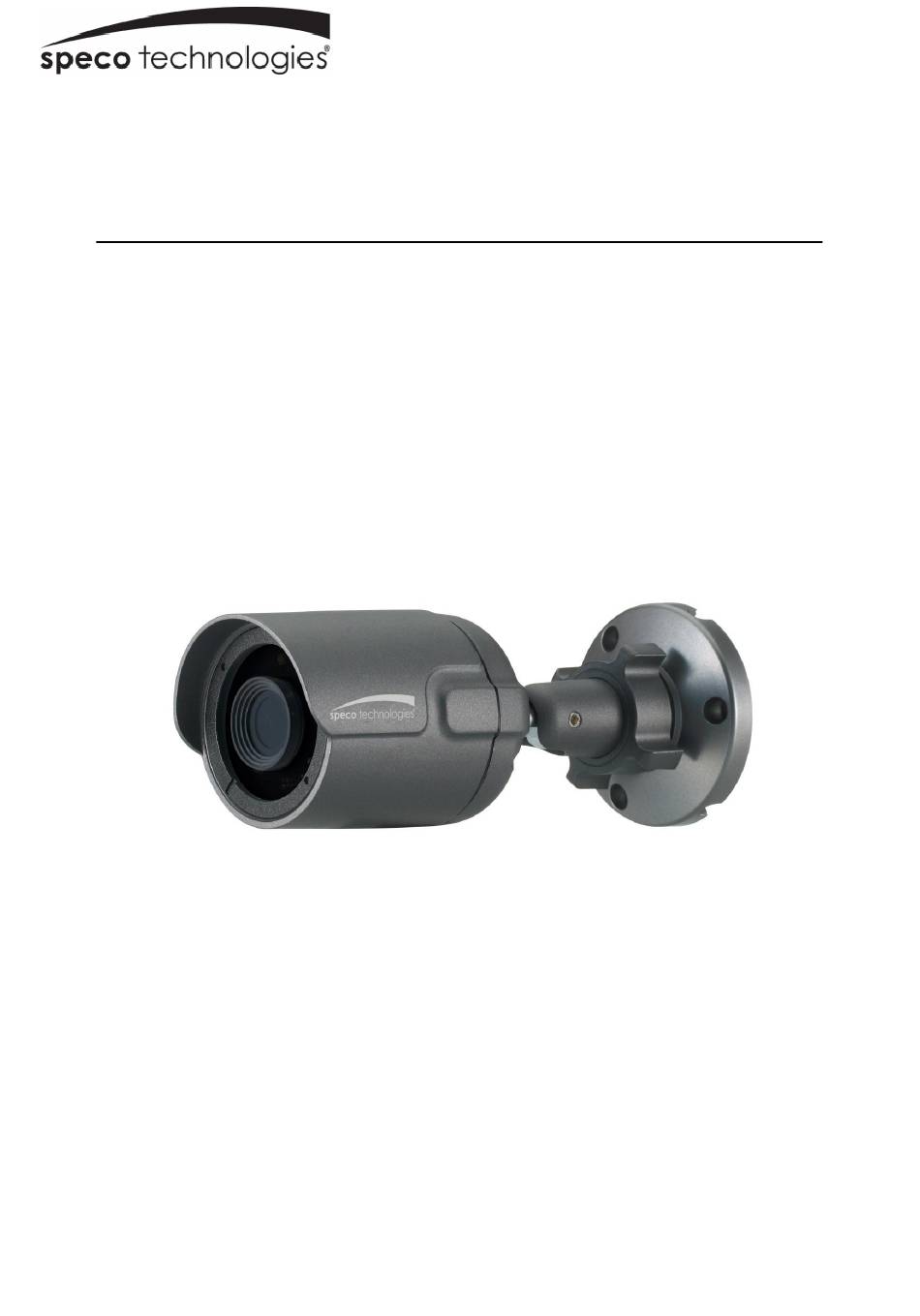

- Page 1 Intensifier® Technology IP Bullet Camera QUICK INSTALLATION GUIDE O2iB9 Please read this manual carefully before installation and operation of the product.
- Page 2 Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. CAUTION...
-
Page 3: Limitation Of Liability
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and have it checked by your authorized dealer before reusing. Avoid installing the camera at extremely hot or cold places. If you are not a certified person, never try to dismantle the camera. To avoid electric shock, never remove the screws or covers. -
Page 4: Specification
Perfect 3-Axis mechanism inside Triple Streaming of H.264 and M-JPEG Up to 30 frames per second at all image resolutions Supports image resolutions Full HD (1920 x 1080) Integrated motion detection with pre- and post-alarm image / video buffering ... -
Page 5: Name And Function Of Each Part
Consumption Net Weight 520g LED's Power, Network Connection Dimension(mm) 185(W) x 76(Ø) Including Bracket Operating -10 degree ~ 50 degree Celsius (-14F ~ 122F) Temperature Environment Storage -20 degree ~ 60 degree Celsius (-4F ~ 140F) Temperature Software Included Software IP Scanner (Windows only) Package Package Contents... -
Page 6: Name And Function
Top Rubber x 1 Junction Box x 1 Sponge x 1 Tapping screw (Ø4 x 30) x 4 Plastic anchor x 4 Screw PH (M4 x 8 ) x 3 Screw PH (M4 x 12) x 4 2.2 Name and Function ITEM DESCRIPTION Power Connector... - Page 7 LAN Cable Power Ceiling Tile Plastic anchor x 3 (B) Bracket nut (A) L-Wrench Tapping screw (Ø4 x 30) x 3 Ceiling_Junction Box Ceiling Tile Plastic anchor x 4 Junction Base Sponge Junction Box Assembly Tapping screw (Ø4 x 30) x 4 Top Adapter Plate Top Rubber Finish with...
-
Page 8: 3-Axis Adjustment
① Drill three screw holes on the wall plate to fix three plastic anchors (supplied) in the holes. ② Fix the plastic anchors in the holes. ③ Position the bracket on the screw points. ④ Fix the bracket by tightening the screws. ⑤... - Page 9 LAN Switch Router Internet Remote Access Local Access E-Mail / FTP 3.3.2 Connecting to the Network Open up IP Scanner. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. The device is set to DHCP mode by default.
-
Page 10: Dimension (Mm)
Enter the IP address here 2) Enter the user name and password when prompted. 3) Default user name is admin and password is 1234. 4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video from Internet Explorer.
