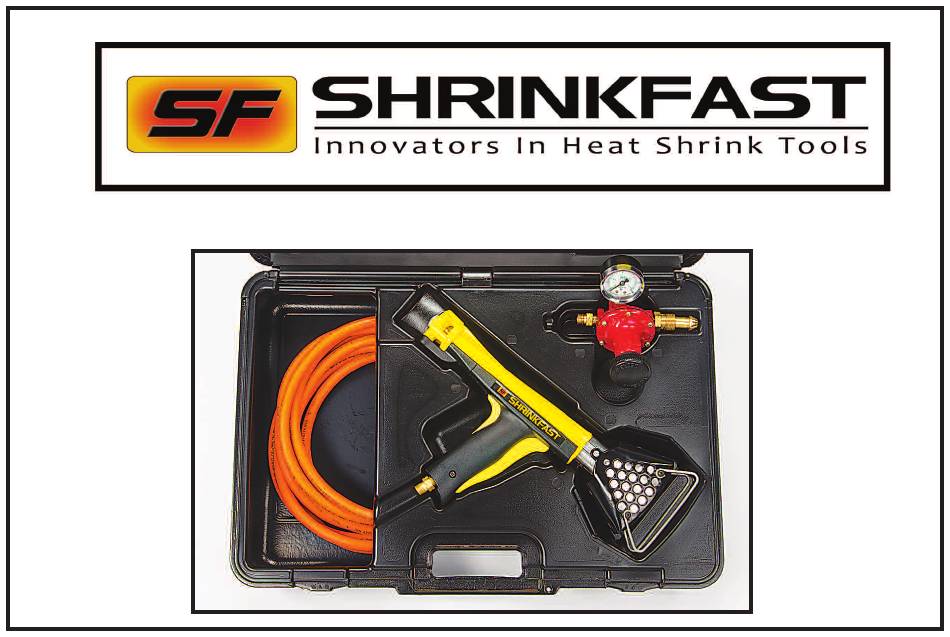

  • Page 1 Operating, Field Maintenance, and Parts Manual Model MZ ® Metric CE...
  • Page 2 Thank you for choosing Shrinkfast products. Please visit us on the web at www.shrinkfasttools.com for our latest product information and updates. Customer Service Issues: Before returning any Shrinkfast product, please call: (603) 863-7719 or email at info@shrinkfasttools.com SAVE THIS MANUAL FOR FUTURE REFERENCE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL SAFETY PRECAUTIONS & SAFETY CERTIFICATION ......pages 2-4 REGULATOR OPERATION & MAINTENANCE ............pages 5-7 STARTING THE HEAT TOOL .................... page 8 REGULATOR MAINTENANCE & SAFETY FEATURES ......... pages 9-10 EXCESS FLOW DEVICE ..................... pages 9-10 CHOOSING THE CORRECT PROPANE TANK ............pages 11-12 TANK PRESSURE, TEMPERATURE &...

  • Page 4: General Safety Precautions & Safety Certification

    GENERAL SAFETY PRECAUTIONS - READ ALL INSTRUCTIONS BEFORE OPERATING THIS HEAT TOOL • This heat tool can only be used with vapor withdrawal propane tanks (BBQ Grill Style) and should never be used with liquid withdrawal tanks (Fork Truck Style). See Page 11 of this User’s Manual for additional information on the proper tank style.
  • Page 5 GENERAL SAFETY PRECAUTIONS • When working with any type of heat or open flame, always keep a fire extinguisher close by. • Always were safety glasses and gloves (flame retardant or leather is suggested) when shrink wrapping. Never obstruct or cover the air inlet at the back of the heat tool. If the air flow is reduced the heat tool will not work properly.
  • Page 6 Once heat is applied to the shrink film, it will continue to shrink even after the heat is moved away from the area. • Never modify the tool in any way and use only Shrinkfast replacement parts. • Never operate in a basement or closed in, non-ventilated area or on an area that you cannot see.

  • Page 7: Regulator Operation & Maintenance

    REGULATOR OPERATION & MAINTENANCE Adjustable Hand Wheel 0-2.0 bar Pressure Gauge – Adjusts bar Setting of the Regulator POL – Attaches to Hose Adapter – Attaches the Propane Tank to the Supplied 7.62 meter Hose Regulator Technical Overview: • The MEGR-6120 is a high capacity, bar to bar, industrial gas regulator. It is designed to conform to UL ®...
  • Page 8 This is a variable regulator assembly and the heat tool will operate properly between 1.4 bar and 2.0 bar. The pressure can be changed by loosening the hex nut located under the black, round hand wheel on the regulator assembly and then turning the hand wheel to the desired pressure. However, the optimum and factory recommendation is that you do not adjust the pressure and keep the regulator set at the factory setting of 1.5 bar.
  • Page 9 2.Connect one end of the supplied 7.62 meter hose to the hose adapter on the regulator and the other end of the hose to the heat tool. Tighten all fittings with the supplied wrench (left handed threads, so tighten counter clockwise). 3.Open the propane tank valve and check for any leaks by spraying a soapy water mixture on the fittings.

  • Page 10: Starting The Heat Tool

    STARTING THE HEAT TOOL 1.Depress the yellow safety that sits in the palm of your hand. If you do not depress the safety first, you will not be able to pull the trigger with your finger tips and ignite the heat tool. 2.With the safety depressed, slowly pull the trigger with your fingertips so you first hear a slight “hissing”...

  • Page 11: Regulator Maintenance & Safety Features

    Regulator parts showing wear should be replaced as necessary. Contact your local distributor or Shrinkfast directly for descriptions and part numbers. IMPORTANT SAFETY FEATURE: Inside the POL fitting on the Regulator Assembly there is a safety featured called the “Excess Flow Device”.
  • Page 12 • Once the fuel has filled the entire hose and the regulator gauge reaches 1.5 bar, the Excess Flow Device reopens and the heat tool is ready for operation (you will hear an audible “click” from the POL when the pressurization is complete). •...

  • Page 13: Choosing The Correct Propane Tank

    CHOOSING THE CORRECT PROPANE TANK • There are two types of propane tanks commonly available: A. Correct: Vapor withdrawal—Use this style (exactly the same as a BBQ grill tank) B. Not Correct: Liquid withdrawal—Do not use this style (used on fork trucks) WARNING: Using a liquid withdrawal (fork truck) propane tank will clog the orifice in the heat tool and result in an extremely long and dangerous flame.
  • Page 14 CHOOSING THE CORRECT PROPANE TANK (CONTINUED) • Propane tanks are available in a variety of sizes. The most popular tank sizes: • 9.07 kg tank similar to a BBQ propane tank for smaller applications. • 18.14 kg tanks are commonly used in most industrial applications. The weights listed on the above tanks are in lbs.

  • Page 15: Tank Pressure, Temperature & Operation

    Temperature of Propane TANK PRESSURE, TEMPERATURE & OPERATION • Tank pressure depends on the temperature of the tank. At room temperature (22.22º C the pressure in a full tank is 7.58 bar and drops to 1.5 bar at -17.77º C. ) Propane Temperature (degree C) A pressure relief valve vents propane vapor whenever the tank pressure exceeds 17.23 bar and prevents excess tank pressure.
  • Page 16 However, if you are ever in doubt regarding the safety or operation of your heat tool, shut off the tank and contact your authorized Shrinkfast distributor or Shrinkfast directly.

  • Page 17: Ventilation Requirements

    VENTILATION REQUIREMENTS WHEN OPERATING HEAT TOOL WARNING: During operation, the heat tool consumes propane and air and produces carbon dioxide, carbon monoxide (CO), and water vapor. Prolonged exposure to Carbon Monoxide is lethal and adequate ventilation must be provided if the heat tool is to be operated indoors. •...

  • Page 18: General Information On Shrink Film & Shrink Bags

    GENERAL INFORMATION ON SHRINK FILM & SHRINK BAGS Shrink Wrap (#4 LDPE): • The shrink wrap is manufactured in multiple colors and is typically a 6 or 7 mil, low density polyethylene (#4 for recycling purposes). What makes this material different than construction plastic sheeting is that it contains shrinking resins, UV inhibitors, anti-brittling compounds, and strengtheners so that it will not rip or tear.
  • Page 19 want the film cover to reach. Measure up the side, over the top, and down the opposite side to the lowest point. Add one foot to this number to accommodate heat welds and this will indicate how wide your shrink wrap should be. This process will determine the square footage of the object being shrink wrapped.

  • Page 20: Shrink Wrapping Techniques (Pallet Bags & Odd Shaped Objects)

    MEASURING FOR A SHRINK PALLET BAG 1) Measure the length, width and height of the pallet to be covered. 2) Determine the length (L) of the bag, by adding 5.08 cm to the length of the pallet. 3) Determine the Width (W) of the bag, by adding 5.08 cm to the width of the pallet.
  • Page 21 Shrink the Bottom of the Pallet First: Shrink Wrapping 1. Ignite the heat tool and hold it approximately 15 - 20 cm from a Pallet Bag: the film surface. 2. Move once around the entire pallet applying the heat to the bottom edge of the bag and using the air velocity to blow it under the pallet.
  • Page 22 SHRINK WRAPPING TIPS • During operation, always have the heat tool moving in a side to side motion. The most important fact to keep in mind is that heat only softens the film. The greatest amount of shrinking occurs as the film cools. •...
  • Page 23 PATCHING HOLES IN SHRINK FILM • MISTAKES HAPPEN! Occasionally holes will appear in the shrink film, but they can be easily repaired. Holes in the film can be patched by laying a square piece of shrink film over the hole and applying heat around the edges, thus heat welding the patch to the bag.
  • Page 24 SHRINK WRAPPING LARGE OR ODD SHAPED LOADS • Shrink wrapping is a versatile process that can be employed in a variety of applications. For example, shrink wrappers routinely wrap irregular objects such as industrial equipment. Objects, which are too big to fit under a bag, can be wrapped by using several sheets of shrink film joined together if the following the precautions are observed: •...

  • Page 25: Operating Overview

    OPERATING OVERVIEW...

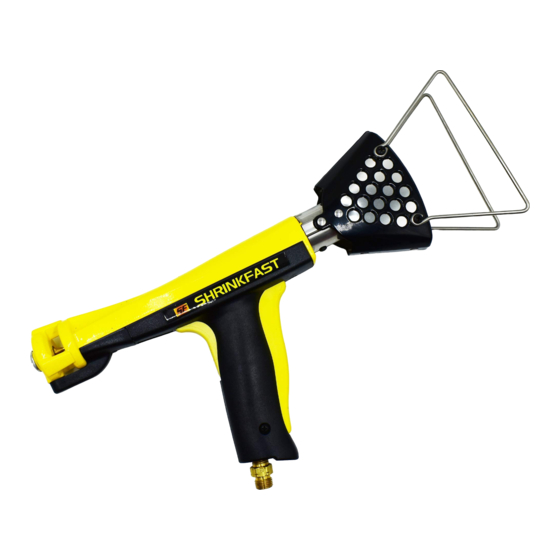

  • Page 26 OPERATING OVERVIEW PART AND FUNCTION A. Safety: Prevents accidental gas release B. Trigger/Igniter: Activates gas valve and ignition C. Valve: Opens fuel flow D. Fuel Line: Carries fuel to orifice E. Filter Holder: Holds filter screen to prevent clogging F. Inlet: Connects fuel line to the orifice G.

  • Page 27: Mz Part Number And Description

    MZ PART NUMBER AND DESCRIPTION...
  • Page 28 MZ PART NUMBER AND DESCRIPTION LEFT HANDLE 4146-028 Item Description Part Number Needed Number FUEL LINE 4146-041 CHANNEL 4146-025 RIGHT HANDLE 4146-029 LEAD THROUGH 4146-030 LEAD THROUGH ORING (N0674 2-011) 4146-006 4146-11M METRIC HOSE ADAPTER PUMP BODY 4146-023 SAFETY 4146-009 6-32 X 1/4 PHILLIPS HEAD SCREW 4146-010 METRIC VALVE SUB ASSEMBLY...
  • Page 29 4146-044 INLET 4146-027 8-32 X 1 1/8 PHILLIPS HEAD SCREW 4146-026 FLAME ARRESTOR SCREEN 4146-055 8-32 x 3/8 PHILLIPS HEAD SCREW 4146-060 FILTER HOLDER ORING (N0674 2-014) 4146-070 SHRINKFAST LABEL 4146-072 MZ LABEL 4146-074 MZ NAMEPLATE 4146-076 WIRE GUARD 4146-065...

  • Page 30: Assembly And Disassembly

    ASSEMBLY AND DISASSEMBLY Filter Holder Cleaning: 1. Using a flat blade screw driver remove # 22 Filter Holder Assembly – including #29 Oring, #23 Filter Spring, #24 Filter Screen 2. Lubricate Oring with Vaseline or Oring lubricant and clean off the screen Side angle view of the back of the heat tool with the Filter Holder Assembly (#22) removed from the Inlet (#25).
  • Page 31 3. Using compressed air blow any debris away from Filter Screen and then direct the compressed air down the back side of the heat tool through Inlet (#25) and the Pump Body (#8). View from the back of the heat tool looking inside the Inlet (#25)
  • Page 32 Cleaning Heat Tool with Compressed Air: 1. Using a Phillips head screw driver, remove Screw (#10) and pull off the Combustor Assembly (#16). Remove #10 Screw Remove # 16 Combustor Assembly...
  • Page 33 2. Using compressed air, blow any debris out of the Pump Body (#8) and then direct the compressed air down the back side of the Combustor Assembly (#16). View looking from the back of the Combustor Assembly (#16) and the Flameholder Assembly (#14)

  • Page 34: Heat Tool Service Instructions

    HEAT TOOL SERVICE & REPAIR INSTRUCTIONS: • In the event that your heat tool requires servicing or repair work performed, Shrinkfast and/or your distributor can provide a parts list and assembly diagram as a reference tool only. • Neither Shrinkfast nor the distributor make any representation or warranty of any kind to the buyer that he or she is qualified to replace any parts of this or any other Shrinkfast product.

  • Page 35: Daily Heat Tool Inspection

    DAILY HEAT TOOL INSPECTION • Before turning on the heat tool, visually inspect the hose for any cracks or breaks that can cause a propane leak. • When you turn on the gas at the propane tank, make sure the regulator gauge pressurizes to 1.5 bar before firing the heat tool and then leak check all fittings and connections.

  • Page 36: Monthly Heat Tool Inspection

    MONTHLY HEAT TOOL MAINTANENCE • Using compressed air, remove the Assembly Screw #10 and then pull off the combustor assembly (part # 16 in assembly diagram) and clean out any debris inside the combustor and flameholder assemblies. • Using compressed air, clean out the main body of the heat tool (part # 8). •...

  • Page 37: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Safety and/or trigger are Depress the safety first, and Gun will not ignite then pull the trigger to ignite. not fully depressed. Trigger is pulled too quickly. Squeeze the trigger slowly to Trigger is pulled to quickly. ensure the propane has entered the combustor before firing.
  • Page 38 Problem Probable Cause Remedy Turn on propane tank valve and wait 10 seconds or until the needle on the The POL excess check regulator has reached the factory setting Gun will not ignite valve has not fully opened. of 1.5 bar. An audible “click” will be heard when the hose has fully pressurized with gas.

  • Page 39: Technical Specifications

    TECHNICAL SPECIFICATIONS OUTPUT CHARACTERISTICS Distance / cm Temperature / C Velocity / M / min 15 cm 388º C 182 m 30 cm 205º C 110 m 46 cm 140º C 77 m Fuel Source Propane Only (Vapor Withdrawl) Operating Pressure 1.5 bar Heat Capacity 15 kw@1.5 bar...
