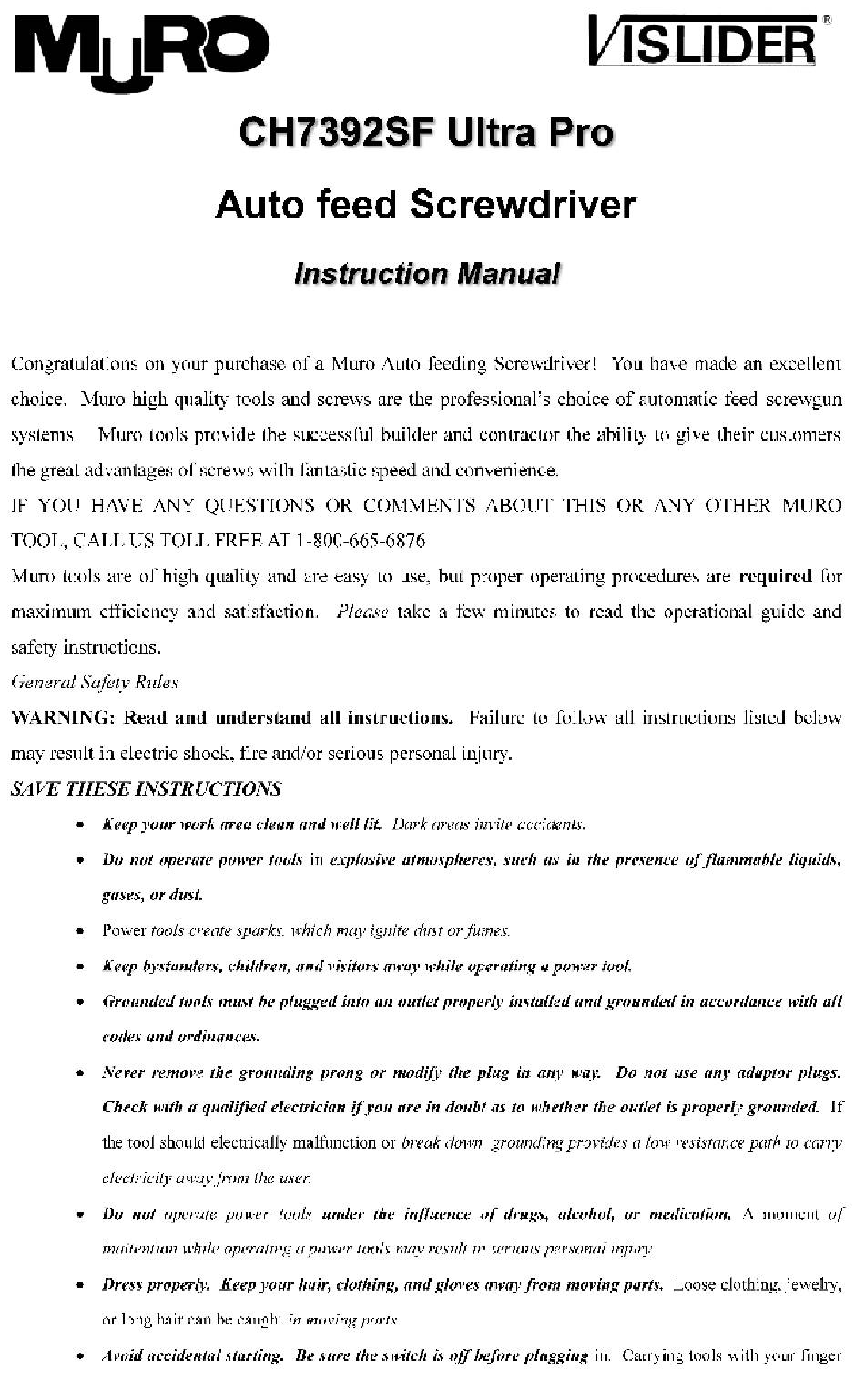

Summary of Contents for MURO Vislider CH7392SF Ultra Pro
- Page 2 on the switch or plugging in a tool that have the switch on invites an accident. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations. ...
- Page 3 Use only accessories and screws that are recommended by Muro for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool. Keep your tool clean; remove dust and dirt by vacuuming or carefully blowing out regularly. Other tool service must be performed only by qualified repair personnel: Service or maintenance performed by unqualified personnel could result in a risk of injury.
- Page 4 Fig1 Next put a bit into the adaptor socket. Pull back the sleeve toward the motor, which allows the bit to be inserted or withdrawn. Release the sleeve after inserting bit, sleeve will return, bit will now be locked into the adaptor. Wiggling the bit will result in a small amount of movement, which is normal. Fig 2 Fig 3 The clamping ring must be rotated until it is almost all the way unclamped (Fig 4) before inserting onto...
- Page 5 Loading Screws Ensure the screws are loaded into the CH7392SF with the plastic strip facing like the screw diagram on the side of the nose. Screw heads always go in the Top slot, plastic towards the diagram, like the photo below and push the strip so that the first screw clicks fully into the barrel. Note that the screws must be inserted properly for the tool to work.
- Page 6 Adjusting the screw depth With the screwdriver pointing down, turning the adjusting wheel counter-clockwise sinks the screw heads deeper; turning it clockwise reduces the depth of the screw head 2mm (.08in) per full turn. Fig 8 Fig 9 If you experience excessive bit wear Replace the bit and try to apply more down pressure when driving screws.
- Page 7 Caution! Use of pliers, etc, may damage the feed lever! Ensure the feed latch is held out of the way as shown above Fig 10 when removing screws or unjamming. Ensure plastic strip is in good condition before replacing screws. Plastic segments holding screws should break clean, with one break per screw as screws are driven.
- Page 8 Bits are consumable and must be replaced if worn badly, bits are specially designed for the Muro auto feed screwdriver. P/N SQR28118 and Muro square drive screws will give the best service life. Worn out bits may cause poor countersinking or damage the screw heads.
- Page 9 Ver. 1.21...
