192609 & 193609
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not damaged
during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and water solution
applied on damp cloth. Cloth should not be excessively wet. Polish finish with soft cloth and an industry
recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for
stain residue and rough surfaces and also check for staples or nails left after removing the packaging material.
The manufacturer will not be held responsible if preventative steps are not taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any assembly parts
or hardware. Read the instruction sheet and parts list carefully. Remove all staples and screws used for
packaging carefully using pliers and or screwdrivers to prevent injury and scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should
be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or
cause injury. Always check to be sure all hardware on this list and the above mentioned components is
attached to the furniture properly and kept tightened at all times.
PARTS LIST:
#
Description
A
Chair Back
C
Left Leg
E
Left Arm
G
Side Stretcher
Assembly Procedure:
Caution: Please do not over-tighten bolts during assembly.
Note: First read the chair leveling instructions. This is an additional assembly instruction sheet found
inside the carton.
Step 1: Place all chair parts on a soft and smooth surface.
Step 2: Assemble chair back (A) to back rail of seat frame (B) using #3 (bolt + lock washer + flat
washer).
Step 3: Assemble rear corner blocks of seat frame (B) with back post using #2 (bolt + lock washer +
flat washer).
Step 4: Assemble front stretcher (H) to left leg (C) and right leg (D) using screw #4, tighten them
completely. The front legs are marked left & right.
Step 5: Assemble side stretchers (L&R) (G) to chair back (A) using screw #4. Don't over tighten.
Step 6: Assemble front corner blocks of seat frame (B) with right leg (D) and left leg (C) using
#1 (bolt + lock washer + flat washer). Then tighten all bolts completely using wrench #5. At
the same time, attach side stretchers (G) to left leg (C) and right leg (D) using screw #4.
Tighten Screws with screwdriver.
INSTRUCTION SHEET
Qty.
1pc
1pc
1pc
4pcs
(L&R)
GOOD, AFFORDABLE, SMART DESIGN.

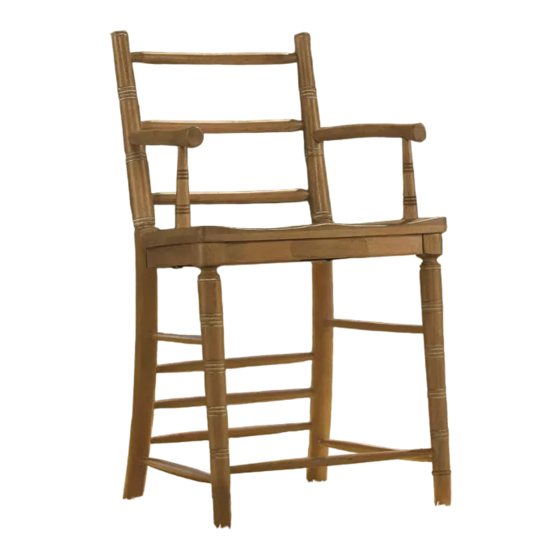

Corrie's Counter Height Chair
#
Description
B
Seat Frame
D
Right Leg
F
Right Arm
H
Front Stretcher
Qty.
1pc
1pc
1pc
1pc
