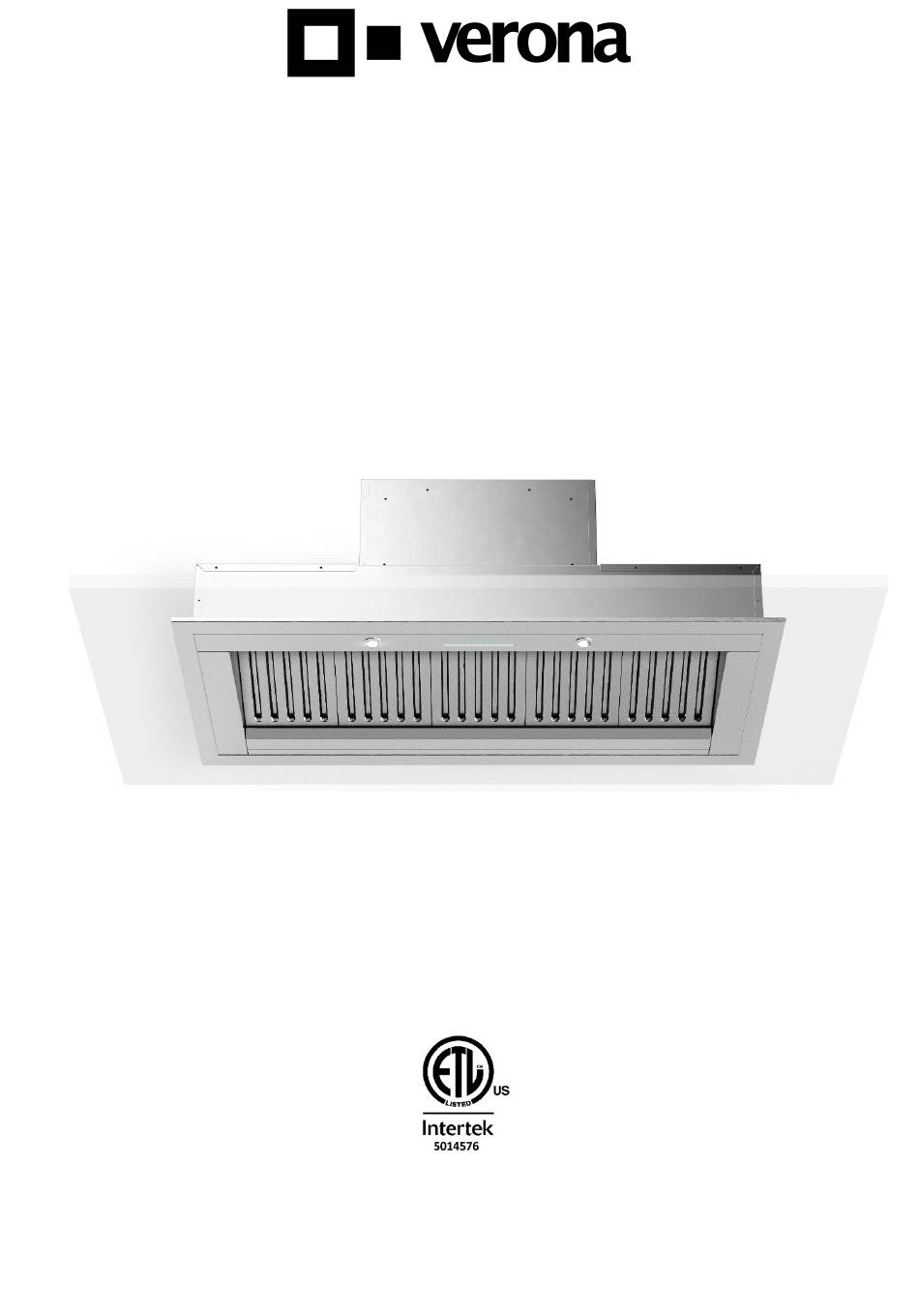

Installation, OPERATING AND MAINTENANCE
INSTRUCTIONS FOR COOKER HOODS MODEL:
INSERT
120V - 60HZ
UL 507
Cod. 395577
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Verona INSERT
Summary of Contents for Verona INSERT
- Page 1 INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOODS MODEL: INSERT 120V - 60HZ UL 507 Cod. 395577...
- Page 2 NGLISH INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOODS: MOD. INSERT 120V – 60HZ READ AND SAVE THESE INSTRUCTIONS WARNINGS CAUTION: Automatically Operated Device – To Reduce The Risk Of Injury Disconnect From Power Supply Before Servicing. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
- Page 3 Prepare the furniture for the hood installation. To install the hood, refer to Fig. 4 and Fig. 5. Remove the right and left covers (Fig. 6) and the metal filters (Fig. 2) to access the anchoring brackets. Insert the hood until the snap-on side supports are hooked and then tighten the screws (A) to tighten the anchoring bracket. Now close the locknut (C) to complete the fixing (Fig.
- Page 4 MAINTENANCE Always disconnect the hood from the mains before carrying out any maintenance or cleaning operation. Particular attention should be paid to the metallic anti-grease filters, that are designed to trap particles of fat contained in the fumes, and to the grease collection tray underneath the metal filters, which has the function of collecting grease.
