Davis Instruments Link Isolator Kit User Manual

Link isolator kit

The Link Isolator Kit provides upgraded protection against the electrical dis-

turbances caused by ground offsets or static charges by placing an optical con-

nection between the WeatherLink

computer. Since electrical disturbances cannot travel across the optical connec-

tion, the Link Isolator Kit will help prevent lockups of the weather station con-

sole and possible damage to the console, WeatherLink, and PC. The use of the

Link Isolator Kit is highly recommended when the weather station console and

the computer are not grounded or are connected to two different grounds.

OMPONENTS

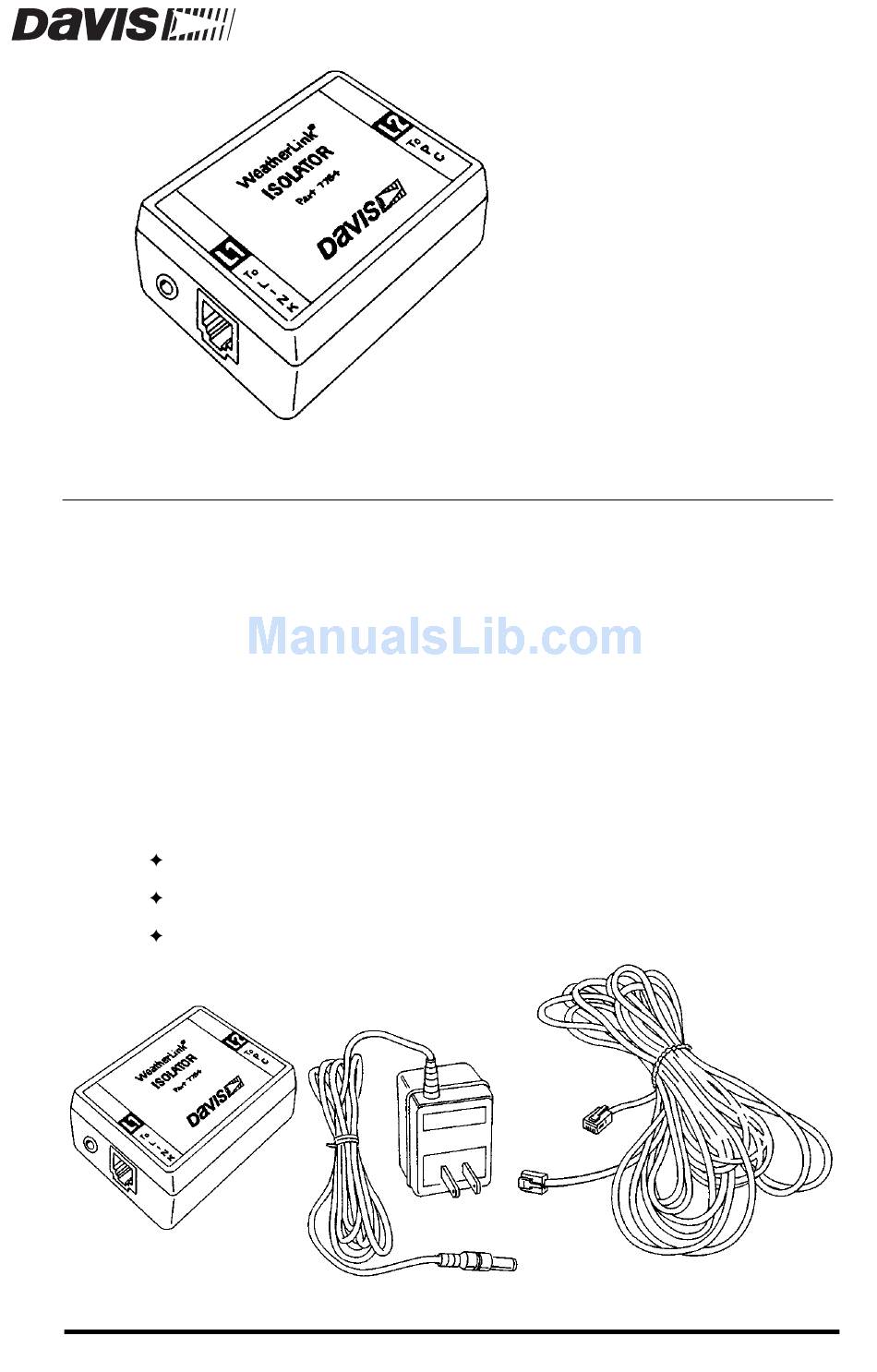

The Link Isolator Kit includes the following components. Please make sure you

have all listed components before continuing.

Link Isolator Unit

Power Adapter

40 feet (12 m) WeatherLink Cable (4-conductor)

I N K

S O L A T O R

I T

data logger (WeatherLink) and your

Product #7764

Table of Contents

Need help?

Do you have a question about the Link Isolator Kit and is the answer not in the manual?

Page 1 WeatherLink computer. Since electrical disturbances cannot travel across the optical connec- tion, the Link Isolator Kit will help prevent lockups of the weather station con- sole and possible damage to the console, WeatherLink, and PC. The use of the Link Isolator Kit is highly recommended when the weather station console and the computer are not grounded or are connected to two different grounds.
Page 2 ONNECTING THE The isolator unit provides must be connected between the WeatherLink and the PC as shown below. When connecting the isolator unit, make sure it is placed indoors and is located within 12’ (3.6 m) of a power outlet. You may not use any extension cables with the isolator unit, meaning that the WeatherLink must be within 48’...
Page 3 OWERING THE SOLATOR To power the isolator unit, connect the power adapter to the power jack located next to the L1 jack as shown below. Then plug the power adapter into a power outlet. Powering the Isolator Unit OWERING THE SOLATOR Page 3...
Page 4 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Changes or modiﬁcations not expressly approved in writing by Davis Instruments may void the user's authority to operate this equipment. Product Number: 7764...
