Ameriwood HOME 5951303COM Instruction Booklet

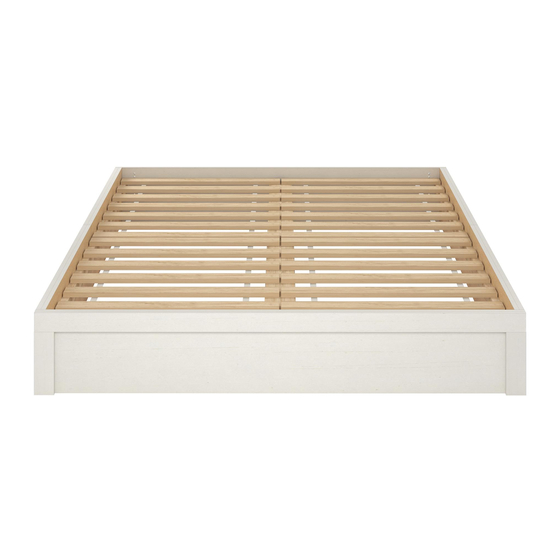

Full platform bed
Hide thumbs Also See for 5951303COM:

Advertisement

Quick Links

Download this manual
5951303COM
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can p over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345951303COM00PB
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
You
You
Tube
Tough

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5951303COM and is the answer not in the manual?

Questions and answers

Related Manuals for Ameriwood HOME 5951303COM

Summary of Contents for Ameriwood HOME 5951303COM

  • Page 1 Tough Visit: www.ameriwoodhome.com Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can p over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. Tube...

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1‐800‐489‐3351 Monday‐Friday 9am ‐ 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1‐2 ESTIMATED ASSEMBLY TIME: 1 HOUR ‐ Open your item in the area you plan to keep it to avoid excessive heavy lifting. ‐ Identify, sort and count the parts before attempting assembly. ‐ Compression dowels are lightly tapped in with a hammer. ‐ Slides are labeled with a R (right) and L (left) for proper placement. ‐ Make sure to always face the point on the top of the Cam Lock towards the  outer edge. ‐ Use all the nails provided for the back panel and spread them out equally. ‐ Back panel must be used to make sure your unit is sturdy. ‐ Do NOT use harsh chemicals or abrasive cleaners on this item. ‐ Never push, pull, or drag your furniture.   2  ameriwoodhome.com Tube...

  • Page 3: Before You Start

    Before You Start  Read through each step carefully and follow the proper order  Separate and count all your parts and hardware  Give yourself enough room for the assembly process  Have the following tools: Flat Head Screwdriver, #2 Phillips Head  Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,   please be aware to slow down and stop when screw is tight.  Failure to do so may result in stripping the screw.  Cam Lock Fastening System This Cam Lock Fastening System will be used throughout the assembly process. 3  ameriwoodhome.com Tube...
  • Page 4 Board Not actual size Headboard Footboard T5951303030 T5951303020 T5951303010 Right Side Rail R1 Right Side Rail R2 T5951303040 T5951303050 T5951303060 T5951303070 Center Slat Leg Support(2) Center Slat Side Rail Support Bar(4) Center Slat(2) Support(2) T5951303120 Connector T5951303080 T5951303090 T5951303110 T5951303100 Center Leg Support Bed Slats(4)
  • Page 5 Board Not actual size ameriwoodhome.com Tube...

  • Page 6: Part List

    Hardware Bag Reference Number : 25951303COM00PB Part List Actual Size Ø8x30mm M5 x 29mm 1 x4 2 x4 Wood Dowel Cam Bolt Cam Lock (15/13) TPB0004 TPB0001 TPB0002 Ø6.3x40mm Ø4x25mm Ø4.7x38mm 8 x40 9 x12 18 x3 Csk Screw Unitar Screw Csk Screw TPB0008 TPB0009...
  • Page 7 Hardware Bag Reference Number : 25951303COM00PB Part List Actual Size 15 x1 16 x1 Allen Key Glue TPB0015 TPB0016 31 x3 Adjustable Leg TPB0031 ameriwoodhome.com Tube Tube...
  • Page 8 STEP 1 Ø8x30 4 x4 TPB0004 Glue Pegamento Colle * raw edges are shaded ameriwoodhome.com Tube...
  • Page 9 STEP 2 M5 x 29mm 1 x4 TPB0001 No lo presione tanto ne pas serrer excesslvement * raw edges are shaded ameriwoodhome.com ameriwoodhome.com Tube...
  • Page 10 STEP 3 15 x1 30 x4 29 x4 TPB0015 TPB0030 TPB0029 * raw edges are shaded ameriwoodhome.com ameriwoodhome.com Tube...
  • Page 11 STEP 4 28 x4 9 x6 TPB0028 TPB0009 * raw edges are shaded ameriwoodhome.com ameriwoodhome.com ameriwoodhome.com Tube...
  • Page 12 STEP 5 Quick Assembly Proper orientation of CAM LOCK 2 x4 28 x4 TPB0002 TPB0028 * raw edges are shaded ameriwoodhome.com ameriwoodhome.com Tube...
  • Page 13 STEP 6 9 x6 TPB0009 * raw edges are shaded ameriwoodhome.com Tube...
  • Page 14 STEP 7 8 x20 TPB0008 * raw edges are shaded ameriwoodhome.com Tube...
  • Page 15 STEP 8 15 x1 18 x1 TPB0015 TPB0018 * raw edges are shaded ameriwoodhome.com Tube...
  • Page 16 STEP 9 28 x8 TPB0028 * raw edges are shaded ameriwoodhome.com Tube Tube...
  • Page 17 STEP 10 18 x2 15 x1 TPB0018 TPB00015 * raw edges are shaded ameriwoodhome.com Tube Tube...
  • Page 18 STEP 11 31 x3 TPB0031 * raw edges are shaded ameriwoodhome.com Tube Tube...
  • Page 19 STEP 12 8 x4 TPB0008 * raw edges are shaded ameriwoodhome.com Tube Tube...
  • Page 20 STEP 13 8 x16 TPB0008 * raw edges are shaded ameriwoodhome.com Tube Tube...

  • Page 21: Maximum Loads

    Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Maximum weight 600 lbs / 272 kgs. MAX Peso máximo 600 lbs / 272 kgs. MAX Poids maximal 600 lbs / 272 kgs.
  • Page 22 Register your product to receive the following: * New trend details ‐ sneak peek on what's new * Surveys ‐ have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased  product and leave us some feedback! We would like to extend a big "Thank You" to all of  our customers for taking the time to assemble this  Ameriwood Home product, and to give us your  valuable feedback. 22  ameriwoodhome.com Tube...
  • Page 23 Español Cubierta Delantera Este libro de instrucciones con ene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION...
  • Page 24 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ.
  • Page 25 Visitez le site Web de votre détaillant local, évaluez votre produit acheté et laissez-nous quelques commentaires ! Nous tenons à offrir un grand "Merci" à tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires précieux. Merci ameriwoodhome.com...
