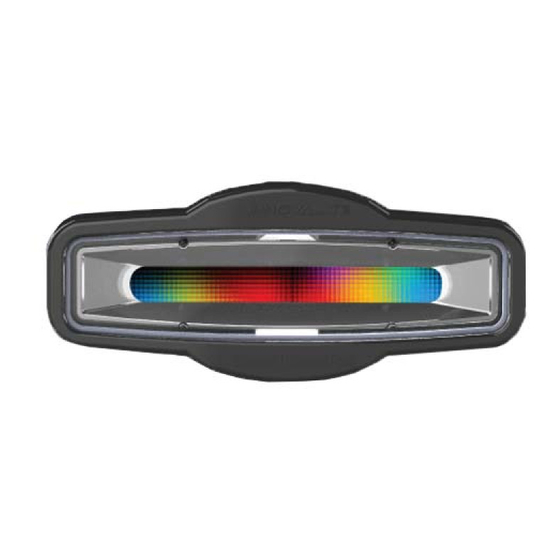

INNOVALITE 120V COLOR LED LIGHT # 9015 RGB BT
THIS GUIDE CONTAINS IMPORTANT SAFETY INSTRUCTIONS.
WARNING
Before installations, carefully
read the warnings and
installation instructions.
Risk of electrical shock.
Failure to follow the safety
instructions can result in death
or severe injury.
TABLE OF CONTENTS
A) Light installation on the step.
B) Securing power cord.
C) Before plugging in the
product.
D) Winter storage.
E) Safety instructions.
REV. 20/02/2019
SAVE THESE INSTRUCTIONS.
REQUIRED FOR SKU # 9015 RGB BT
COMPATIBLE WITH ANY INNOVAPLAS, LUMI-O OR
ACCES STEP CONTAINING THE CREST ROUNDEL
x 2
A
LIGHT INSTALLATION ON THE STEP
1) Remove the Innovaplas round cap from the step by compressing 2 tabs at the back.
For the Biltmor or Aquarius step cut the 4 tabs with a utility knife to remove the blank
cap.
2) Insert the lighting fixture from the outside of the step.
3) Fasten the treaded ring and align the fixture properly in the step before tightening.
Tighten the ring moderately.
IMPORTANT: Use supplied tie wraps to attach electric cord to a post as
shown. Do not submerge the connector the product could
be damaged.
Water-tight IP68 connectors
LIMITED WARRANTY
90 days on manufacturing defects.
Replacement only.
For Biltmor
or Aquarius
step.
Utility knife
Treaded ring
Pool step
Advertisement
Table of Contents
Related Manuals for INNOVAPLAS INNOVALITE 9015 RGB BT
Summary of Contents for INNOVAPLAS INNOVALITE 9015 RGB BT
- Page 1 Utility knife instructions can result in death 1) Remove the Innovaplas round cap from the step by compressing 2 tabs at the back. For the Biltmor or Aquarius step cut the 4 tabs with a utility knife to remove the blank or severe injury.
- Page 2 Locate your pool so that the wall is at least 10 feet from all electrical receptacles and at least 20 feet from all receptacles not protected by a GFCI. Do not use the light if the plastic lens is damaged. Do not operate the light when not fastened to the step. INNOVAPLAS 2257, Route 139 Drummondville, QC. Canada J2A 2G2 REV.
Need help?
Do you have a question about the INNOVALITE 9015 RGB BT and is the answer not in the manual?
Questions and answers
Light worked for two years. The following year, light will no longer turn on. I stored it in a dry place over the winter. No visible damage.
The INNOVAPLAS 9015 RGB BT light may not turn on after two years of use due to one or more of the following reasons:
1. Water damage: If the connector was submerged or the fixture was exposed to freezing weather without proper storage, internal components may be damaged.
2. Improper storage: If the step assembly was not fully drained and dried before winter storage, moisture could have caused damage.
3. Electrical issues: The light must be plugged into a GFCI-protected grounding-type receptacle. If the GFCI has tripped or the receptacle is faulty, the light will not work.
4. Damaged cord or plug: The power cord may have become worn or damaged over time, especially if not properly secured with tie wraps or exposed to weather.
5. Faulty light fixture: After extended use, internal components may fail due to wear or manufacturing defects.
6. Damaged lens: If the plastic lens is damaged, the light should not be used and may not function properly.
Check the power source, GFCI, and inspect the cord and fixture for visible damage.
This answer is automatically generated
