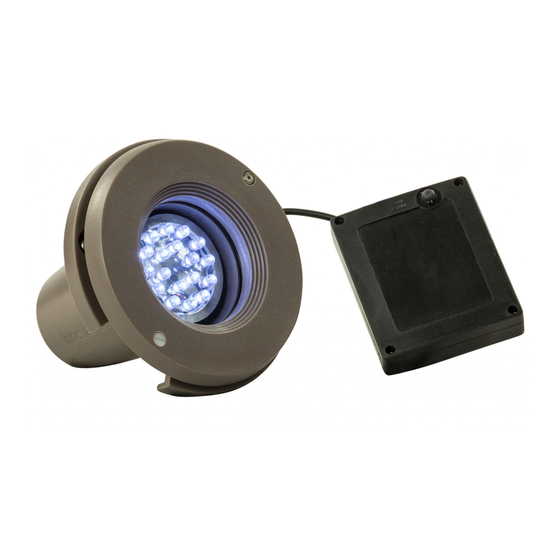

LIGHT FIXTURE # 9080
WARNING
Risk of drowning by entangle-
ment; secure the power cord
with tie wrap supplied as per
instructions.
TABLE OF CONTENTS
A) Light installation on the step.
E) Winter storage & used
battery disposal.
TOOLS REQUIRED
REV. 2013/01/16
A
LIGHT INSTALLATION ON THE STEP
1) Assemble the step according to enclosed instructions. Keep
step dry during installation.
2) Remove the Innovaplas round cap from the step by
compressing the 2 clips at the back.
3) Insert the lighting fixture from the outside of the step.
4) Pass mounting ring through front of hole and fasten using the 2 screws provided.
5) Insert light fixture by aligning the ring and turning 1/4 turn towards left.
6) Apply locking screw. Plug it in.
IMPORTANT: Use supplied tie-wraps to attach electric cord to a post as
3
(Not Included)
MANUFACTURER
shown. Do not submerge the battery pack, the product could
be dammaged.
4
REQUIRED FOR SKU # 9080
COMPATIBLE WITH ANY INNOVAPLAS STEP
Battery not
CONTAINING THE INNOVAPLAS CREST ROUNDEL
included
X4
WARRANTY
The pool Step Company
2
5
6
LIMITED WARRANTY
30 days on manufacturing defects.
Replacement only.
x 2
