Dashboard and Controls
Electronic Brake
Head Light
Riser
(Battery compartment)
Motor
Stand
Bluetooth Indicator
(Not applicable with this model)
Battery Level Indicator
Recharge warning
Power switch / headlight switch /
assistance levels switch; press and
hold for 4 seconds to turn on, and
press and hold for 3 seconds to shut
off; single press to turn on / off
headlight; quick double press to
switch the speed levels (1-2-3 cycle).
KM
Mileage Unit.

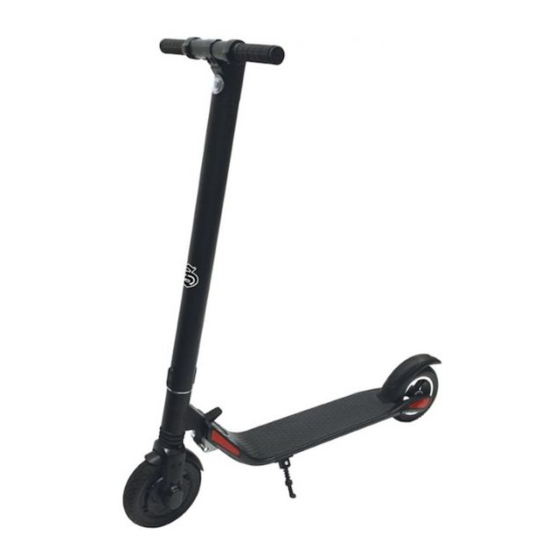

ES40 e-SCOOTER
Electronic
Accelerator
Charge Port
Folding Lever
Brake Pedal
Display Diagram
Each state and territory in Australia has a
different set of rules and regulations
pertaining to the usage of e-scooters
(including where e-scooters can legally be
used and whether e-scooters need to be
registered with relevant road traffic authority).
Any user of this scooter must ensure that they
check and abide by their local by-laws and
use responsibly. Ride with caution and always
wear a helmet and protective gear when
riding this scooter.
What's in the box
- Electric scooter
- Handlebar
- Instruction manual
- Screws x 4
- Allen key
Power Switch
Headlight Indicator
Speed/Odometer
Speed Level
Battery needs to be charged
Headlight Indicator.
Speed/Odometer.
Smaller number speed level
Battery Level Indicator
KM/h
Speed Unit
Page 1
Advertisement
Table of Contents
Related Manuals for Shogun ES40
Summary of Contents for Shogun ES40
- Page 1 ES40 e-SCOOTER Dashboard and Controls Each state and territory in Australia has a different set of rules and regulations Electronic Electronic Brake Accelerator pertaining to the usage of e-scooters Head Light (including where e-scooters can legally be used and whether e-scooters need to be Charge Port registered with relevant road traffic authority).
- Page 2 How to Assemble the Handle Bars 1. Remove the electric 3. Attach handlebar to riser using 4 4. Turn on the electronic display scooter from its box and enclosed screws as per diagram. and familiarise yourself with its unfold it. Lock riser in upright Tighten screws with included tool.
- Page 3 WARNING: THERE ARE CERTAIN RISKS RIDING A SCOOTER. WEAR AN APPROVED HELMET AND PROTECTIVE GEAR THROUGHOUT THE PROCESS AS SHOWN. Riding your e-Scooter With your scooter on check the battery level indicator. If you find that the battery is too low, please charge it immediately.
- Page 4 Specifications Table The scooter Item Number ES40 Unfolded Size 102.5cm x 43cm x 101.5cm Folded Size 101.5cm x 43cm x 35cm Net Weight 11.6KG...
