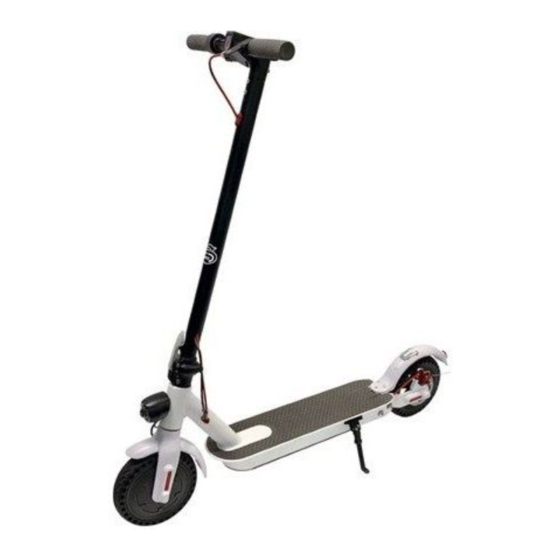

Shogun ES50 Quick Start Manual

Shogun ES50 Quick Start Manual

E-scooter

Advertisement

Quick Links

Brake Lever
Folding Switch
Front Light
Motor
Battery
compartment
Power switch. Press once to turn on. Press once again to turn lights on. Press again to
turn lights off. Press and hold for 3 seconds to turn scooter off.
Battery Level Indicator. Five-bar displayed means that the charge is between 100%-
86%; four-bar displayed means the charge is between 85%-71%, and so on. When
there is only one bar left, the power is about to run out, please recharge.
Folding and Unfolding your Scooter
FOLDING Grip riser with one hand, slide safety button on side of quick release lever upwards. Then
pull quick release forward and fold riser gently back to rear guard. Then raise the spring loaded
latch on rear guard and engage with hook on handlebar.
UNFOLDING Release hook from latch from rear guard and unfold riser to up right position. Press
quick release lever firmly to riser until it clicks into position.
WARNING: Grip the handlebars with your hands while your foot is firmly on the platform pull back
2-3 times to ensure the folding mechanism is securely locked.
ES50 e-SCOOTER
Dashboard
Electronic
Accelerator
Bell
Charge Port
Hook
Stand
Dashboard Display
(including where e-scooters can legally be
registered with relevant road traffic authority).
Any user of this scooter must ensure that they
check and abide by their local by-laws and
use responsibly. Ride with caution and always
Brake Light
Disc Brake
Each state and territory in Australia has a
different set of rules and regulations
pertaining to the usage of e-scooters
used and whether e-scooters need to be
wear a helmet and protective gear when
riding this scooter.
What's in the box
- Electric scooter
- Handlebar
- Power adapter
- Instruction manual
- Screws x 4
- Allen key
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES50 and is the answer not in the manual?

Questions and answers

Pauline Conolly
February 11, 2025

Why does Red light stay onwhen charging

Summary of Contents for Shogun ES50

  • Page 1 ES50 e-SCOOTER Dashboard Brake Lever Electronic Each state and territory in Australia has a Accelerator different set of rules and regulations pertaining to the usage of e-scooters (including where e-scooters can legally be used and whether e-scooters need to be registered with relevant road traffic authority).
  • Page 2 Assembly 1. Fix the handlebar stem and lower the kickstand. 2. Attach the handlebar wire loom to the riser wire loom. Install the handlebar onto the stem. 3. Use the allen key in the package box to 4. Turn on the electronic display and tighten the screws on both sides.
  • Page 3 WARNING: THERE ARE CERTAIN RISKS RIDING A SCOOTER. WEAR AN APPROVED HELMET AND PROTECTIVE GEAR THROUGHOUT THE PROCESS AS SHOWN. How to Turn on your e-Scooter 1. Power switch. Press once to turn 2. Place one foot on the 3. When the electric scooter on.
  • Page 4: Safety Warnings

    Specifications Table The scooter Item Number ES50 Unfolded Size 116cm x 43cm x 120cm Folded Size 116cm x 43cm x 49cm Net Weight 16.3KG...
