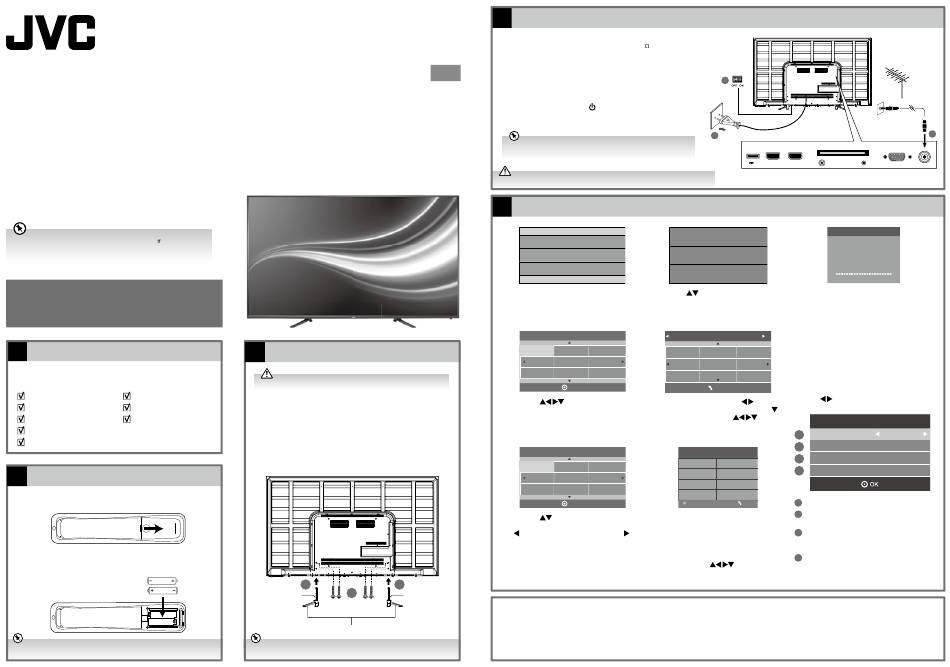

JVC LT-65E75 Quick Start Manual

Quick Start Guide
65" FHD LED TV
LT-65E75
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch o the TV if device
is left on and idle for 4 hours. Please refer to "Auto Standby" under the "Time
Settings" section of the instruction manual for more detail.
For Help and Support Call
Norway: 815 56 602 Sweden: 0770 474 700
Denmark: 70 27 87 37 Finland: 020 - 500 6550
1
Unpacking
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV Screw x 4
TV Stand Assembly (L) x 1 Instruction Manual
TV Stand Assembly (R) x 1 Quick Start Guide
Remote Control
AAA Batteries x 2
2
Operating Your Remote Control
1. Press and lift the back cover to open the battery compartment of
the remote control.
2. Insert two AAA size batteries. Close the battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
3
Installing the Base Stand
It is recommended that two people take part in the base installation.
1. Lay the TV down on a flat surface with the back side facing up, and
ideally at the edge of a table so that the base of the TV slightly
overhangs on it. Please make sure a soft cushioned material (such
as a pillow or thick piece of foam) is placed beneath the screen.
2. Slide the TV stand assembly under the bottom of the TV. Ensure
the stand support marking position is in right position. The stand
assemblies will fit snugly over the screw holes.
3. Screw the stand to the TV by using 4 screws supplied.
1 1
2
TV Stand Support TV Stand Support
(included, Screw x 4 (included,
"R" mark in the front) "L" mark in the front)
TV Stand Foot Front (included)
The screw holes will only align if the front of the stand foot is faced to the front
of the TV.
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on the
wall and the other end of the cable to the RF (75 ) socket at the rear
right side of your TV.
2. Connect the mains cable to the mains socket after you have
GB
completed all the connections.
3. Switch on the POWER ON/OFF switch which is located at the front right
side under the frame. At this stage, the TV switches to standby mode.
The red LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the button at the front right side under
the frame or on the remote control to turn on your TV. The red LED
indicator will turn off.
If you are going to watch TV using a set-top box, simply connect your TV and
set-top box via a HDMI cable and select HDMI in the Input Source menu.
Do not connect the TV to the mains supply until you have completed all the connections.
5
Turning the TV On for the First Time
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
1. The first time you turn the TV on, it will go
straight into First Time Installation menu.
Press the OK button to start First Time
Installation menu.
Please select an OSD Language
English Česky Suomi
Svenska Slovak
Dansk Norsk
OK
2. Press the
buttons to select your
desired language to be displayed on the
menu. The default on-screen menu language is
set as English. Press the OK button to confirm.
Mode Select
Home Mode
Shop Mode
OK
3. Press the
buttons to select your desired
mode and then press the OK button. Press the
button to select Yes to confirm or the
button to select No to cancel and return to the
Mode Select menu.
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these features, please
take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV, please call our Support Centre:
Norway: 815 56 602 Sweden: 0770 474 700
3
2
To the mains socket
COMMON INTERFACE (CI)
USB HDMI2 HDMI1(ARC)
HEADPHONE
5V 500mA
DVB Select type
DVB-T
DVB-C
4. Press the buttons to select DVB-T / 5. Channel tuning will commence. This operation
DVB-C and then press the OK button to may take up to 6 minutes. The display will
show the progress of the tuning and the
confirm.
number of channels found.
Tune Type DTV Target Region Setting (UK only)
During tuning your TV may have received signals
Germany Italy Netherlands
from more than one transmitter. If this has
Greece Ireland Norway occurred the Target Region Setting screen will be
displayed. This will enable you to select the correct
Hungary Luxembourg Poland
regional transmission for the local news service
MENU that you require.
Press the
4a. If you select DVB-T, press the
buttons to
setting and then press the OK button to confirm.
select DTV / ATV / ATV + DTV. Press the
button and then press the buttons
to select the desired country and. Press the
OK button to start tuning.
1 Country Code
Primary Region
2
DVB-C Scan Menu
3 Secondary Region
Scan type Full
4 Tertiary Region
Frequency
610000
Auto
Network ID
Auto
Symbol(ks/s)
1
This will be shown as GBR for the UK.
OK MENU
2 This will show the regional country (e.g. England,
4b. If you select DVB-C, the next step is to
Wales, Scotland, NI).
configure the DVB-C system (Scan type /
3
Frequency / Network ID / Symbol(ks/s)). Press This will allow you to set the region for your local
news service on BBC and ITV (e.g. London, Beds and
the OK button to go to the tune type and add
Cambs etc).
country select menu. This step is the same as
the DVB-T's select the tune type (DTV / ATV)
4 You may receive signals from more than one
process. Press the buttons to select transmitter within the Secondary Region, (e.g Beds
and Cambs may have Luton or Sandy Heath).
the desired country and then press the OK
button to start tuning.
Denmark: 70 27 87 37 Finland: 020 - 500 6550
OR
RF coaxial cable
(not included)
1
PC IN RF
PC AUDIO
Channel Tuning
DTV : 3 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36% UHF CH (DTV)
Press [MENU] to skip.
buttons to select each option's
Target Region Setting
GBR
England
London
(QSG-LT-65E75(GB)-150804V1)
