  • Page 1: User Manual

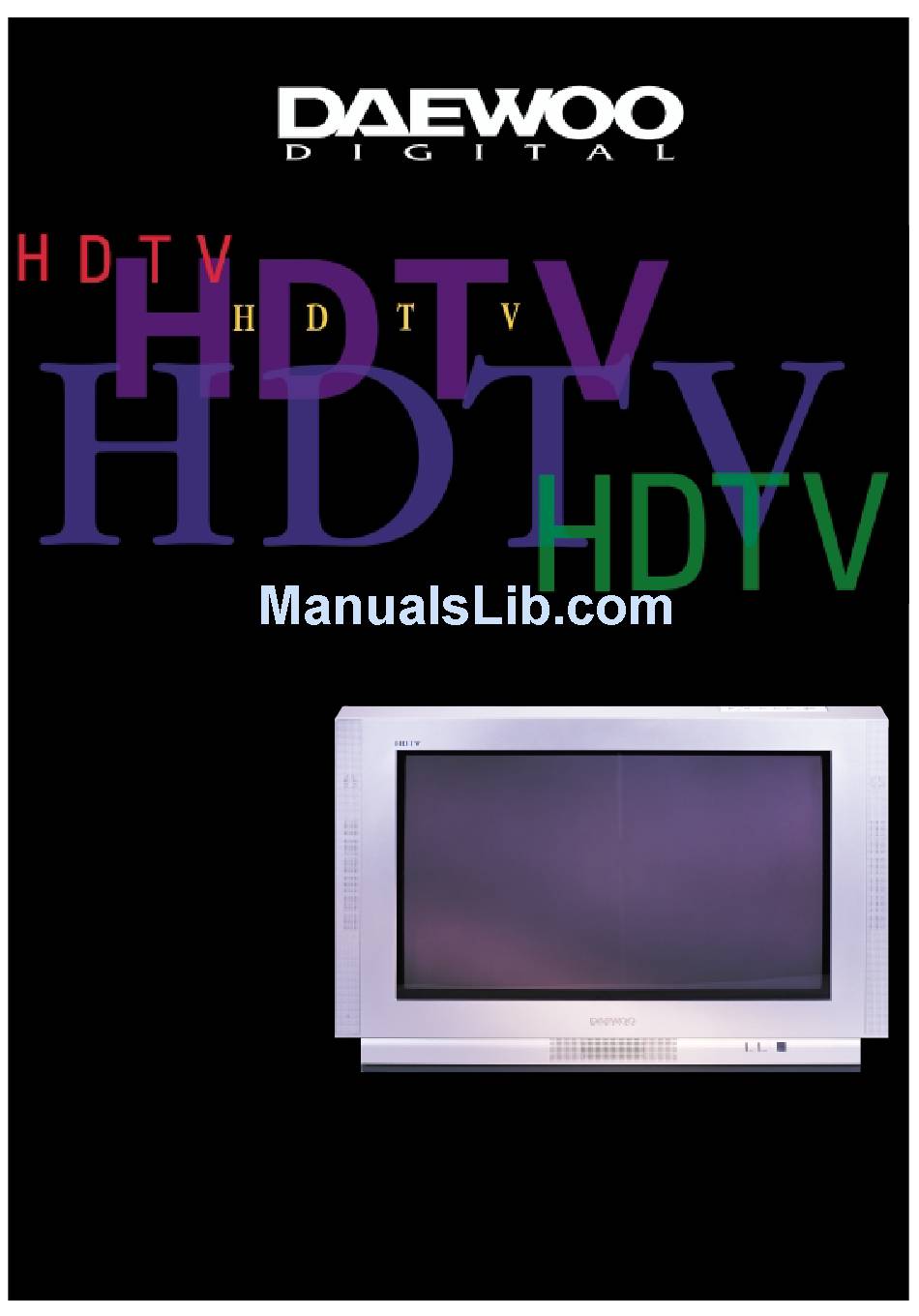

    User Manual DSC-30W60N...

  • Page 2: Important Safety Information

    TV receiver. • Retain the safety and operating instructions for future reference. • Heed all warnings on the TV receiver and in the operating instructions. • Follow all operating and use instructions. • Unplug the TV receiver from the wall outlet before cleaning.
  • Page 3 • Do not insert foreign objects through openings in the unit, as they may touch dangerous voltage points or damage parts. Never spill liquid of any kind on the TV receiver. • Ground outdoor antennas. If an outside antenna or...

  • Page 4: Table Of Contents

    Indoor/outdoor antenna ....7 Indoor/outdoor antenna and cable TV ..8 VCR without a cable box ....8 VCR with a cable box .

  • Page 5: Introducing Your New Hdtv

    This chapter will explain the various controls and inputs and outputs you will find on your Daewoo HDTV. Top panel controls and front panel lights On the top of the HDTV, you will find the following controls: VOL (Volume) buttons Use these buttons to change your HDTV's volume or to move the cursor in the menu screens.

  • Page 6: Side Panel Inputs

    HDTV H D T V On the front panel of the HDTV, you will find: Timer Indicator Lights up red when you have set the HDTV's automatic timers. Power Indicator Lights up green when you have turned the HDTV on. Remote Control Signal Sensor Receives signals from the remote control.

  • Page 7: Rear Panel Inputs And Outputs

    Rear panel inputs and outputs SIGNAL SELECT VIDEO 1 DIGITAL AUDIO HD COMPONENT OUTPUT OPTICAL /PCM COAXIAL HD COMPONENT /PCM VIDEO INPUT (1080 i/480P) (mono) COAXIAL /PCM OPTICAL /PCM S-VIDEO INPUT HD COMPONENT VIDEO 1 AUDIO INPUT CENTER WOOFER (mono) DO NOT OPEN (FOR SERVICE ONLY) VIDEO 2 VIDEO 3...

  • Page 8: Remote Control Overview

    HDTV H D T V Remote control overview The remote control has the following functions: R-V3 POWER button Press to turn the HDTV (and other equipment) on and off. MODE buttons Press to select which equipment you wish your remote control to operate: •...
  • Page 9 Press to select how to view your HDTV: Normal, Full or Zoom. ADD/ERASE button Press to add and erase channels on your HDTV. 100 button Press to select cable channels over 100 on TV or DSS broadcasts. HDTV H D T V CH (Channel) buttons Press to select channels.

  • Page 10: Installing The Batteries In The Remote Control

    Replace the battery cover. Programming the remote control The HDTV remote control is pre-programmed to operate your Daewoo HDTV.You can also program the HDTV remote control to operate other components, such as a cable TV box, a DSS, or a VCR.To program the HDTV remote control, please see "Programming the Remote Control”...

  • Page 11: Connecting Your Hdtv

    CAUTION - Make sure your HDTV is unplugged before connecting equipment. This chapter explains how to connect all of your equipment to the HDTV. Before you begin, Daewoo suggests you make sure you have all of the cables and wires you will need.These may include: •...

  • Page 12: Indoor/Outdoor Antenna And Cable Tv

    HDTV H D T V Indoor/outdoor antenna and cable TV If you have a cable box, plug the cable from the wall into the IN terminal of the cable box. Connect a coaxial cable between the OUT terminal of the cable box and the antenna input on the HDTV labeled IN.

  • Page 13: Vcr With A Cable Box

    Cable Box In From Antenna S-VIDEO Out to TV If you are connecting a mono VCR, connect only L/MONO. Digital Satellite System (DSS) or Laser Disc (LD) To connect a Digital Satellite System or Laser Disc, follow the diagram below.

  • Page 14: Hd Component And Audio System

    HDTV H D T V HD component and audio system To connect a HD component and audio system, follow the diagram below. NOTE: After you connect a digital audio system, you will need to use the menus to set it up. Please see “Setting up Digital Audio”...

  • Page 15: Camcorder

    Camcorder The Video 4 inputs on the side of the HDTV make it easy to connect a camcorder.To do this, follow the diagram below. Side of HDTV VIDEO AUDIO S-VIDEO Video Audio S-VIDEO Video Audio Camcorder Speakers To connect standard speakers, follow the diagram below. SIGNAL SELECT VIDEO 1 DIGITAL AUDIO...

  • Page 16: Setting Up Your Hdtv

    This chapter explains the basic setup required for watching and listening to your HDTV for the first time. Daewoo has made setup as easy as possible with the use of on-screen menus and simple navigation controls. Using the on-screen menu system Daewoo has designed an easy-to-use menu system for controlling your television.Along with your remote...

  • Page 17: Setting The Time And Date

    Setting the time and date Press the MENU button to display the MAIN MENU. Press the up/down arrow buttons to highlight SETUP. Press the SEL button. The SETUP menu is displayed. Use the up/down arrow buttons to highlight Time Setting. Press the SEL button.

  • Page 18: Memorizing Channels

    Input Select and press the SEL button. The INPUT SELECT menu is displayed. Use the up/down arrow buttons to highlight the kind of antenna you connected to the HDTV:Antenna (indoor/outdoor) or Antenna + Cable (cable TV and indoor/outdoor). Press the SEL button. Time: 4 5 P...
  • Page 19 Press the PREV button to return to the SETUP menu. Use the up/down arrow buttons to highlight Channel Setup and then press the SEL button. The CHANNEL SETUP menu is displayed. Use the up/down arrow buttons to highlight Channel Scanning and then press the SEL button. The CHANNEL SCANNING menu is displayed.

  • Page 20: Adding/Erasing Channels

    HDTV H D T V Adding/erasing channels You can easily add or erase channels that your HDTV memorized. To do this: From the MAIN MENU highlight SETUP and press the SEL button. Highlight Channel Setup and press the SEL button. Highlight Add/Erase Channel.

  • Page 21: Fine Tuning Channels

    Fine tuning channels You can fine tune channels that do not appear as clearly as they should. NOTE: You cannot fine tune a digital channel. Digital channels either appear perfectly tuned or they do not appear at all. To fine tune a channel: From the CHANNEL SETUP menu use the up/down arrow buttons to highlight Fine Tuning.

  • Page 22: Selecting Channels

    HDTV H D T V Selecting channels Daewoo has provided a number of different ways to conveniently select channels.They include: • Using the Channel buttons • Using the Number buttons • Using the channel selector • Selecting favorite channels NOTE: To change digital channels from the Program Guide, please see “Using the Program Guide” on page 25.

  • Page 23: Selecting Favorite Channels

    Selecting favorite channels Your HDTV can store up to 16 channels that you can quickly select by using the arrow buttons on the remote controls.To store and select your favorite channels: From the MAIN MENU, use the up/down arrow buttons to highlight PREFERENCE.

  • Page 24: Selecting A Source

    These sources correspond to the inputs on the side and back panel of the HDTV. For example, if you connected a VCR to the Video 2 inputs, use the TV/VIDEO button on the HDTV or on the remote control to select Video 2 and to see the picture and hear the audio from the VCR.
  • Page 25 . Press the up/down arrow buttons to highlight Speaker Off and press the SEL button. The SPEAKER OFF menu is displayed. If you: do not want to use external (left/right/center) speakers, • highlight No and press the SEL button. do want to use external speakers, highlight Yes and press •...

  • Page 26: Setting Up Digital Audio

    HDTV H D T V Setting up digital audio You can set the HDTV to automatically adjust to play the kind of digital audio that you connected. To do this: From the MAIN MENU, use the up/down arrow buttons to highlight SETUP.

  • Page 27: Adjusting Surround Sound

    Dolby Surround (L, R, C, Ls, Rs) • Select if you have connected external rear surround speakers and wish to listen to full Dolby Surround Sound. 3 Stereo (L, R, C) • Select to hear sound from a left, right and center speaker system.

  • Page 28: Woofer Volume

    The test tone will play one cycle between the speakers before it stops. For the best surround quality, Daewoo recommends that you adjust the sound equally between all of the speakers. For example, the volume of the front...

  • Page 29: Using The Program Guide

    Your Daewoo HDTV includes a special Program Guide that makes it easy to choose channels and to get information about programs.The Program Guide also lets you select minor channels, part of the many choices you now have with digital television.

  • Page 30: Selecting A Current Program

    HDTV H D T V Selecting a current program To watch a program that is listed in the program guide, use the arrow buttons to highlight the program you want to watch on the guide and then press the SEL button.The selected program appears on the screen. Seeing the channel banner The Channel Banner allows you to view information about the current program.

  • Page 31: Selecting Major And Minor Channels

    HDTV H D T V To remove the Channel Banner: Press the INFO button again or wait for the banner to disappear. Selecting major and minor channels You can select major channels using the up/down CH or Number buttons.The major channel number will be displayed on top-left of the channel banner (e.g., 11, 20, 45, etc.).

  • Page 32: Using Audio Features

    In addition to the audio controls you expect on any TV, Daewoo provides some special audio controls and features to make listening to your HDTV more enjoyable. Adjusting the volume To adjust the volume, simply press the up/down VOL buttons on the remote control, or use the VOL buttons on the top panel of the HDTV.You will see the volume bar at the bottom of the HDTV.

  • Page 33: Using The Midnight Mode

    Using the midnight mode Daewoo offers a special feature that lets you listen to your HDTV at night without abrupt changes in volume. For example, when a TV station cuts from a movie to a commercial, the audio may suddenly become much louder than the program you were watching.

  • Page 34: Using Video Features

    MENU to exit the menus. Selecting the video mode In addition to the standard video adjustments you can make, Daewoo offers preset video settings to accent certain kinds of programming.You can use the Video Mode feature from either the menus or the remote control.The settings are:...

  • Page 35: Selecting A Screen Mode

    To change the Video Mode from the menus: From the MAIN MENU, use the up/down arrow buttons to highlight VIDEO. Press the SEL button. From the VIDEO menu, use the up/down arrow buttons to highlight Video Mode. Press the SEL button. Use the up/down arrow buttons to highlight Normal, Dynamic, Cinema, or Customer.

  • Page 36: Using Closed Captions

    NOTE: Closed Captions are not available for digital channels. Although many programs offer closed captions, some do not. Look for the CC symbol in your TV listing or on your VCR or DVD.
  • Page 37 To turn Closed Captions on and off from the remote control: Press the button on the remote control labeled CLOSED CAPTION. Each time you press the button you will see an on screen display which says "CC ON" or "CC OFF." HDTV H D T V...

  • Page 38: Setting Locks And Limits

    NOTE: Be sure to write down your password and store in a safe place in case you forget it. If you lose your password, please call Daewoo at 1-800-DAEWOO-8. Setting rating limits You can set rating limits that automatically black out programs that exceed the limit you set.
  • Page 39 You will see the RATING LIMIT screen. Use the arrow buttons to select a Motion Picture Association of America (MPAA) rating and a TV rating that conforms to the Federal Communication Commission (FCC) TV Parental Guidelines. An explanation of the ratings follows:...

  • Page 40: Using Timers

    Daewoo provides two different timers for you to use.The On/Off timer turns the HDTV on and off just once on the day you set it, or on and off at the same time everyday. The sleep timer lets you set the TV to automatically turn off after 30, 60, 90, or 120 minutes.
  • Page 41 To set the timer for everyday: From ON/OFF TIMER menu, highlight Everyday (Monday- Sunday). Press the SEL button. Set the hour, minute, and AM/PM that you wish the HDTV to turn on and off. NOTE: Use the Number buttons or the up/down arrow buttons to change the value of an item.

  • Page 42: Using The Menus Without The Remote Control

    You can use the menus from the top panel controls of the HDTV, much like you use them from the remote control.The top panel controls operate slightly differently. The differences are: • The top panel controls have no PREV button.Therefore you cannot back up from one menu to the previous menu.

  • Page 43: Using The Help System

    The HELP menu explains how to use the menu system and the remote control. From the MAIN MENU, use the up/down arrow buttons to highlight Help and press the SEL button. Learning about the menus To learn more about the menus, Highlight Main Menu from the HELP Menu and press the SEL button.

  • Page 44: Programming The Remote Control

    The HDTV remote control is pre-programmed to operate your HDTV. However, you can also program the HDTV remote control to operate other components, such as a Cable TV Box, a DSS, a VCR. Confirm that the external component is plugged in and is turned off.

  • Page 45: Component Codes

    Component codes Cable TV Box Brand Code 004 006 007 041 044 048 055 ANTRONIX ARCHER 008 010 017 027 CABLE STAR CENTURION CENTURY CITIZEN COLOUR VOICE 064 083 COMBANO 076 077 COMTRONICS 022 033 DIAMOND EAGLE 023 033 042...
  • Page 46 CALIFORNIA AUDIO CANON 027 030 032 CAPEHART CRAIG 005 038 108 CURTIS MATHES 030 032 155 159 DAEWOO 001 007 009 012 060 061 086 088 090 094 095 096 DAYTRON 013 023 037 040 DENON 124 141 144 DIMENSIA...
  • Page 47 SYLVANIA 030 032 033 055 SYMPHONIC TANDY 012 033 TATUNG 037 040 166 TEAC 033 037 040 166 TECHNICS 030 032 148 TEKNIKA 019 030 032 033 THOMAS THOMSON 125 126 TOSHIBA 010 014 039 043 055 077 090 104 TOTEVISION 038 079 UNITECH...

  • Page 48: Troubleshooting

    Check the SPEAKER SETUP menu to make sure the speakers are on. • Make sure that MUTE is not on. If you forget your password, contact an authorized Daewoo Service Center for assistance. • Check the batteries. If the batteries are weak, replace them with new ones.

  • Page 49: Specifications

    Sound Digital Audio Dolby Digital AC-3 / Pro logic NTSC Audio Multi-CH TV Stereo (MTS) / Second Audio Program (SAP) Audio Power 8W / ch (Main L/R, Woofer) , 5W / ch (Center, SL, SR) Number of Inputs/Outputs A/V In...

  • Page 50: Limited Warranty

    Limited Warranty Daewoo Electronics Corporation of America Inc. (also known as DECA) warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year labor and 1 year parts from the date of original purchase.
  • Page 51 Visit us on the web at: http://www.daewoo-digital.com Daewoo Electronics Corporation of America 120 Chubb Avenue Lyndhurst, NJ 07071 S/N : 48586110E101-R1...
