Dacor Epicure OF24 Planning Manual

Revised
04/15/08
*Depth excluding handle depth of 2 1/2" (64mm)

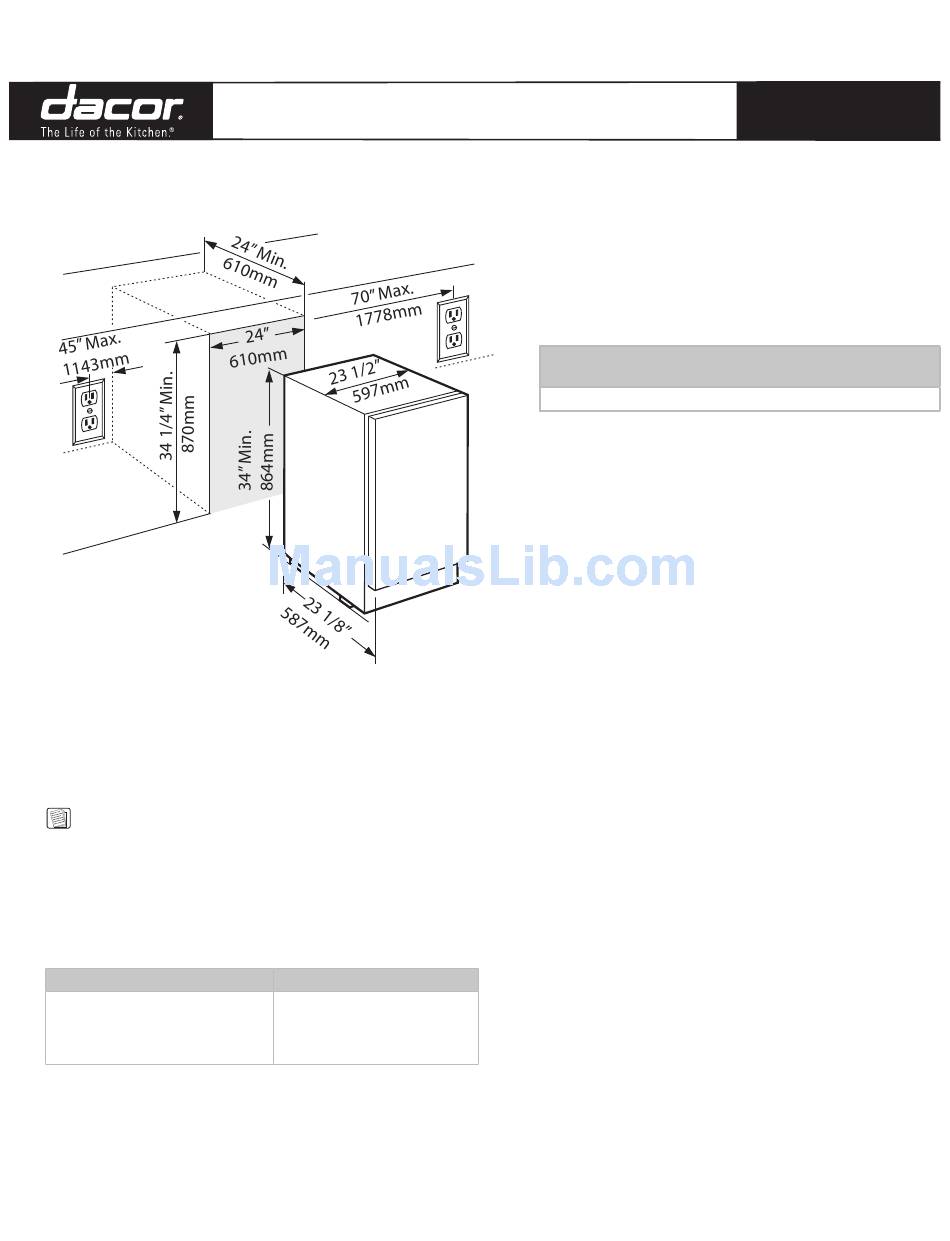

CAbINEt CUtOUt/COUNtER-tOP AND
PRODUCt DImENSIONS
nOTE:
1.
The overall height of the appliance can be increased by
½" (12.7 mm) by adjusting the feet. The minimum cutout
dimensions above allow for additional clearance for sliding
the appliance into a recess based on how you choose the
final installation to look.

Dedicated Circuit Required

120 Vac, 60 Hz, 15 Amp.
(Breaker)
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
OF24LS, OF24RS
24" Outdoor Refrigerator
*
Total Connected Load
0.1 kW (1.2 Amp.)
Specifications are subject to change without notice.
See installation instructions for additional details.
1/1

Operating Environment

◊ Do not operate this appliance near an oven, range top,
radiator or similar heat source. For best performance,
do not place this appliance where it will be hit by direct
sunlight or exposed to extreme weather conditions.
◊ This appliance is designed to operate outdoors. It is set
to operate within the ambient temperature limits listed
below. These temperature limits should not be exceeded.
AmbiEnT TEmpERATuRE REquiREmEnTs
fOR pROpER OpERATiOn
50°F to 109°F (11°C to 42°C)
Enclosed Cabinet or under-Counter-Top
Layout Requirements
The Dacor outdoor refrigerator can be recessed within an
opening between cabinets or placed under a counter-top if
desired.
impORTAnT:
◊ The installation location should permit the door to open a
minimum of 90°. The maximum angle the door can open
is 105°.
◊ The appliance must be l
bottom is not obstructed.
◊ The electrical outlet must be accessible after installation
so that the user can unplug the appliance.
◊ T he floor under the appliance must be flat and level with
the surrounding floor.
◊ If installing the unit in a cutout, make a hole in the side of
the cutout to allow the power cord to pass through to the
electrical outlet.
PLANNING
GUIDE
ocated so that the grill on the
11.2
