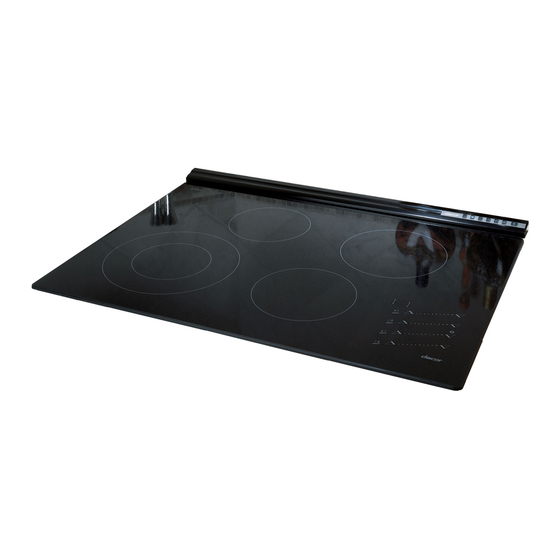

Dacor Millennia ETT304-1 Installation Instructions Manual
Dacor millennia ett304-1: install guide
Hide thumbs
Also See for Millennia ETT304-1:
- Use and care manual (13 pages) ,
- Installation instructions manual (12 pages) ,
- Planning manual (3 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor Millennia ETT304-1
Summary of Contents for Dacor Millennia ETT304-1
-
Page 1: Installation Instructions
Millennia For use with models ETT304-1, ETT365-2, MET304 and METB365-1 Part No. 65170 Rev. J Electric Cooktop ® TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1 AND U.L. 858 STANDARD FOR HOUSEHOLD COOKING APPLIANCES. Installation Instructions... -
Page 2: Table Of Contents
If You Need Help... If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the Dacor Distinctive Service line. When you call, have the model and serial number of the appliance ready. -
Page 3: Before You Begin
Use common sense and caution when installing, maintaining or oper- ating this or any other appliance. • Always contact the Dacor Customer Service Team about problems and conditions that you don’t under- stand. See Customer Service Information. Safety Symbols and Labels... -
Page 4: General Safety Precautions
Dacor is not responsible for the cost of correcting problems caused by improper installation. The owner is responsible to make sure this appliance is properly installed. -
Page 5: Installation Specifications
21 1/4" * (495 mm) (540 mm) Models ETT365-2, METB365-1 • The junction box and the remote circuit breaker panel or fuse box, must be accessible when the cooktop is in place. Model Circuit Required 240 Vac, 60 Hz. ETT304-1 3 wire* 40 Amp. -
Page 6: Planning The Location
Under Counter Clearance - All Installations Ventilation To reduce the risk of personal injury and to reduce accu- mulated smoke in the room, Dacor strongly recommends installing a vent hood or raised vent. Install the vent hood or raised vent according to the accompanying installation instructions. -
Page 7: Cabinet Cutout Dimensions
Countertop Cutout Dimensions With Raised Vent Installed Model/Configuration ETT304-1 or MET304 cooktop with ERV30 or PRV30 raised vent. ETT304-1 or MET304 cooktop with RV30 raised vent. ETT365-2 or METB365-1 cooktop with ERV36 or PRV36 raised vent. ETT365-2 or METB365-1 cooktop with RV36 raised vent. -
Page 8: Installation Instructions
If the cooktop will be used with a raised vent, install the vent according to it’s installation instructions first. Install it in the back of the cutout. - Page 9 Jumper any insu- lating materials as shown with a length of No. 4 copper wire. Securely clamp the wire to bare metal at both ends. Conduit to cooktop Separate 10 AWG wire minimum Incoming power Three Wire Connection with External Ground appliance conduit.
-
Page 10: Verifying Proper Operation
Unlock the element controls: ◊ On ETT series models, push and hold the Dacor logo key for three seconds. Three beeps should sound and the Dacor logo indicator light should go out. - Page 11 Installation Instructions ON/OFF ON/OFF ON/OFF ON/OFF CANCEL • SECURE Cooktop Controls - Model MET304 ON/OFF ON/OFF ON/OFF ON/OFF CANCEL • SECURE Cooktop Controls - Model METB365-1 Outer element Outer element Bridge element key...
- Page 12 Dacor ● Phone: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
