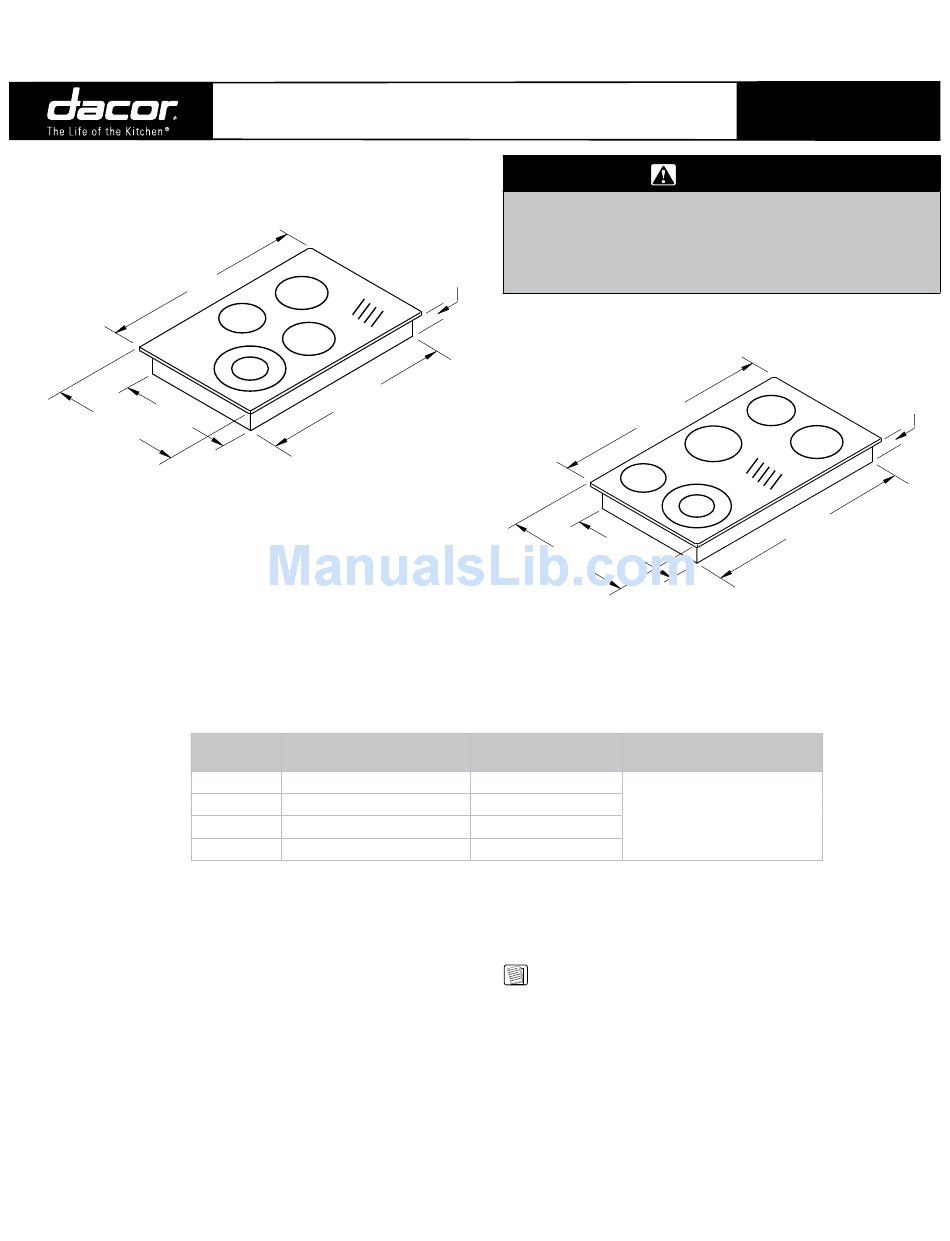

Dacor Millennia ETT304-1 Planning Manual

Ett304-1, Ett365-2, MEt304 and MEtb365-1
Document # PG03 - 001
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
30 1/4" *
(768 mm)
19 3/8"
21 1/4" *
(495 mm)
(540 mm)
ProDUCt DIMENsIoNs - Ett304-1 AND MEt304
(Ett304-1 shoWN)
* For reference only, See the product data label on bottom of unit for exact specifications.
www.Dacor.com
Phone: (800) 793-0093
30 Inch and 36 Inch Wide,
Millennia
28 3/8"
(721 mm)
* For units with stainless steel trim, other units may be up to 1/8" less.
Model No. Electrical Circuit Required
ETT304-1 240 Vac, 60 Hz, 40 Amps.
ETT365-2 240 Vac, 60 Hz, 40 Amps.
MET304 240 Vac, 60 Hz, 40 Amps.
METB365-1 240 Vac, 60 Hz, 50 Amps.*
ELECtrICAL sUPPLy rEqUIrEMENts
® Electric Cooktops
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
4" (102 mm)
accompanying installation instructions.
Chassis height
21 1/4" *
(540 mm)
ProDUCt DIMENsIoNs - Ett365-2 AND MEtb365-1
Total Connected
Load*
6.9 kW (29 Amps.)
9.1 kW (38 Amps.)
6.9 kW (29 Amps.)
9.6 kW (40 Amps.)
NOTES:
1. The cooktop is supplied with a flexible, 48 inch long
power conduit consisting of two (2) insulated hot lead
conductors (L1 and L2) and one (1) insulated ground
conductor. There is no neutral connection. All leads are
copper. The conduit is connected to the right corner of
the cooktop. Do not connect the ground wire to neutral.
2. Tested in accordance with the latest edition of ANSI
Z21.1 and U.L. 858 Standard for household cooking
appliances.
3. These cooktops are not approved for recessed
installation.
Specifications are subject to change without notice.
See installation instructions for additional details.
Revised 08/20/09 Page 1/3
PLANNING
WARNING
36 1/4" *
(921 mm)
19 3/8"
(495 mm)
(Ett365-2 shoWN)
Minimum Supply Wire Size
Line and Ground Connections
No. 8 AWG
GUIDE
4" (102 mm)
Chassis height
34 3/8"
(873 mm)
3.1
