Summary of Contents for DP Audio Video DP301BL

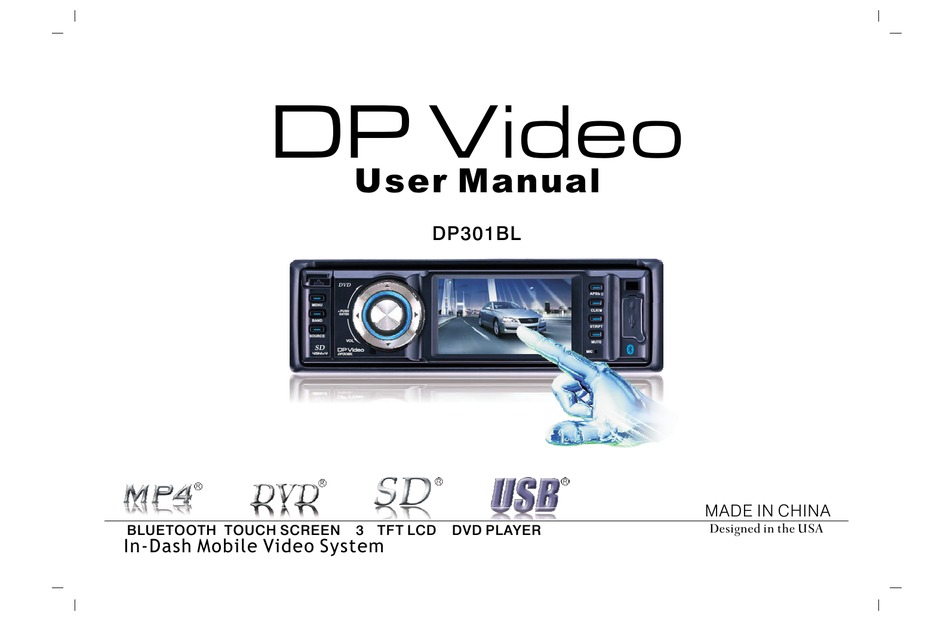

- Page 1 DP Video User Manual MENU PUSH ENTER BAND SOURCE DP301BL BLUETOOTH TOUCH SCREEN 3 TFT LCD In-Dash Mobile Video System DP301BL APS/ CLK/ ST/RPT MUTE DVD PLAYER MADE IN CHINA Designed in the USA...
-
Page 2: Table Of Contents
Contents Warnings and Precautions...2 Electric Connection Reception collection Speaker collection Installation...5 Install the unit Remove the unit General Features...6 Remote Control...7 Loading and Replacing the battery Basic operation Play Operation...9 USB/SD operation...11 USB/SD PLAYER System setting...12 Video Audio System TV tuner...13 B l u e t o o t h . -
Page 3: Warnings And Precautions
Warnings and Precautions Warnings 1 Only connect the unit to a 12V power supply with negative grounding. Never install the unit where the operation for safety driving is restrained. Never use the video display function in the front when driving to prevent the violation of laws regulations and also to reduce the risk of traffic accident except using for rear view video camera. - Page 4 Warnings and Precautions Precautions Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop/ dealer for inquiry. If the front panel or the TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the applicant.
-
Page 5: Electric Connection
Ignition wire(Red) Rear.L Green/Black Battery wire(Yellow) Purple Rear.R Purple/Black VIDEO IN (YELLOW) YELLOW BACK A CAR VIDEO IN (RED) AUX RIGHT IN (WHITE) AUX LEFT IN SUBWOOFER BROWN Light wire To front left speaker To front right speaker To rear left speaker... -
Page 6: Installation
Installation Before installing the receiver, fit it in the suitable place of your car. Then connect the corresponding speakers and electrical connections. When your system is operated properly, follow the instructions installation INSTALL THE UNIT 1)Install the bracket 2)Bend over some slices to secure the installation of bracket inside of dash. -
Page 7: General Features
General Features MENU PUSH ENTER BAND SOURCE Note: This unit doesn't have RDS function, AF/TA/PTY neither. APS/ CLK/ /AF ST/RPT/TA MUTE/PTY... -
Page 8: Remote Control
General Features MENU PUSH ENTER BAND SOURCE Remove Panel: Press[ ]to remove the panel. MENU Button: System setting. BAND Button: Band switch. SOURCE Button : Play source switch. Four Directions Button: Select the menu through up/down/ left/right direction. ST/RPT/TA Button: Sound track switch/Repeat/ Traffic Broadcast. - Page 9 Remote Control Button and Function Mute Mute Sub-T Sub-T Band Band Language Language Angle Angle EQ EQ EQ EQ S T S T AF AF Enter Enter TA TA Setup Setup Title Title Title Title I D3 I D3 PQRS PQRS WXYZ WXYZ...
-
Page 10: Play Operation
Play operation MENU MENU PUSH ENTER BAND SOURCE SRC/PWR CLK/ CLK: In reception state, press this button will display the time, but can not adjust the time.(Time adjust, turn to P12, system setting.) In the play mode, press[ ]button once to pause, press it again to stop. - Page 11 Play operation Insert DVD/VCD/CD disc, touchscreen will show menu as follows: Note: Without touch function, with this display. Note: Because the different situation of Disc REC, some of the CD-R, CD-RW,DVD-R,DVD-RW,DVD+R,DVD+RW Disc may can not be readed. And the Disc without final treatment can not be readed too. Regarding the final treatment, please make conference to the guide of REC set or REC manual.
-
Page 12: Usb/Sd Operation
USB/SD operation MENU PUSH ENTER BAND SOURCE Inner panel: Press the open button on the front panel to flip it down. Disc slot Eject button SD card slot RESET button Inserting the USB device Insert the USB device into the USB slot on the front panel. Then the playing mode will be changed into USB mode automatically. -
Page 13: System Setting
System setting MENU ENTER MENU: Press[ MENU ]button V d o mode: Menu operation VIDEO AUDIO SYSTEM Clicks on the menu option BRIGHT Press[ ] to adjust. COLOR Press to confirm and exit. CONTRAST TINT VMODE STAN Audio mode: Menu operation V d o Audio System... -
Page 14: Tv Tuner
TV tuner MENU PUSH ENTER BAND SOURCE SOURCE TV tuner Preparation: To receive TV broadcasts, install the TV antenna. For receiving TV broadcasts, stop your car where there is no obstacle to broadcast reception around. TV Scanning: Press [SRC] button or touch [AMS] can scan and store TV program automatically. -
Page 15: B L U E T O O T
Bluetooth The Bluetooth is wireless mode of transmission in short distance. Through Bluetooth function, the DVD unit establishes connection with Bluetooth handset. And then, these units can realize mutually contrdling and file transfering. Choose the Bluetooth Mode Method : A: Press the [SOURCE] button, to return to main menu.. - Page 16 Bluetooth Making phone call After connecting, you can make phone call through remote control, touch screen or phone numbers record. A: Making mobile phone call After making phone call, the screen will display making phone call. B: Making touch screen call Input the numbers on the screen, press [ ] icon can correct the numbers;...
-
Page 17: Radio Operation
Radio Operation BAND MENU PUSH ENTER BAND SOURCE BAND Press BAND button to select among three FM or two AM bands. (FM1-FM2-FM3-AM1-AM2) FM 01 FM 02 FM 03 AM 02 AM 01 Stereo Press [ST] button, switch between [ MO] and [ST].While receiving the signal,[ST] back light turns blue. -
Page 18: Accessories
Radio Operation AF(Alternative Frequency) Turn "AF",the unit will switch to the stronger signal of the same station automatically. TA(Traffic announcement) Press TA, the unit will prior to seek the traffic information. If the machine receives the traffic information, it will choose this signal and quit other radio signal or CD program. -
Page 19: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Familiar characters and their meanings Causes Characters Disc is too dirty. NO Disc Disc is inserted upside down. No disc in the unit. Disc is extreme dirty. -
Page 20: General Problems
Troubleshooting General problems Symptoms The fuse of the unit has been broken. The unit cannot be The fuse of car battery has been broken. powered on. False operations and etc. Battery has been exhausted. Remote controller does not work. Battery is not installed correctly. Audio output connection is not correct. -
Page 21: Tft Monitor
Troubleshooting TFT Monitor Symptoms No image appears on the monitor and warning Incorrect connection of Breaking wire. information is shown at all times. The color system of DVD disc is not suited with the monitor. The actual color system is not the same as the marked color system on the label Abnormal display like for some piratic discs. -
Page 22: Radio Tuner
Troubleshooting Radio Tuner Symptoms Auto antenna is not extended completely. It's hard to receive Auto antenna is not connected with the unit firmly. stations. LOCAL function is on. Mp3 playback Symptoms Disc is scratched. Disc is too dirty or wet. Disc cannot be played back. -
Page 23: Dvd Player
Troubleshooting DVD player Symptoms Disc cannot be inserted. There is a disc in the unit already. Disc is scratched. Disc is too dirty or wet. The pickup is dirty. Disc cannot be played back. Disc is not compatible with the unit. Parental lock class is too high. -
Page 24: Specifications
Specifications Specifications subject to change without notice. DISPLAY UNIT Liquid crystal panel...3.0 inches Panel weight ...157g Number of pixels... Display method...Transparent color filter format Drive method... Light source...internal light (built-in small fluorescent lamp) GENERAL Operating power..12 Volts DC, negative %10THD output wiring...Designed for using four speakers only front and rear channels cannot be combined... - Page 25 If you have any questions about this unit or technical problems, please contact: TechnicalSupport@DPAudioVideo.com WNER'S MANUAL Before installation and operating the unit please read this manual thoroughly and retain it for future reference...
