3. AssemBly
3.1

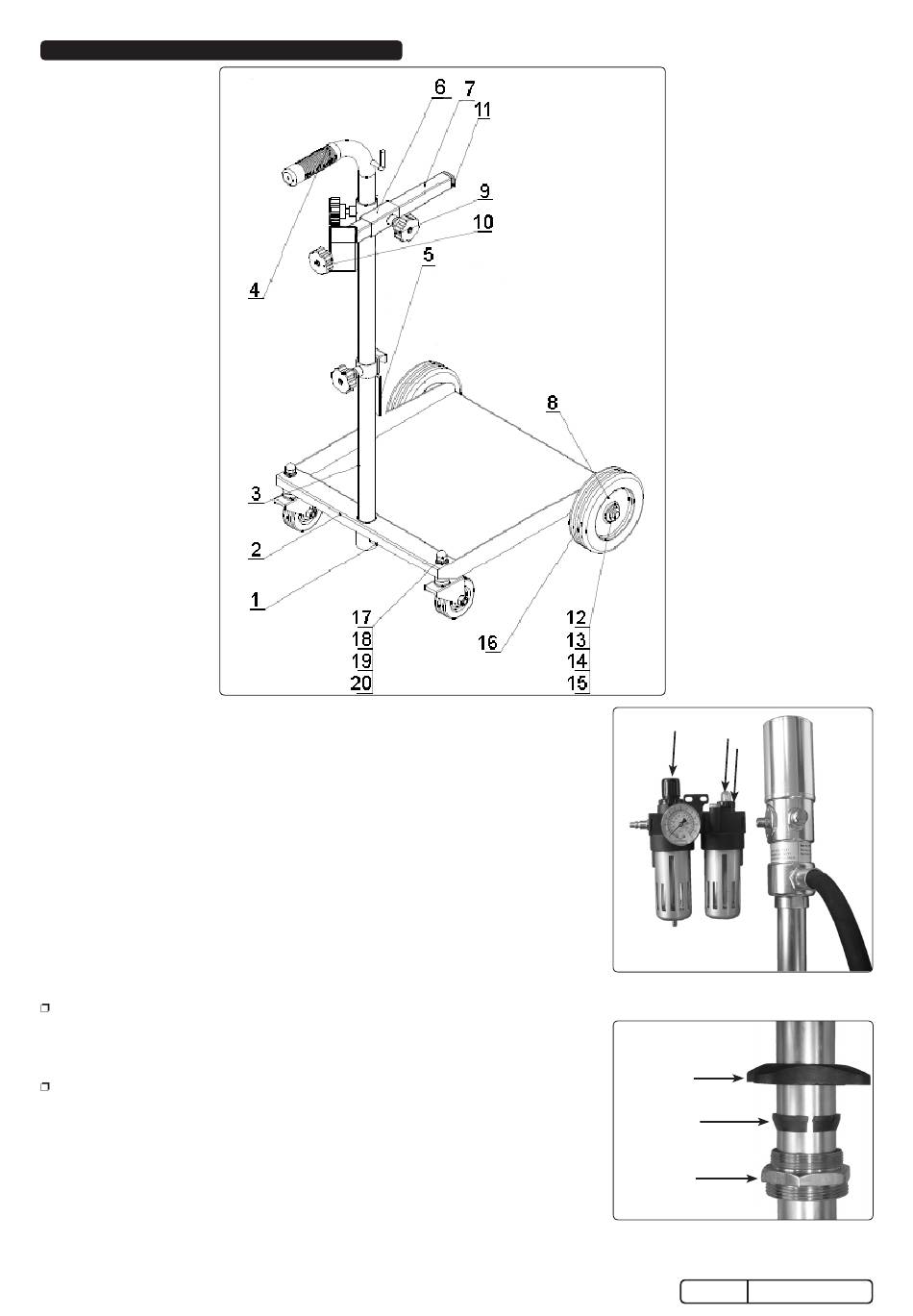

Trolley Assembly (fig.1)
3.1.1
Attach the two castor wheels (17) to the base plate (2) using washers (19 & 20) and nuts
(18).
3.1.2
Turn the base plate upside down and attach the axle (12) to the base plate using hex bolt
(8) and then slide washer (13) on to the axle slide wheel (16) onto the axle and secure
using washer (15) and hex bolt (14). Repeat for the other side and then turn the base
plate over so that it is now supported on its wheels.
3.1.3
Slide the adjustable accessory support (6) onto the handle (3) and attach them using
knob (9).
3.1.4
Slide the accessory support pole (7) through section (6) and locate using knob (9), insert
stopper (11) into the end of the accessory support pole. Screw pump securing knob (10)
into the end of the support pole.
3.1.5
Slide the drum holder support (5) onto the handle and secure using knob (9).
3.1.6
Slide the handle assembly into the base plate until it bottoms out on the stops and secure
with the hex grub screw (1).
3.2
Pump and Air Regulator/Lubricator Assembly
3.2.1
Apply a small amount of liquid thread sealant onto the threads of the air inlet of the pump
and attach the air regulator/lubricator (fig.2).
WARNING! DO NOT allow thread sealant to enter the pump.
3.2.2
Attach the outlet pipe to the male outlet thread on the pump and attach the male
threaded end of the pipe to the retractable hose reel.
3.2.3
Attach the outlet of the retractable hose reel to the Digital Hose End Meter.
3.2.4
Attach the nozzle valve pipe assembly to the outlet of the Digital Hose End Meter.
WARNING! DO NOT overtighten the swivel connections.
3.2.5
Slide the locking nut, locking ring and the barrel nut onto the pick up probe of the pump
(fig.3), screw the locking nut onto the barrel nut to lock the assembly to the pick up probe.
3.2.6
Insert the pump assembly into the support brackets on the trolley and hang the meter
onto the accesssory support bracket.
fig.1
A
B
C
fig.2
Locking Nut
Lock Ring
Barrel Nut
fig.3
AK4563D
Issue no: 1 - 14/11/08
