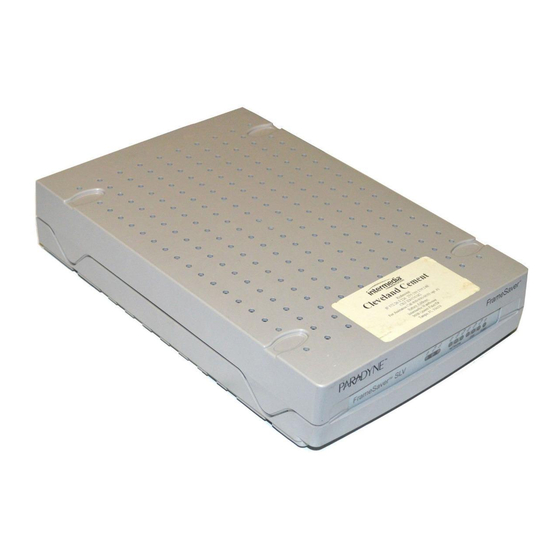

FrameSaver SLV 9124
Installation Instructions
Document Number 9124-A2-GN10-10
December 1999
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the waste of
surplus printing. It also helps us maintain competitive prices for our products.
Complete documentation for this product is available at www.paradyne.com.
Select Library
Select the following document:
9124-A2-GB20
FrameSaver SLV 9124 User's Guide
To request a paper copy of a Paradyne document:
Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
Outside the U.S.A., call 1-727-530-8623
Package Checklist
Verify that your package contains the following:
FrameSaver SLV unit
Power cord with a desktop 120 Vac or 100–240 Vac power transformer, depending
upon the model ordered.
RJ48C modular cable for U.S. network access.
FrameSaver SLV 9124 Quick Reference (Document No. 9124-A2-GL10)
Be sure to register your warranty at www.paradyne.com/warranty.
Technical Manuals
FrameSaver Frame Relay Devices.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FrameSaver SLV 9124 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradyne FrameSaver SLV 9124

Summary of Contents for Paradyne FrameSaver SLV 9124

  • Page 1 We provide complete product documentation online. This lets you search the documentation for specific topics and print only what you need, reducing the waste of surplus printing. It also helps us maintain competitive prices for our products. Complete documentation for this product is available at www.paradyne.com. Select Library Technical Manuals FrameSaver Frame Relay Devices.

  • Page 2: Before You Begin

    Before You Begin Make sure you have: A dedicated, grounded power outlet that is protected by a circuit breaker within 6 feet of the FrameSaver SLV (service level verifier) unit. A clean, well-lit, and ventilated site that is free from environmental extremes. One-to-two feet of clearance for cable connections.

  • Page 3: Safety Instructions

    Safety Instructions Please refer to the Important Safety Instructions and EMI Warnings beginning on page 15. Installing the Power Supply and Cord 1. Insert the 4-prong plug into the POWER jack. When inserting the plug at the rear of the FrameSaver unit, align the plug with the notch above the POWER jack.

  • Page 4: Connecting The Com Port To An Asynchronous Terminal

    Connecting the COM Port to an Asynchronous Terminal The FrameSaver unit must first be directly connected to a VT100-compatible asynchronous terminal or a PC providing VT100 terminal emulation to set up access and management of the unit. 1. Configure the terminal or PC to be compatible with the FrameSaver unit: –...

  • Page 5: A Quick Guide To Configuration

    A Quick Guide to Configuration The FrameSaver unit should operate using the default (factory-set) configuration options, except for the changes specified in these installation instructions. Refer to the following table for help navigating the menus. Press the . . . To .

  • Page 6: Verifying That Self-Test Passed

    The FrameSaver unit is set to automatically configure the following: Time Slot Assignment Auto-Configuration It is assumed that the unit is configured for factory default settings at the start of the installation, and that the automatic configuration features will be used. See Time Slot Assignment on page 7 and Automatic Configuration on page 8 for information about these features.

  • Page 7: Time Slot Assignment

    Setting Up Physical Interfaces 1. Select each interface’s physical configuration options. Configuration Network Physical Configuration Data Ports Physical Configuration DSX-1 (if the DSX-1 interface will be used) If installing a FrameSaver SLV NAM with an ISDN DBM, postpone configuring the DBM interface until later.

  • Page 8: Setting Up Management

    Setting Up Management 1. Select General SNMP Management. Configuration Management and Communication General SNMP Management 2. Minimally, set Name 1 Access to Read/Write. 3. Save the configuration. Setting Up Local Management at the Central Site 1. Create a DLCI for the data port. Configuration Data Ports DLCI Records...

  • Page 9: Connecting To The Network

    Connecting to the Network 1. Insert the 8-pin connector of the RJ48C network cable into the network interface. 2. Insert the other end of the cable into the RJ48C modular jack. POWER 99-16349 NOTE: After connecting the network cable, wait a few minutes to allow Auto-Configuration a chance to discover the frame relay characteristics and DLCIs.

  • Page 10: Setting Up Service Provider Connectivity At The Central Site

    Setting Up Service Provider Connectivity at the Central Site When management needs to be set up between a service provider’s customer and its network operations center (NOC), a non-multiplexed DLCI must be configured to carry management data between the customer’s central site and the NOC console. This requires that a frame relay discovered DLCI needs to be modified.

  • Page 11: Verifying The End-To-End Path

    Verifying the End-to-End Path After installation of a remote site unit, run an IP Ping test to Ping the NMS at the central site and verify that the entire path from the remote unit to the NMS is functioning. To run the IP Ping test, NMS trap managers must have been configured for the remote unit.
  • Page 12 Connecting to the DSX 1. Connect the 8-positon modular plug end of the DSX cable to the DSX-1 interface. If your DSX cable has a DB15 end, use the DSX-1 adapter cable (see Cables You May Need to Order on page 2). Refer to the pin assignment information in the User’s Guide to ensure you have proper connections.

  • Page 13: Connecting To The Dte

    Connecting to the DTE 1. Connect one end of the DTE’s V.35 cable to the data port. 2. Plug the other end of the cable into the DTE. 3. Tighten the screws on each side of the connector to secure them. RJ48C Jack POWER...

  • Page 14: Check Pvc Connections

    Check PVC Connections Check PVC connections to verify that all PVCs, including management PVCs, are configured, and to see whether the PVC is active or not. 1. Press Esc to return to the Status menu. 2. Select PVC Connection Status. The PVC Connection Status screen shows all PVC connections;...

  • Page 15: Important Safety Instructions

    Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be used with a 3-wire grounding type plug – a plug which has a grounding pin. This is a safety feature. Equipment grounding is vital to ensure safe operation.

  • Page 16: Emi Warnings

    The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne. In order to maintain compliance with FCC limits, any supplied ferrite chokes must be installed in accordance with the card installation instructions.

  • Page 17: Government Requirements

    Government Requirements Certain governments require that instructions pertaining to connection to the telephone network be included in the user documentation. Specific instructions are listed in the following sections. United States Notice to Users of the Telephone Network This equipment complies with Part 68 of the FCC rules. On the bottom of the housing is a label that contains, among other information, the FCC registration number for this equipment.
  • Page 18 After the telephone company has installed the requested services and jacks, you can connect the unit with the cable provided. An FCC-compliant telephone cord and modular plug are provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant.

  • Page 19: Warranty, Sales, Service, And Training Information

    Document Feedback We welcome your comments and suggestions about this document. Please mail them to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to userdoc@paradyne.com. Include the number and title of this document in your correspondence. Please include your name and phone number if you are willing to provide additional clarification.
