Summary of Contents for Lefroy Brooks M2-5100

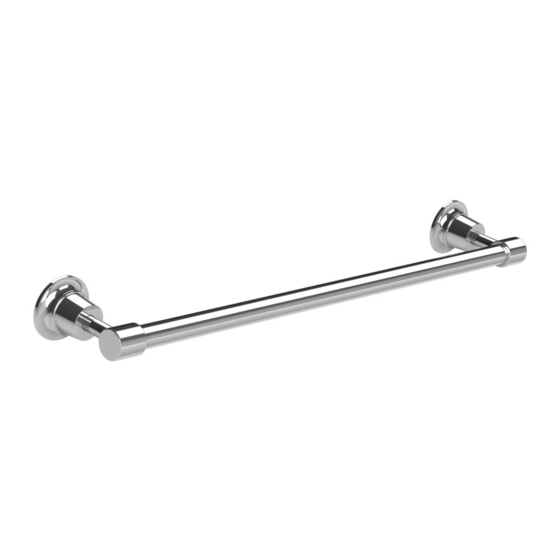

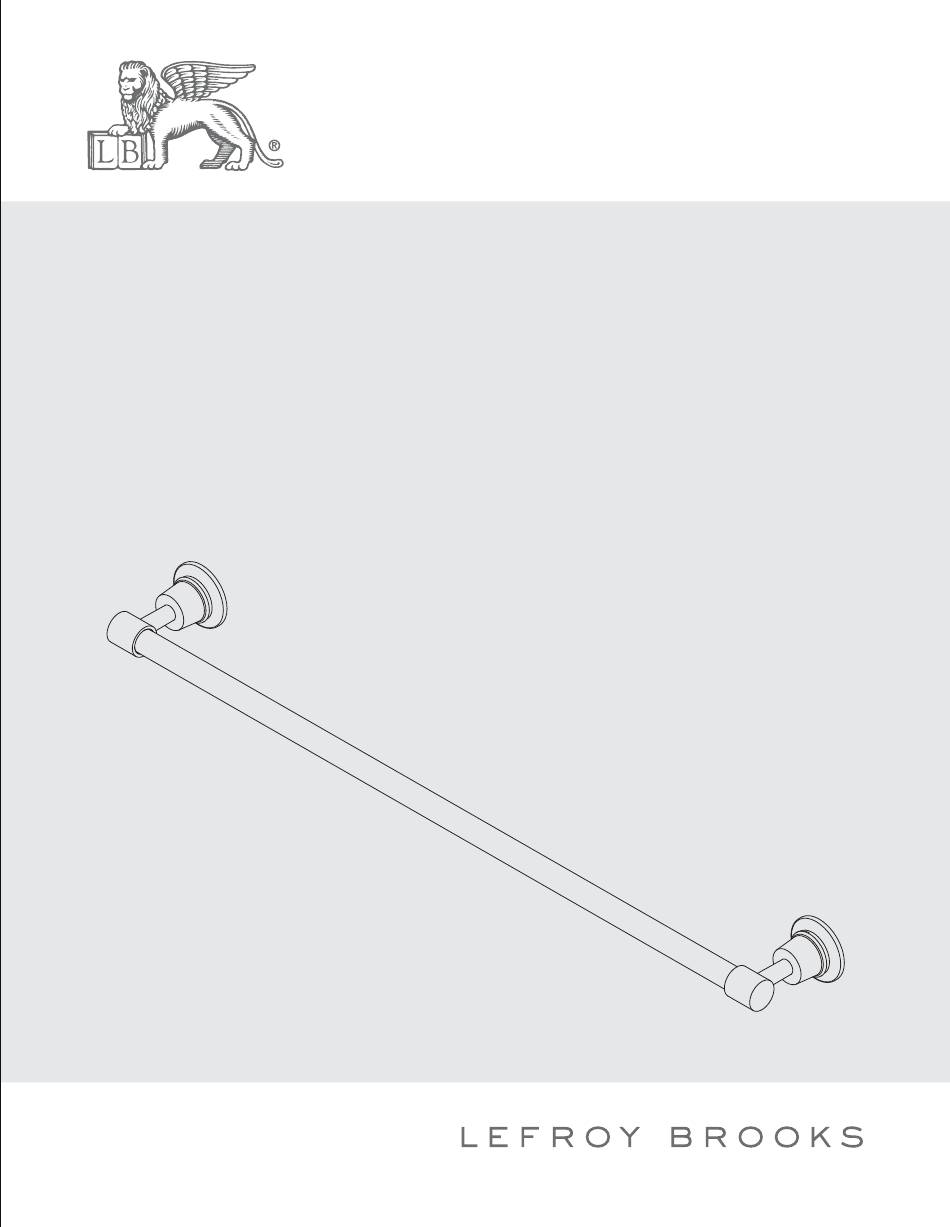

- Page 1 N S T A L L A T O N N S T R U C T O N S M 2 - 5 1 0 2 M 2 - 5 1 0 0 FLEETWOOD 12" TOWEL RAIL FLEETWOOD 24" TOWEL RAIL M 2 - 5 1 0 3 M 2 - 5 1 0 1 FLEETWOOD 18"...
- Page 2 Dimensions in Inches (& Millimetres) M2-5100 M2-5101 M2-5102 M2-5103 Ø15/16" (Ø24mm) Ø1 1/8" (Ø28mm) FOUR LENGTHS=12", 18", 24", 30" Ø1 15/16" (FOUR LENGTHS=304.8, 457.2, 609.6, 762mm) (Ø50mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to...
-
Page 3: Maintenance
W h a t y o u n e e d t o k n o w Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. -
Page 4: Installation Procedure
S t e p s 1 - 2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Position the mounting bracket on the wall Position the mounting bracket to be where required. - Page 5 S t e p 3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Place assembly over the mounting bracket with set screws facing down. Tighten the...
-
Page 6: Parts List
E x p l o d e d V i e w Parts List M2-5100 M2-5101 M2-5102 M2-5103 Towel rail Set screw (292547) (250348/M2-5100) Bracket (245025) (250349/M2-5101) Screw (292550) (250350/M2-5102) Mounting bracket (293014-3) (250351/M2-5103) Anchor bolt and screw (290411) Post (244043) - Page 8 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
