INSTALLATION INSTRUCTIONS
LB 6443 WH
MACKINTOSH DOUBLE MARBLE CONSOLE WITH SOLID BRASS LEGS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB 6443 WH and is the answer not in the manual?

Questions and answers

Summary of Contents for Lefroy Brooks LB 6443 WH

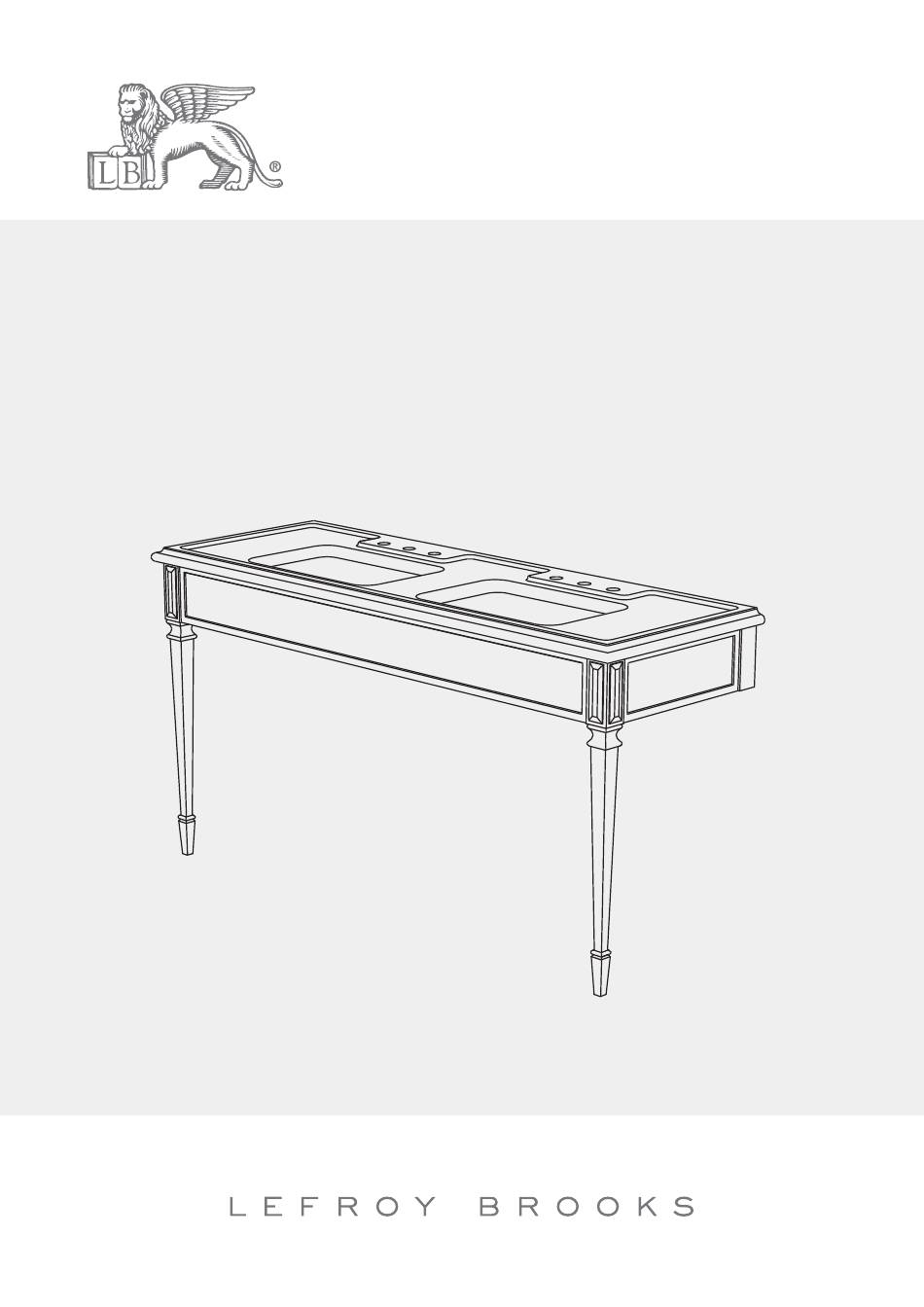

  • Page 1 INSTALLATION INSTRUCTIONS LB 6443 WH MACKINTOSH DOUBLE MARBLE CONSOLE WITH SOLID BRASS LEGS...
  • Page 2: Specifications

    Specifications Dimensions (In Centimetres) LB 6443 WH 46.5 158.6 53.3 Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 3: Exploded View

    Exploded View Spare Parts List LB 6443 WH Mackintosh twin basin marble console top LB 6443 BK A QTY: 1 Mackintosh leg LSD 014 QTY: 2 Marble location bracket LSD 007 QTY: 2 Mackintosh twin basin marble console front LB 6443 BK B...
  • Page 4: Product Care

    Important Information Preparation installed safely and securely. Product Care Take special care when the product is being moved and assembled. Always carry vertically Always store vertically horizontally before unclipping for personal safety and to prevent damage.
  • Page 5: Installation Procedure

    Steps 1-2 Installation Procedure Make sure that the wall and deck are wall plugs and screws. Check and mark the correct placement for We recommend the use of a wall batten. the wall brackets, check level with spirit level then drill holes. Important: Make sure the batten does not obstruct Note: Due to the tolerance of the marble,...
  • Page 6 Steps 3-4 Installation Procedure Product shown as example only Prepare a clean and protective surface. Secure the basins in place using the clips Carefully place the countertop face down and screws provided. onto the surface. Position and fix the basins to the underside of the countertop using suitable mastic.
  • Page 7 Step 5 Installation Procedure Prepare both legs by locating and screwing the threaded bars into each of the holes on the back of the console legs. Attach console metal leg fixing brackets and wing nuts, as shown in diagram...
  • Page 8 Steps 6-7 Installation Procedure Whilst supporting one of the legs, Carefully tighten the wing nuts as to take the weight of these parts. assemble first marble section by slotting the correct end into the corresponding wall bracket. Slot the other end into the Note: corresponding section of the leg.
  • Page 9 Steps 8-9 Installation Procedure Slot the front marble section into the Secure the front marble section to the first corresponding section of the first leg. leg making sure that the first two sections are now held in position by the wing nuts.
  • Page 10 Steps 10-11 Installation Procedure Slot the other end of the front marble Secure the second leg to the front section. section into the second leg.
  • Page 11 Steps 12-13 Installation Procedure Secure the last marble section by slotting Check with spirit level and carefully the correct end into the remaining wall tighten the wing nuts. Make any bracket. Locate the other end into the adjustments that may be necessary. corresponding second leg.
  • Page 12 Steps 14 -15 Installation Procedure Carefully lower the countertop onto the Complete installation. batten and frame and position in place. Check with spirit level. Important: Any brassware should be attached and Note: plumbed by an experienced plumber. the use of an appropriate adhesive.
  • Page 13 Aftercare Cleaning & Maintenance...
  • Page 14 T +44 (0)1992 708 316 WWW.LEFROYBROOKS.CO.UK Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process. The use of trademarks, product design and artwork is subject to licence or agreement with LBIP Ltd. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
