Prime Security Prime AMX 98 Owner's Manual

Vehicle security system
Hide thumbs Also See for Prime AMX 98:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
AMX98 (2) Rev. A - Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prime AMX 98 and is the answer not in the manual?

Questions and answers

Related Manuals for Prime Security Prime AMX 98

Summary of Contents for Prime Security Prime AMX 98

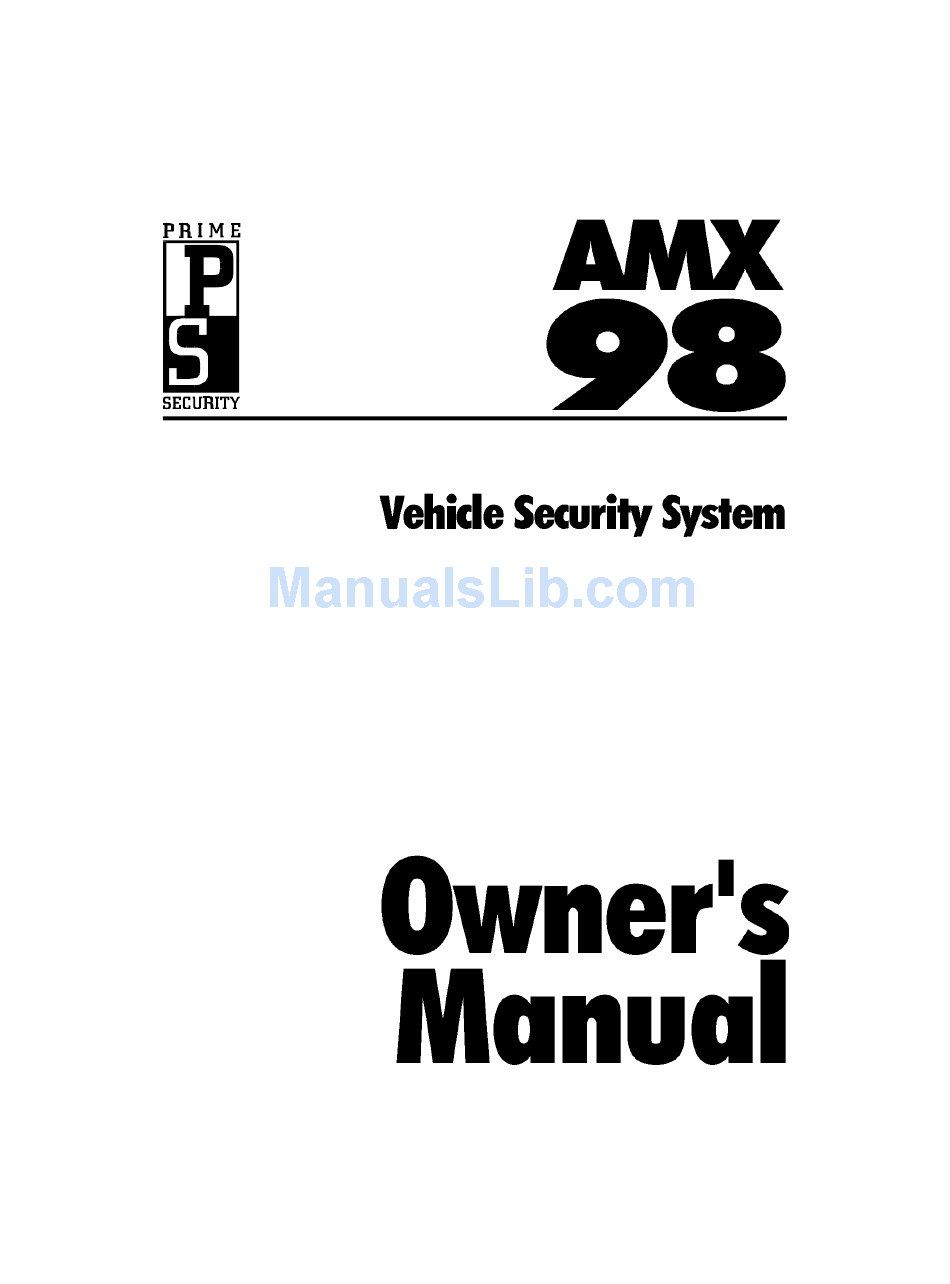

  • Page 1 AMX98 (2) Rev. A - Owner's Manual...

  • Page 3: Table Of Contents

    Table of Contents AMX98........2 Lifetime Warranty ......2 Remote Controls .

  • Page 4: Amx98

    AMX98 Congratulations! You have just purchased the AMX98 vehicle security system manufactured by Prime Security. To fully benefit from the capabilities of your AMX98, we encourage you to read the Owner’s Manual thoroughly before using the system. If you have any problems or questions regarding your system, consult the dealer from whom you purchased this product.

  • Page 5: Electronic Scan Prevention (Esp)

    Electronic Scan Prevention (ESP) Your system includes ESP, which blocks electronic scanner codes preventing unauthorized operation of your system. Instant Remote Control Code Deletion In the event of a lost or stolen remote control, all remote controls can be erased from the system’s memory preventing unauthorized system operation. (See the "Programming Table for Remote Controls"...

  • Page 6: Operating Instructions

    Operating Instructions To Arm The System The alarm can be programmed for active or passive arming. Active arming means the alarm can only be armed by the remote control. Passive arming means the alarm will automatically arm itself. (See the "Programming Table for System Features"...

  • Page 7: User-Programmable Long-Term Silent Arm/Disarm

    User-Programmable Long-Term Silent Arm/Disarm This feature allows you to completely disable the arm/disarm siren chirps until you decide to restore them. (See the "Programming Table for System Features" on page 11.) Two-Stage Unlock Capability If the optional Two-Stage Unlock feature was installed, press the remote ARM/DISARM button for 1-2 seconds and only the driver door will unlock.

  • Page 8: User-Programmable Ignition-Controlled Door Lock/Unlock

    User-Programmable Ignition-Controlled Door Lock/Unlock For the ultimate in security and convenience, the system is programmed to automatically lock your doors when the ignition key is turned "ON" or the engine is started, and will unlock when the ignition key is turned "OFF." This feature can be programmed ON or OFF.

  • Page 9: Keyless Entry In Valet

    To Deactivate Remote-Controlled Valet 1. Press the remote ARM/DISARM and SILENT buttons at the same time. 2. The parking lights will flash 3 times. 3. The LED will turn off to indicate the alarm is no longer in Remote-Controlled Valet. Keyless Entry in Valet Mode While the system is in the Valet mode, you can still use your remote control to lock and unlock the doors as well as activate any optional accessory such as...

  • Page 10: Remote-Controlled Sensor Bypass

    Remote-Controlled Sensor Bypass You can bypass the system sensor(s) at any time. The alarm system will still provide full perimeter protection. To Bypass the Sensor(s): 1. Press the remote TRUNK and OPTION buttons at the same time. 2. The siren will chirp twice. . . pause. . . chirp twice. . . pause . . . chirp twice.

  • Page 11: User-Programmable Siren Duration

    User-Programmable Siren Duration Upon activation, the siren can be programmed to run for 30 or 60 seconds before it will shut off and instantly rearm. (See the “Programming Table for System Features” on page 11.) Alarm State Memory If your vehicle battery is disconnected and later reconnected, the system will automatically return to its last state before power was removed, whether it was armed, disarmed or in Valet Mode.

  • Page 12: User-Programmable Features

    User-Programmable Features All system and remote control programmable features are accomplished by turning the ignition key "ON" (or starting the engine) and flicking the valet switch on and off a preset number of times. The system also allows you to add new remote controls in one step, delete lost or stolen remote controls or rearrange the factory preset remote control functions.

  • Page 13: Programming Table For System Features

    Programming Table for System Features Feature Active / Passive Arming Passive Door Lock Passive Armed Confirmation Ignition-Controlled Door Lock / Unlock Door Ajar Indication Siren Duration 30 Seconds (30 or 60 seconds) Long-Term Silent Arm / Disarm AMX98 (2) Rev. A - Owner's Manual Factory No.

  • Page 14: Programming Table For Remote Controls

    Programming Table for Remote Controls Feature Factory Setting ARM/DISARM Arm/Disarm Button Remote-Controlled TRUNK Button Trunk Release Output Remote-Controlled SILENT Button Silent Arm/Disarm Remote-Controlled OPTION Button Accessory Output ARM/DISARM + Remote-Controlled Valet SILENT Buttsons Remote-Controlled ARM/DISARM + Accessory Output OPTION Buttons Remote-Controlled TRUNK + Sensor Bypass...
  • Page 15 AMX98 (2) Rev. A - Owner's Manual...
  • Page 16 AMX98 (2) Rev. A - Owner's Manual...
