BJ TAKE BLRT Series Quick Start Manual

Important Safeguards:
When using electrical equipment, basic safety
precautions should always be followed including the
following:
Read and follow all safety instructions
1. Danger - Risk of shock - Disconnect power
before installation
2. Product must be installed in accordance with
CEC or your local electrical code. If you are
not familiar with these codes and requirements,
consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE

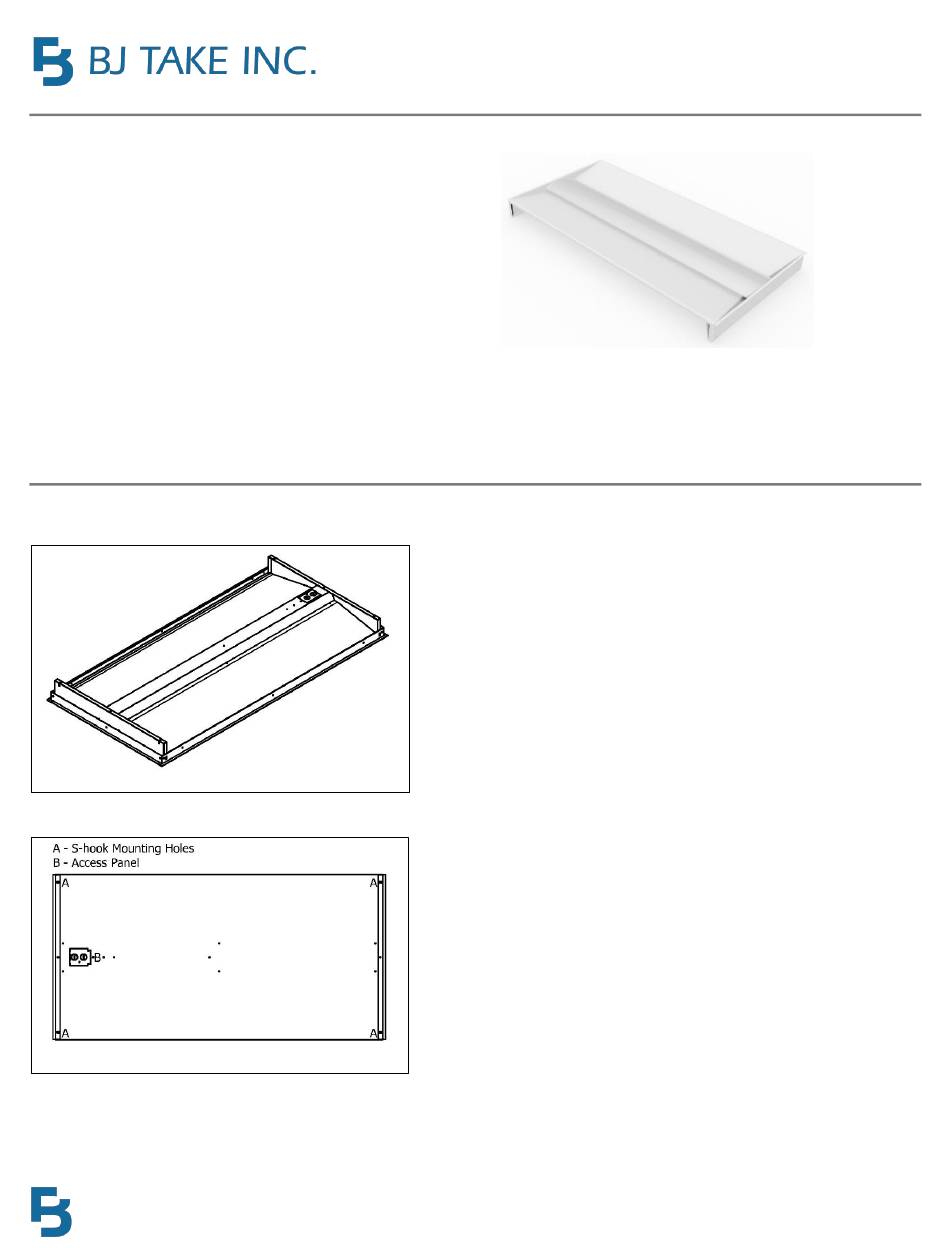

Installation Instructions:
Figure 1.
Figure 2.
BJ Take Inc
220 Ramsey Drive Dunnville, ON N1A 0A7
Notes:
•
Available luminaire lengths are 2x2, 2x4, 1x4,
and 20x60.
Luminaire Installation:
Recessed Mounting
Step 1:
Carefully remove the luminaire from the packaging and
inspect for defects before installing.
Step 2:
Orient the luminaire securely in the T-bar ceiling grid.
(See Figure 1)
Step 3:
Mounting & Wiring
If needed use the four S-hook mounting holes on the
fixture for added security. Remove the access panel and
remove a knockout for AC line input. Install listed
electrical fittings in the knockout hole and connect the
wiring. (See Figure 2)
Note: For wiring instructions please see Electrical
Connections on page 2.
Step 4:
Reattach the access panel.
BLRT Series
LED Recessed Luminaire
1 of 3
