BJ TAKE LWSL Series Installation Instructions

Important Safeguards:
When using electrical equipment, basic safety
precautions should always be followed including the
following:
Read and follow all safety instructions
1. Danger - Risk of shock - Disconnect power
before installation
2. Product must be installed in accordance with
CEC or your local electrical code. If you are
not familiar with these codes and requirements,
consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Installation Instructions:

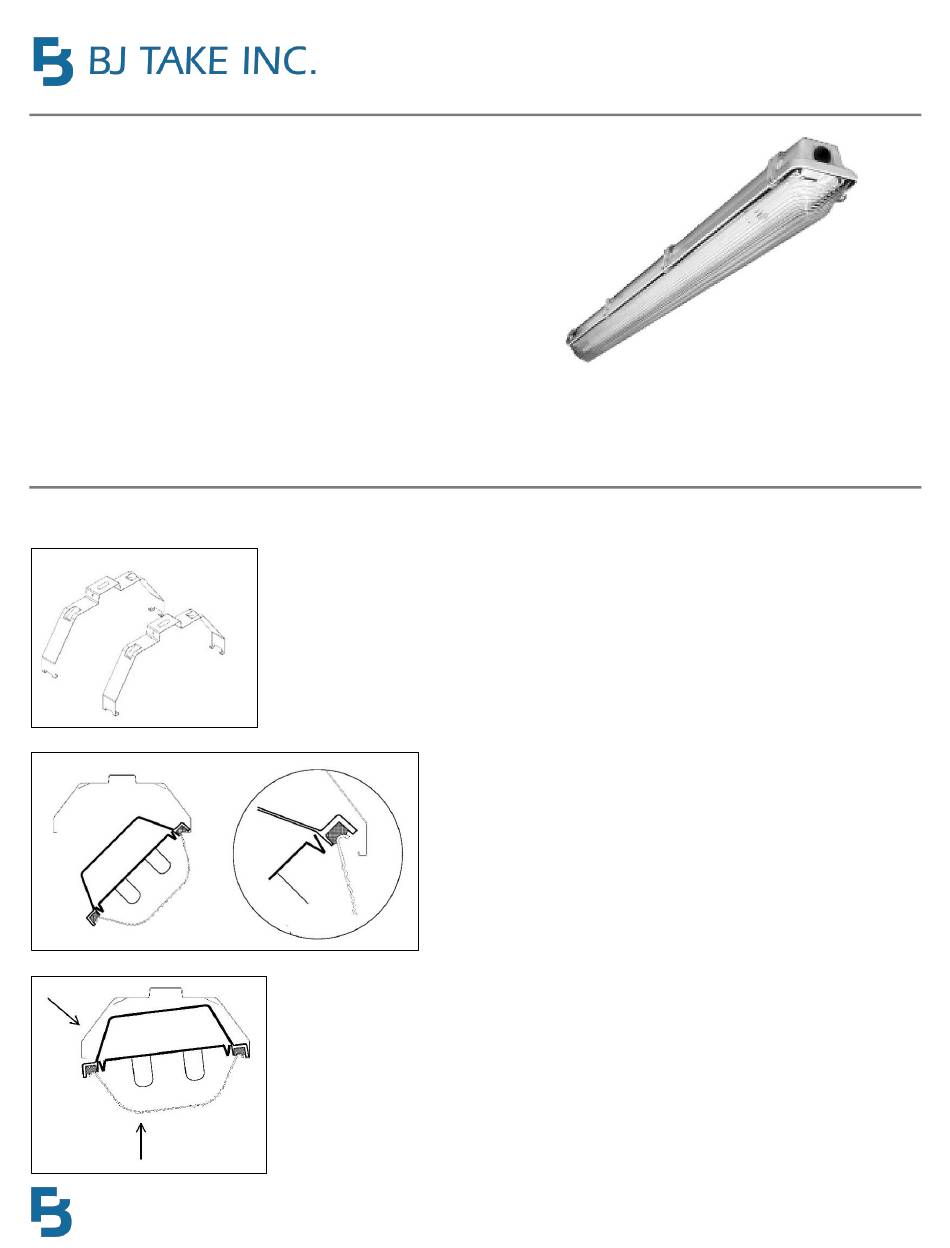

Figure 1.
Figure 2.
Figure 3.
BJ Take Inc
220 Ramsey Drive Dunnville, ON N1A 0A7
LED Surface/Suspended Ambient Luminaire
Notes:
•
Available luminaire length is 4'.
Luminaire Installation:
Mounting Brackets are provided for both surface
mounting and suspension mounting. (See Figure 1)
Surface Mounting
Step 1:
Securely attach the mounting brackets to the mounting
surface. It is recommended that the dimension between
the brackets is equal to about 60% of the enclosure's
length.
Step 2:
Insert one side of the housing into the mounting brackets.
(See Figure 2)
Step 3:
Push up on the enclosure and then press in on the
mounting bracket until the mounting bracket clicks into
place (See Figure 3)
Step 4:
Verify that the enclosure is fully supported before
connecting to a power supply
Suspension Mounting
Step 1:
Securely attach the mounting brackets to the enclosure, it
is recommended that the dimension between the
brackets is equal to about 60% of the enclosure's length.
Step 2:
Secure the chain or wire to the mounting holes on the
brackets. (See Figure 1)
LWSL Series
1 of 3
