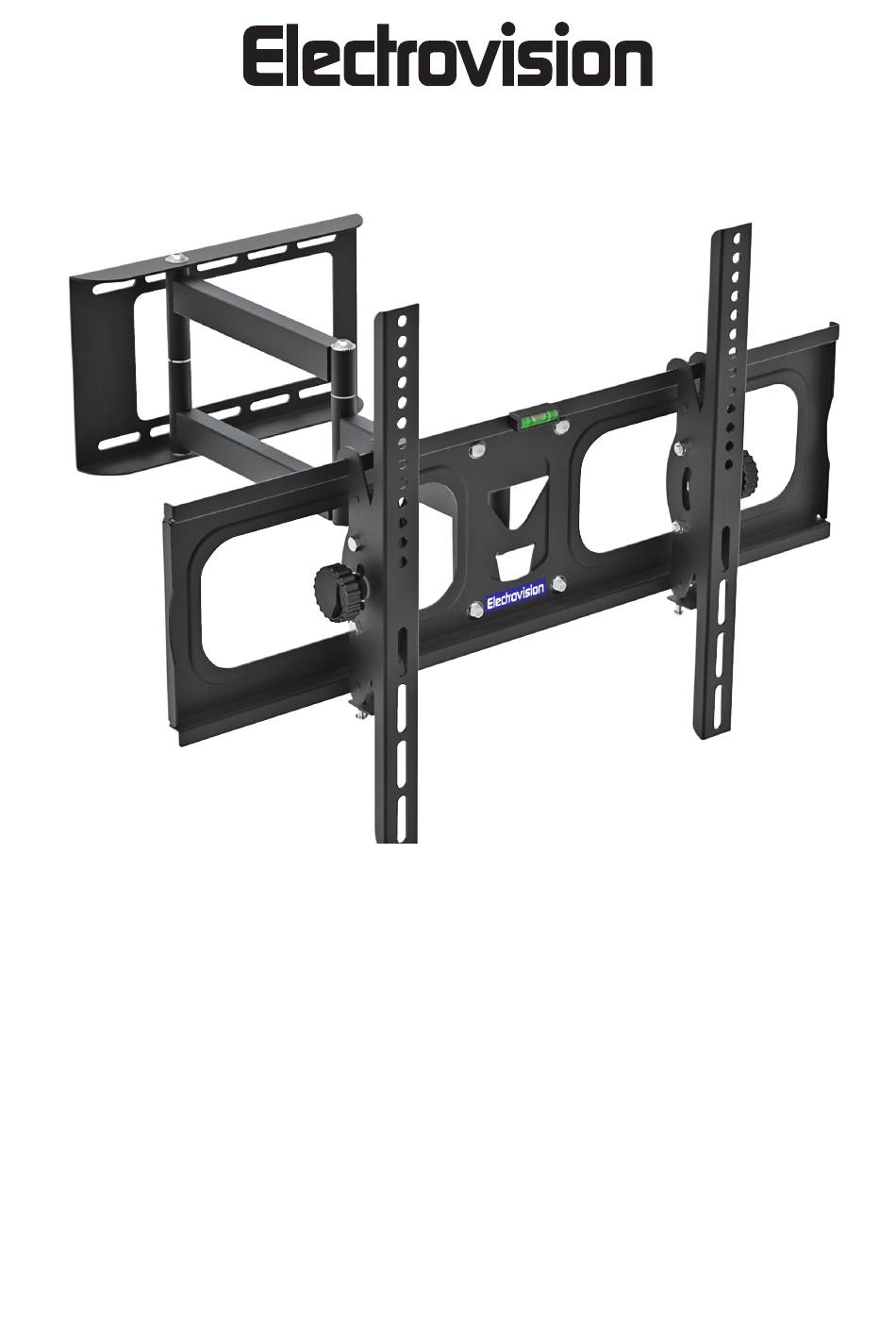

- Page 1 A195FF TILT & SWIVEL TV MOUNTING BRACKET Vesa Size : 600 x 400mm User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Part M4 x 20mm ST8 x 50mm M6 x 20mm Plug 10 x 50mm 6 M8 x 25mm M8 Washer Spacer Spirit level Square Washer TOOLS REQUIRED STUD WALL FITTING INSTRUCTIONS • Select a suitable position to mount the arm. •...
- Page 4 10mm ATTACHING BRACKETS TO TV The A195FF TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the square washer (E) and spacer (D). The washer has two holes, one for screws A &...
- Page 5 ATTACHING BRACKETS TO CURVED BACK TV If the television has a curved or obstructed back it may be necessary to place the spacers under the bracket between the bracket and TV. AB or C ATTACHING TV TO FRAME Due to the risk of damage or injury it is recommended that a minimum of two people should be used to attach the television to the frame.
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
