Summary of Contents for Electrovision A195H

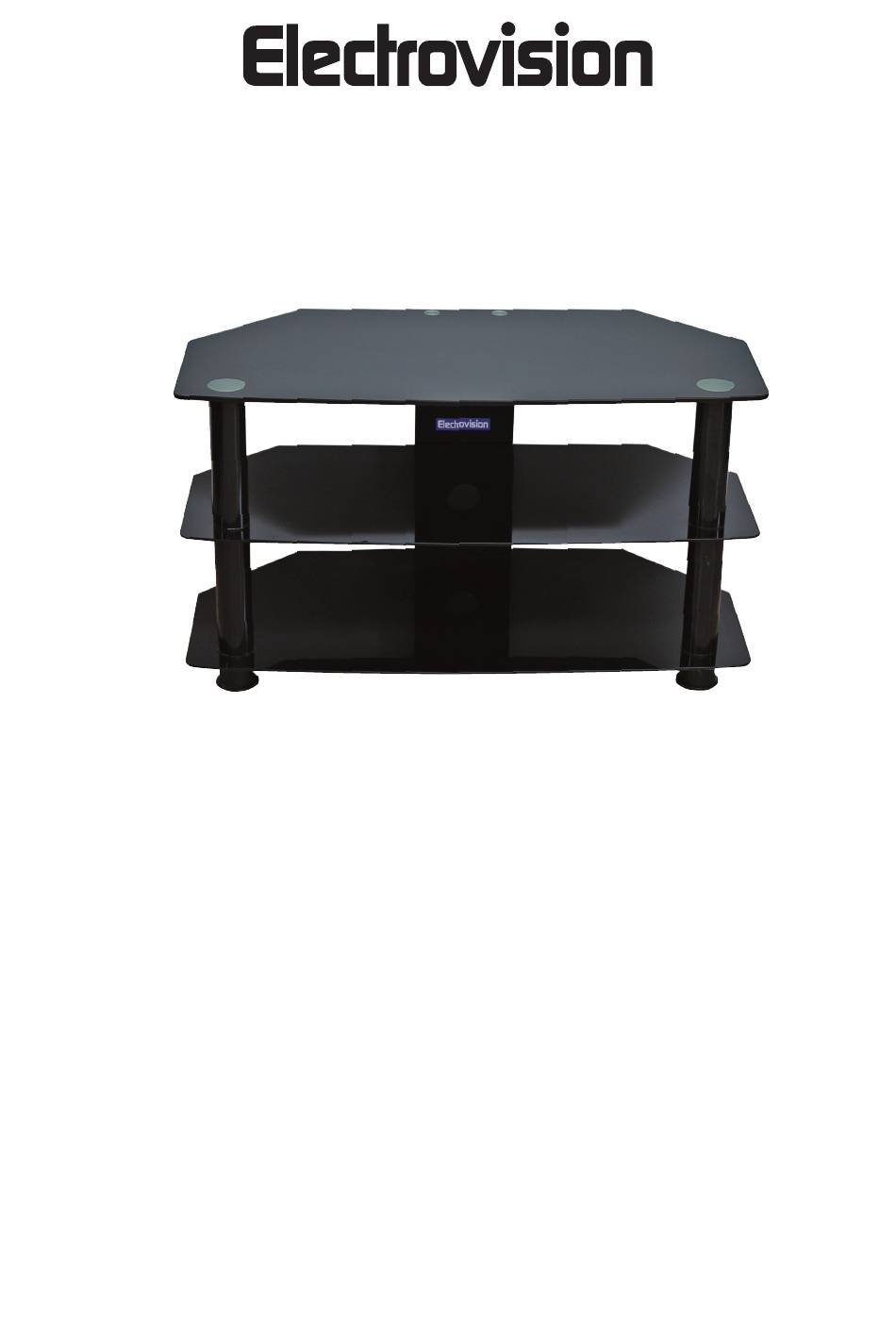

- Page 1 A195H Glass TV Stand User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
-
Page 2: Before Use
IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •... -
Page 3: Required Tools
Item Qty Item Glass Top Foot Pad Glass Shelf Cable Panel Top Tube Panel Clamp Middle Tube Clamp Screw Bottom Tube Hexagon Nut Bolt Rods REQUIRED TOOLS... - Page 4 ASSEMBLY INSTRUCTIONS Place the glass top (A) upside down on the Take the 4 top tubes (C) and slide them over floor, please ensure it is placed on a firm the bolt rods (F).The with no plastic spacer soft surface that annot damage the glass. are fitted first to slot onto the raised caps on Take the 4 bolts rods (F) and screw them the underside of the glass top...
- Page 5 Take the second glass shelf (B) and slot it Take the 4 bottom tubes (E) and slide them over the bolt rods as shown, it should sit over the bolt rods and take the 4 foot pads comfortably on the middle tubes. Make sure (G) and screw them to the ends of the bolt the smooth shiny side is facing downwards.
-
Page 6: Service / Warranty
If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
