bi-amplified connections to crossover

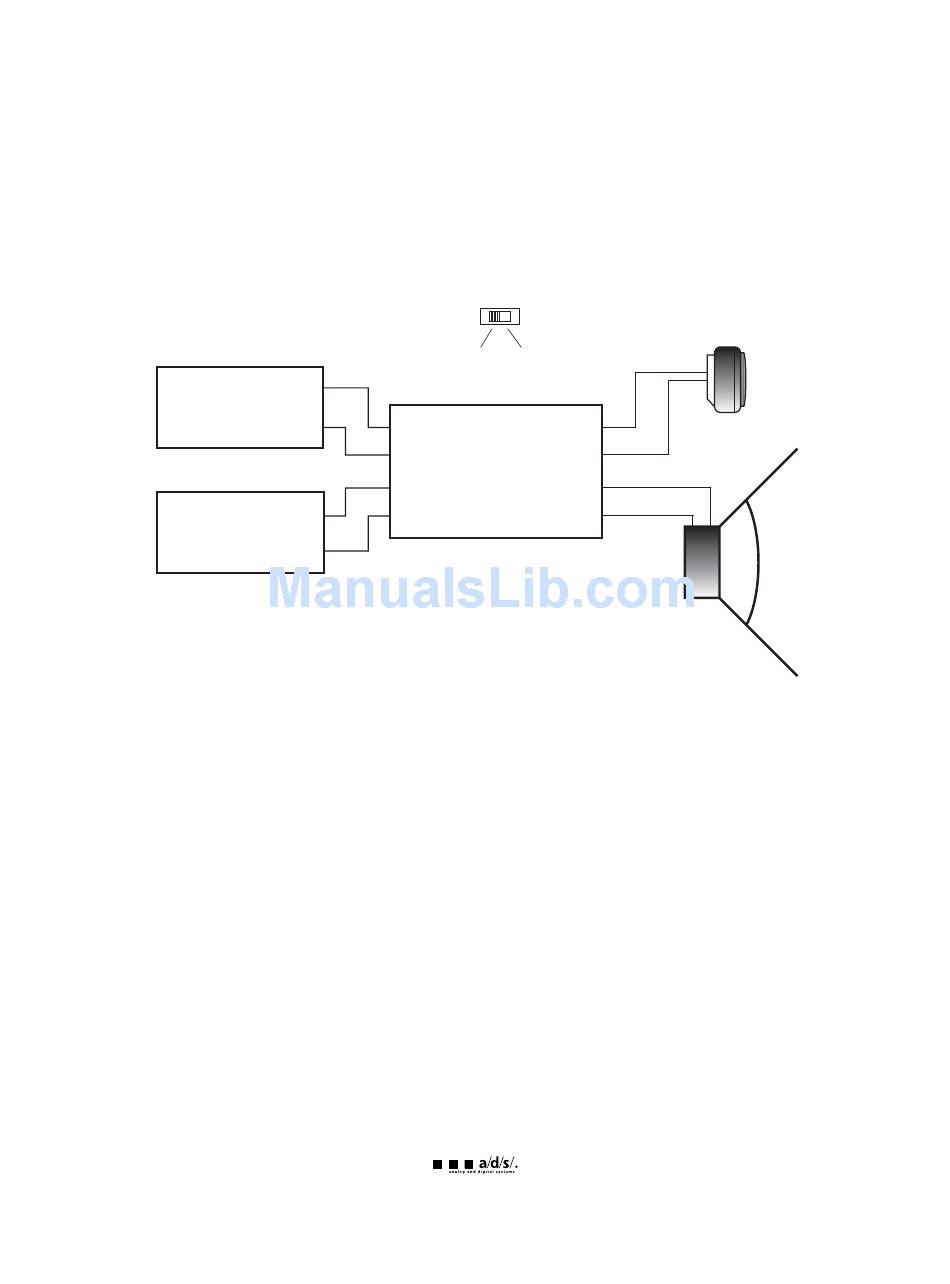

Connections from the crossover to the woofer and tweeter are the same as the normal wiring method.
Connect the amplifier you have chosen for the tweeter to the "Tweeter In" terminals input. Connect the
woofer amplifier to the "Woofer In" terminals.
NOTE: You must move the selectable switch to the Bi-amp position. Failure to set the switch correctly may
cause damage to the amplifiers or the crossover.
+
Tweeter Amplifer
-
+
Woofer Amplifer
-
12
Bi-Amplified
(Switch in Bi-amp Position)
Bi-amp Parallel
IN OUT
+
Tweeter Tweeter
-
Crossover
+
Woofer Woofer
-
Tweeter
+
-
+
-
Woofer
+
-
+
-
