Summary of Contents for a/d/s/ 334im

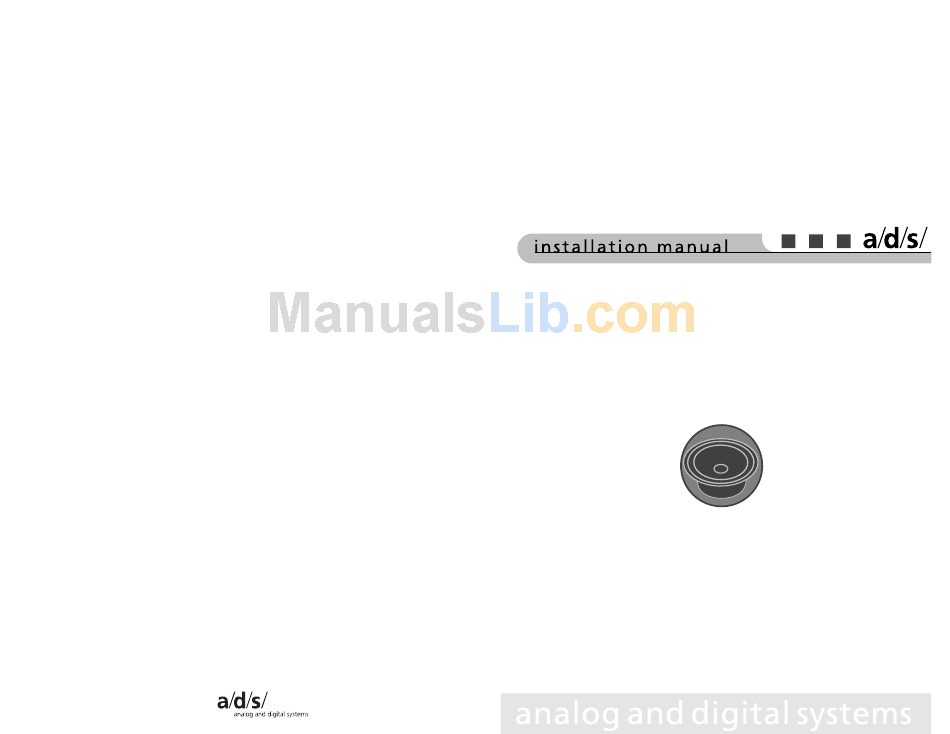

- Page 1 334im 335im 336im PN# 319-1063 rev A 5/99...
-
Page 2: Declaration Of Conformity
300 wildwood avenue woburn, ma 01801 declares, that the product: product name: 334im 335im 336im conforms to the following standards: EN 50 081-1/1992 EN 50 082-1/3.1995 european contact: Axel Perlwitz... -
Page 3: Table Of Contents
table of contents introduction about this manual features of your 3-series loudspeaker warnings and tips system planning amplifier requirements mounting locations controls and connections tweeter level control midrange contour connections to the amplifier speaker wiring speaker wire selection polarity and phasing t e r m i n a t i o n speaker mounting woofer installation... -
Page 4: Features Of Your 3-Series Loudspeaker
features of your 3-series loudspeaker molded woofer basket - the back bone of any good woofer is it’s basket. It provides the proper alignment and support structure for the magnet while the very thin braces guarantee a minimum of early reflections off the basket that would be ordinarily transmitted as sonic colorations through the cone. -
Page 5: Specifications
334im frequency response +/-3dB: 48Hz to 22kHz sensitivity 2.83 volt RMS pink noise measured at 1 meter: 85dB impedance, nominal: 4 Ohms recommended amplifier power watts RMS: 15 to 100 dimensions – woofer/midrange transducer mounting depth (woofer): 2”... -
Page 6: Amplifier Requirements
amplifier requirements a note on power handling Each 3-series speaker system requires a minimum of 20 Watts per channel to achieve reasonable listening volumes in a moving automobile without clipping the amplifier. a/d/s/ recommends 150 Watts per channel as a maximum so as not to exceed the thermal or mechanical limitations of the speaker system. -
Page 7: Midrange Contour
bi-wire connections to the crossover network connections to the woofer and tweeter are the same as the normal wiring method. Connect the amplifier to the tweeter to the terminals marked tweeter input. Connect the woofer amplifier to the woofer input terminals with another run of wire. Important note - you must cut the jumpers that connect the low frequency and high frequency sections of the crossover. -
Page 8: Termination
termination The woofer and the tweeter use .187 spade lugs for electrical connections. Use standard .187 female quick disconnects to attach wires to the speaker. speaker mounting woofer installation The 3-series woofer will fit into standard factory mounting locations using the existing mounting holes in the automobile. -
Page 9: Crossover Installation
crossover installation bi-wiring / bi-amping The 3-series allows conventional wiring, bi-wiring, or bi-amping using the supplied passive crossovers. While conventional wiring will provide excellent sound, bi-wiring or bi-amping will further enhance the performance in no-compromise systems. Bi-wiring uses a separate pair of speaker wires for the high frequency and low frequency signal between an amplifier channel and its associated crossover network. -
Page 10: Tweeter Installation
Feel free to experiment with the position that gives you the most pleasing sound quality. NOTE: this feature only applies to the 335im, and 336im. The tweeter of the 334im does not rotate.
