Leuchtie Pro Easy Charge Instruction Manual

Activation process
Before using the LEUCHTIE for the first time please remove the transport protection (insulation cap).
It is the red stopper located at the opposite side of the size
Opening:
1. Separate the tube from the battery pack by
pulling them apart with a slight angular
movement, taking care not to use excessive
force (1). In doing so, hold the silicone sleeve
onto the battery pack.
2. Remove the red insulation cap (2) and discard.
Fix the attachment loop:
3. In order to secure the LEUCHTIE to a collar/
harness with the enclosed fixation loop, pull the
open end of the tube through both transparent
rubber rings of the loop (3).
Closing:
4. Insert the tube straight into the battery pack.
Make sure that the contact spring at the end of
the LED tubing goes in straight and is not bent
over in any way.
5. Press tube and battery pack firmly together as
far as it can go. There must be no gap between
the battery pack and the tube.
Recharging the batteries
The enclosed batteries are pre-charged – the LEUCHTIE is ready for
immediate use.
We recommend charging the batteries once a week or after approx. 10
– 15 hours burn time overnight.

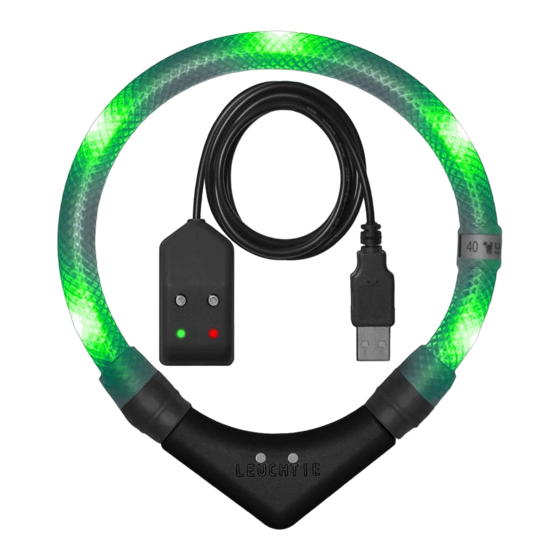

6. Connect the USB cable of the charging station to a USB power source
(e.g. USB power supply unit or USB socket of a car/ PC, etc.). The
green LED of the charging station indicates that it is ready for use.
7. Place the charging contacts of the LEUCHTE on to the charging station.
The magnetic charging contacts will automatically align. The red LED
shows that the batteries are recharging.
8. The batteries are charged as soon as the green LED starts to light up in
addition to the red LED.
Instruction Manual
LEUCHTIE
Easily rechargeable via USB charging station
Please read and observe the following safety instructions to enable you
to get the most out of your new LEUCHTIE as possible. Please keep this
document in a safe place.
®
Pro Easy Charge
sticker.
Stand: 05/2019
