Summary of Contents for BioMax N-X90W

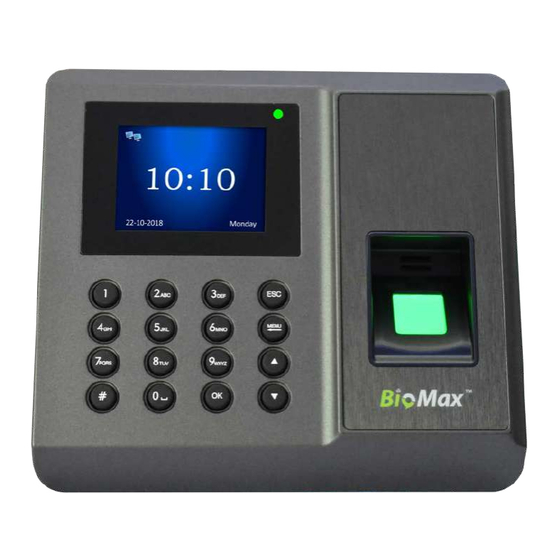

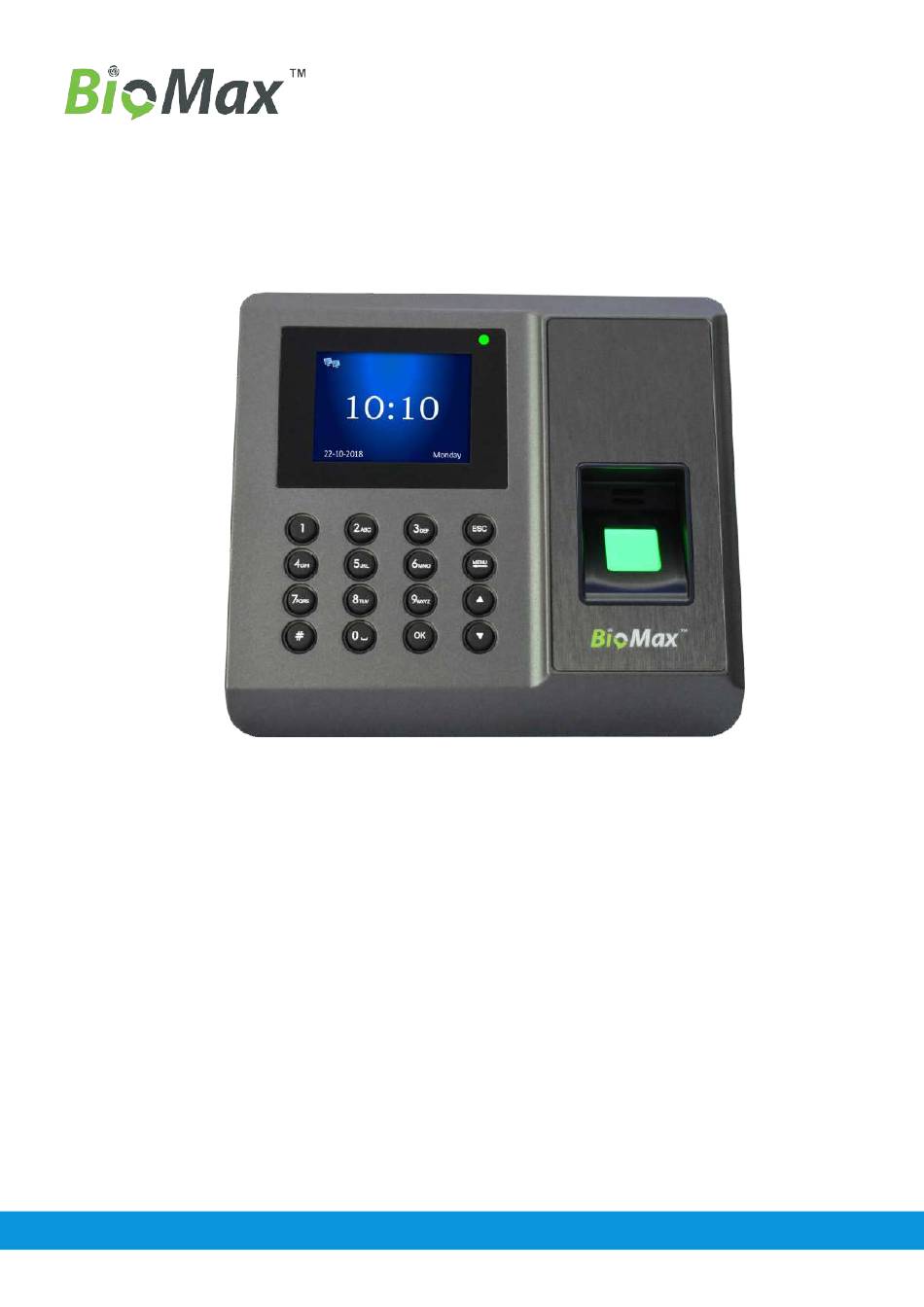

- Page 1 User Manual N-X90W Fingerprint Time Attendance and Access Control www.biomaxsecurity.com...
- Page 2 Access Control Instruction Manual Access Control Manual 1. Notice for use 1.1 Access Control wiring diagram Access Control External Power wiring diagram（recommendation） General Power wiring diagram： 1 ...
- Page 3 Access Control Instruction Manual (Note: Use ordinary power wiring need to be in parallel with a diode in both ends of the lock, Prevent released Back-EMF by electromagnetic to burnout the access control system.) 2 Installation Equipment 2.1 Device Install Step 2.1.1 Recommended installation height is 1.2m from the ground to the camera(Suitable for height of user: 1.5m-1.8m), kindly adjust by height of user;...
- Page 4 Access Control Instruction Manual Step 1: Install the device and power on the device; Step 2: User Registration, Fingerprint Registration, ID / IC Card, Password, Assignment Rights; Step 3: user authentication, confirm the registration fingerprint, ID / IC card, the password is available; Step 4: View records, through the access control software to download the original records of equipment for data analysis.
- Page 5 Access Control Instruction Manual 4.1.2 Password registration Click “Password”, According to the hint enters the employee number and name, Enter the same password twice to complete the registration, then back to initial interface. Click " " when verifying, enter the employee number, Press "OK" to enter the password for verification. 4.1.3 ID/IC Card registration Click “Card”, According to the hint enter the employee number and name, Made ID / IC card close to the sensing area, Read the card number and display the card number to complete card registration.
- Page 6 Access Control Instruction Manual 6.1. Device Settings In “Settings” menu, Click “Device” enter the device settings. Device number, 1-255 optional Device No.: Language: Switchable language Admins: It can set up to 10 Warning Tone: Verify the success of voice prompts Volume: 1-6 optional Time: Enter the time setting, click YYYY-MM-DD to set the date, Click hh:mm:ss to enter the time setting, Click...
- Page 7 Access Control Instruction Manual 6.4 LockCtrl Click “LockCtrl” in Settings menu, Enter the access control function. 6.4.1 Time Setting "Time" refers to setting the time zone to allow open the door, It is an important part of access control settings. And up to 255 “time” can be defined. it can be set to 6 time periods each "time", Each time zone refers to the valid time period within 24 hours, 6 time zones are "or"...
- Page 8 Access Control Instruction Manual 6.4.4 Lock Type Set There are three types of Lock Type Set: NO, Open, Close; "NO" means not using the door sensor; "Close" means the door magnetic is close status, If the door is open status, an alarm occurs; "Open" means the door magnet is open status, If the door is closed more than the set time, an alarm occurs, the default is NO.
