OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cruz and is the answer not in the manual?

Questions and answers

Cory
May 11, 2025

It's not connecting to the app

0

Related Manuals for 3PLUS Cruz

Summary of Contents for 3PLUS Cruz

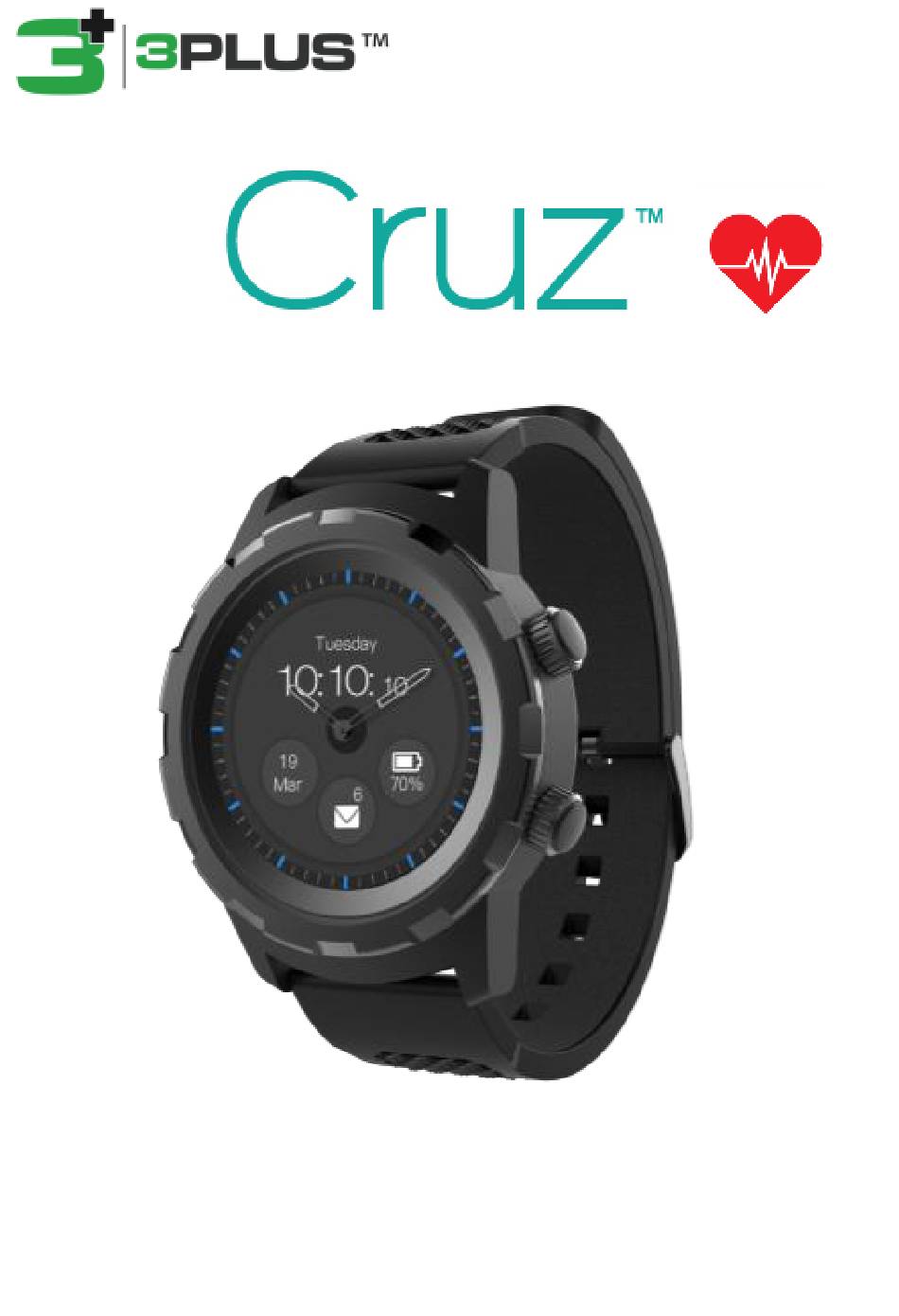

  • Page 1 OWNER’S MANUAL...
  • Page 2 Overview What’s in the box Device Info Operating Conditions Charging App setup Wearing the device Cleaning the device Screen operation Device operation Time/date interface Activity Heart rate Record workout Sleep tracker Notifications APPS 10) Customer support 11) Troubleshooting 12) Supported devices 13) Product specifications 14) Remarks...

  • Page 3: What's In The Box

    1. What’s in the box Cruz Hybrid Watch Charging Dock Micro-USB Cable...

  • Page 4: Device Info

    2. Device Info...

  • Page 5: Operating Conditions

    -13°F to 131°F (-25°C to 55°C) Water resistance The Cruz Hybrid Watch is water resistant up to 3 ATM. This means that you may wear and use your watch during exercise (exposure to sweat is ok), in the rain and while washing your hands.

  • Page 6: Battery Life

    The Cruz Hybrid watch uses a single battery that powers the touch screen and the analogue movement. On a full charge, the Cruz Hybrid watch’s touch screen can be used up to 3 days with all functions and features. This means tracking your daily activity, alerting you of incoming calls or notifications etc.
  • Page 7 Plug the power adaptor into an electric socket. Place the Cruz Hybrid Watch onto the charging dock. 2. Place the Cruz Hybrid watch onto the charging dock. Make sure the back of the watch can rest against the charging dock. (as seen in the image above)
  • Page 8 When the watch is not on the charger, the LED indicator will always be blue. When the Cruz Hybrid watch is on the charging dock, the LED indicates that the watch is properly placed in the dock and charging.

  • Page 9: App Setup

    Google Play store. Pairing to the App There are two different ways to pair the Cruz Hybrid watch to the 3Plus Hybrid App. The first method is via QR code and the second method is via Bluetooth scanning.
  • Page 10 Manual Pairing Method • Turn on the Bluetooth on your mobile device. • Open the 3Plus Hybrid App on your mobile device. • Log in or Sign up if you are a new user. • Select the Cruz Hybrid watch...
  • Page 11 Bluetooth devices. (Keep your watch near your mobile device) • Look for your Cruz Hybrid watch’s code (#00000). The code should be the same one that shows up on your Cruz Hybrid watch’s screen. • A pairing request will appear on the watch. Tap on the green check mark or press the top button to confirm the Bluetooth pairing.
  • Page 12 • When the watch connects successfully, the watch and the 3Plus Hybrid App will say “Pairing is complete”. If the pairing failed, the watch and your mobile device will alert you. Please repeat the same steps to pair the watch again.
  • Page 13 Scan Calibration Tap Start to begin Hold the Cruz Hybrid Watch up to the camera Align the Cruz watch case to the outline of the viewfinder in the app Hold the position until the watch hands adjust to the current time.
  • Page 14 Manual Calibration A brief video will appear on the app to show you how this works. Tap Start to begin Turn the scale or tap the + / - to align the hours hand to the 12 o’clock position. Tap Next when the hours hand is aligned.

  • Page 15: Wearing The Device

    6. Wearing the Device Wrap the watch around your wrist and pull the band through the hole in the buckle. Pull the band until the watch feels slightly tight on your wrist but it should be able to slide slightly back and forth on your wrist. Insert the buckle pin through one of the band's holes to secure the band in place.

  • Page 16: Cleaning The Device

    7. Cleaning the Device Make sure to clean regularly It is strongly recommended to regularly clean your watch’s band after workouts or prolonged use. Moisture from sweat and dirt from other means can build up underneath the band and can cause skin irritation. Use water or rubbing alcohol DO NOT use soaps, sanitizers, or household cleaners to clean the band.

  • Page 17: Screen Operation

    8. Screen Operation You can use several basic gestures and the two buttons to interact with the Cruz watch. Swipe Left or Right Swipe Up or Down Press Button Turn on the screen by pressing the top button once. The screen will turn off, by default, after 10 seconds of inactivity.

  • Page 18: Device Operation

    9. Device Operation Overview Long press to change your watch face. Swipe left to find the activity menu...
  • Page 19 Swipe right to view the APPs menu Swipe up to view the quick settings menu Swipe down to view the notification center...
  • Page 20 Button Navigation Press the top button to turn on the screen, return to the main page from any screen or put the watch in standby mode. Press and hold the top button to turn ON/OFF the watch. Press the bottom button to turn on the screen, go one step back in the watch and exit a menu.
  • Page 21 Quick Settings Brightness Adjust the brightness of the watch by tapping the icon and selecting the desired level of screen brightness. Airplane Mode Airplane mode turns off all the Bluetooth connectivity to your mobile device. When the icon is grey, this feature is OFF.
  • Page 22 Settings Tap on the gear icon to access the watch’s settings. You can adjust settings like quick view, vibration, message font size and backlight time on the watch. You can also reset or restart the watch from this menu. Activity You can check your daily steps, distance travelled, calories burned, and active minutes from the watch.
  • Page 23 3Plus Hybrid App and check your daily activity data and historical data from your phone. *Note* The watch’s activity tracking will reset to 0 on the watch every night at midnight. Dashboard...
  • Page 24 You can check your daily goal completion through the 3Plus Hybrid App’s dashboard. Tap the Heart icon to see a graph of your heart rate over time. Tap the Weight icon and enter your daily weigh-ins to track your weight over time.

  • Page 25: Heart Rate

    regularly to record your daily activity data. We recommend syncing the watch to the app daily. Heart rate Heart rate (ON) Heart rate (OFF) To manually turn on the heart rate monitor, swipe to the heart rate interface and tap Start to measure your current heart rate.
  • Page 26 For all day heart rate monitoring, use the Heart Rate Auto Track setting in the Hybrid App. Set the frequency of when you want your heart rate to be checked. You can also set High/Low HR limit alerts to let you know if you go beyond or below a certain heart rate level.
  • Page 27 Heart rate Range Alert: You can select your Heart Rate Range Alert in the Settings section of the Hybrid App. This is helpful during exercises and workouts to make sure you stay within your target zone. Heart rate too high Heart rate low...
  • Page 28 Record Workout The Cruz Hybrid Watch can record your workout data so you can monitor your hard work overtime. When you’re ready to record your workout, select the Record Workouts icon (the sprinting man icon) from the Apps section. Press the Play icon to start recording.
  • Page 29 Workout results will be displayed once the recording is completed: Time of workout, steps, distance, calories burned and average heart rate. View your entire workout history from the 3Plus Hybrid App. Keep track of your progress to see how your fitness has improved over time!
  • Page 30 Sleep tracker The Cruz Hybrid watch can monitor your sleep quality and track your sleep patterns. Press the icon on the left to turn the sleep tracking mode on. Press the chart icon on the right to view your previous sleep history.
  • Page 31 You can also set a preset sleep schedule to program the watch to automatically track your sleep during a specific time frame. Go to the 3Plus Hybrid App’s menu, select settings, then select “Preset Sleep”. In this setting screen, turn Auto Sleep On and adjust your...
  • Page 32 Cruz Hybrid watch, or you can select “All Notifications” to receive all the alerts that are listed. Note: Notifications will only work if the Cruz watch is paired to your smartphone device via Bluetooth and is within Bluetooth range.
  • Page 33 Text Messages (SMS) Get alerts when you receive a new incoming text message. You can read the text message(s) directly from the Cruz Hybrid watch screen by tapping on the text notification. Calendar Stay on top of your busy schedule and check your calendar events directly from your watch.
  • Page 34 Social Media Stay connected with your favorite social media apps and view the notification details directly from the screen. (Not compatible with all apps. Facebook, Twitter, WeChat, Snapchat, Instagram, Line and WhatsApp are compatible. Others may also apply.) Email Check and read your new incoming email messages right from your watch.
  • Page 35 Goals: With the Hybrid App, you can create activity goals for each type of daily activity. Select the Edit icon in the top right corner of the dashboard to customize your daily goals for steps, distance, calories burned, active minutes, hours slept and weight.
  • Page 36 You can also view the total amount of medal’s you’ve earned on the 3Plus Hybrid App. Go to the Activity dashboard and select “Medals” to see a breakdown of your latest achievements! Compare your success with your friends by viewing their medal count in their leaderboard...
  • Page 37 APPS Find your favorite apps for fitness, weather, music and more in the apps section. Music Control your music from your wrist. Play a song on your phone first, then open the music app on your watch to skip, replay, play, pause, and control the volume.
  • Page 38 Find My Phone If you misplace your phone, the Cruz Hybrid watch can help you find it. Tap on the icon and the watch will send a signal to your smartphone to vibrate and play the default alarm tone.
  • Page 39 Weather You can check the weather forecast of your current location on the Cruz Hybrid watch. You can pick between a daily view or a 5-day forecast to help plan your schedule. Follow the steps below to add another location...

  • Page 40: Quick Setting Menu

    Quick Setting Menu The Quick setting menu allows you to easily access shortcuts to help you customize your watch. Swipe up on the main screen to access this menu. Settings Find the settings by tapping on the gear icon in the quick settings menu. You can check your battery’s percentage, adjust the screen timeout time and more in the...
  • Page 41 Brightness Set the watch’s screen brightness by tapping on the different sections to increase or decrease the brightness. Do not Disturb Mode Silence all your notifications and features that use vibrations. This does not turn off the Bluetooth connection between your watch and the app.

  • Page 42: Customer Support

    10. Customer support 3Plus customer support is ready to help. You can find helpful FAQs, how-to videos, and troubleshooting answers on our support site. Web support: http://support.3plususa.com Email support: service@3plususa.com...

  • Page 43: Troubleshooting

    Bluetooth connection distance is within 30 ft. This may vary depending on the amount of interference between your mobile device and the Cruz Hybrid watch. 3. Make sure the watch is paired with your mobile device and to the 3Plus Hybrid App.
  • Page 44 1. Make sure the notifications settings are turned On. 2. Your mobile device must be within Bluetooth range of your Cruz Hybrid watch. 3. Try restarting your Cruz Hybrid Watch. 4. Try force closing the Hybrid App on your mobile device then reopening it.
  • Page 45 Why is my watch not charging? 1. Make sure the connected power source is working. 2. Make sure the Micro-USB is firmly connected to the charging dock. 3. Make sure the watch is correctly placed onto the charging dock. The watch face will change to show the watch is charging.

  • Page 46: Supported Devices

    12. Supported devices iPhones using iOS 8.0 and above Android Android phones using Android 5.0 and above...

  • Page 47: Product Specifications

    13. Product specifications Display：1.22” TFT 240*240 Processor： Freescale + Nordic Optical heart rate monitor: AMS Battery Capacity: 200mAh Lithium-polymer Bluetooth: BLE 4.0 Waterproof classification：3 ATM. Weight： Approximately 0.18lbs (79g)
  • Page 48 14. Remarks Please charge the watch when it has low power. Please use our standard charging dock to charge the watch. Do not leave the watch in a damp environment or expose it to liquid when charging. Please do not expose the watch to extreme temperatures.
