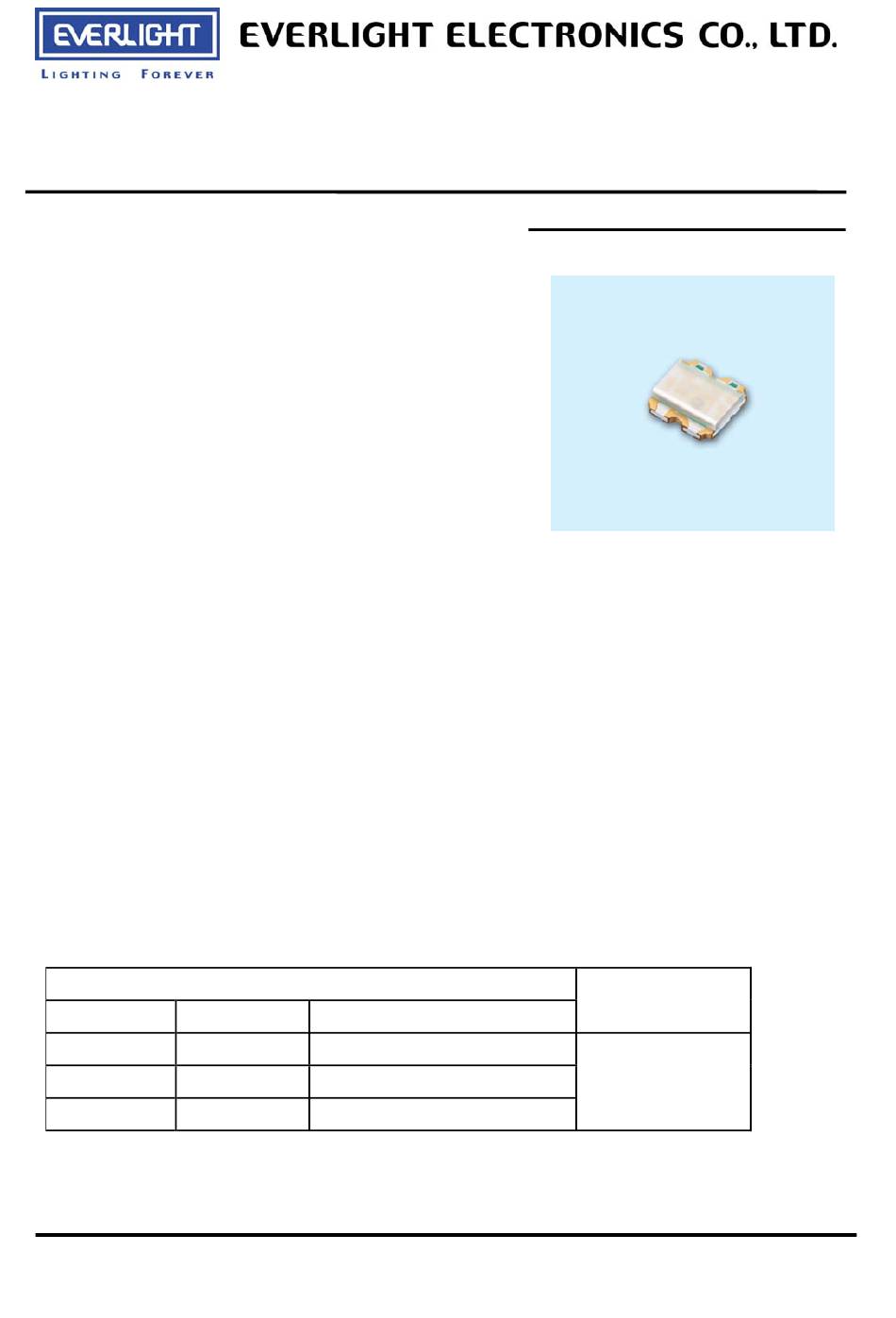

Technical Data Sheet
0.35mm Height Chip LED with Full Color
Features
․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow
solder process.
․Full-color type.
․Pb-free
․The product itself will remain within RoHS
compliant version.
Descriptions
․The 19-337 SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in
telephone and fax.
․Flat backlight for LCD, switch and symbol.
․General use.
Device Selection Guide
Type
Material
R6
AlInGaN
GH
BH
Everlight Electronics Co., Ltd.
Device No. : DSE-0002657
Chip
Emitted Color
InGaN
Brilliant Green
InGaN
http://www.everlight.com
Prepared date: 07-May-2010
19-337/R6GHBHC-A01/2T
Brilliant Red
Blue
Resin Color
Water Clear
Rev. 2
Page: 1 of 12
Prepared by : Ashley Kuo
Advertisement
Related Manuals for Everlight 19-337/R6GHBHC-A01/2T
Summary of Contents for Everlight 19-337/R6GHBHC-A01/2T
- Page 1 Chip Resin Color Type Material Emitted Color AlInGaN Brilliant Red Water Clear InGaN Brilliant Green InGaN Blue Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 1 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 2 19-337/R6GHBHC-A01/2T Package Outline Dimensions Cathode mark Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 2 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 3 -40 ~ +90 Reflow Soldering : 260 ℃ for 10 sec. Soldering Temperature Tsol Hand Soldering : 350 ℃ for 3 sec. Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 3 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010...
- Page 4 ----- ----- Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 4 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 5 Ambient Temperature Ambient Temperature Ta (°C) Radiation Diagram Ta=25°C Forward Current Derating Curve Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 5 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 6 Forward Current Derating Curve 0° 10° 20° 30° 40° 50° 60° 70° 80° 90° Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 6 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 7 Forward Current Derating Curve 0° 10° 20° 30° 40° 50° 60° 70° 80° 90° Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 7 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
-
Page 8: Label Explanation
LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 8 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010... - Page 9 Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Aluminum moisture-proof bag Label Desiccant Label Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 9 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
- Page 10 = 20 mA 22 PCS. 1000 Hrs. High Temperature / 85℃/ 85%RH 1000 Hrs. 22 PCS. High Humidity Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 10 of 12 Device No. : DSE-0002657 Prepared date: 07-May-2010 Prepared by : Ashley Kuo...
-
Page 11: Precautions For Use
3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 11 of 12 Device No. - Page 12 (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C...
