Technical Data Sheet
Chip LED with Bi-Color(Multi-Color)
Features
․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow
solder process.
․Multi-Color type.
․Pb-free.
․The product itself will remain within RoHS
compliant version.
Descriptions
․The 18-225 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in
telephone and fax.
․Flat backlight for LCD, switch and symbol.
․General use.
Device Selection Guide
Type
Material
B6
R6
AlGaInP
Everlight Electronics Co., Ltd.
Device No:DSE-00005365
Chip
Emitted Color
InGaN
http://www.everlight.com
Prepared date: 05-Jul-2011
Blue
Brilliant Red
18-225/B6R6C-C01/3T
Resin Color
Water Clear
Rev 2
Prepared by: Ashley Kuo
Page: 1 of 11
Advertisement
Related Manuals for Everlight 18-225/B6R6C-C01/3T
Summary of Contents for Everlight 18-225/B6R6C-C01/3T

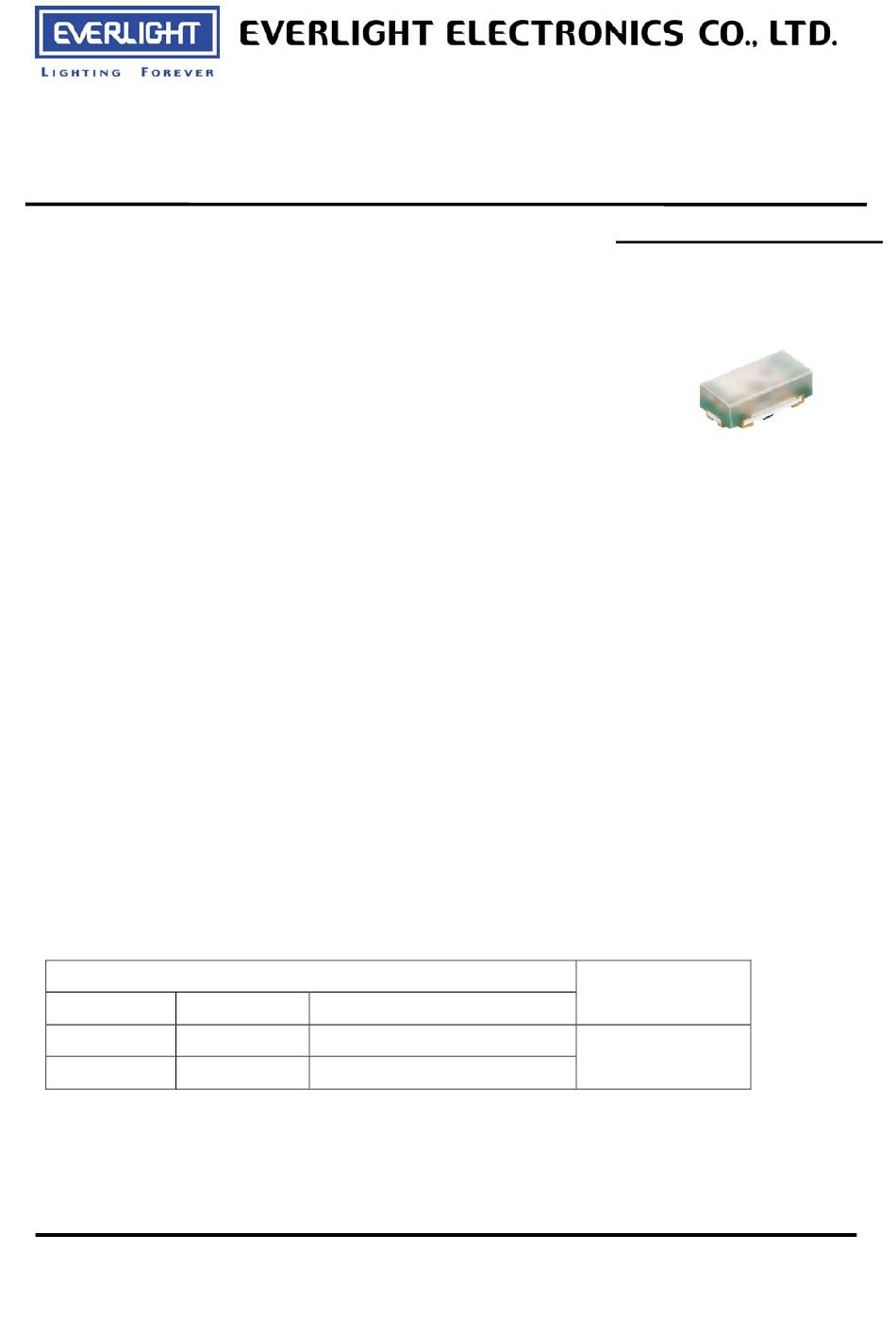

- Page 1 ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Resin Color Type Material Emitted Color InGaN Blue Water Clear AlGaInP Brilliant Red Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 1 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 2 Package Outline Dimensions Blue Blue Polarity Recommend Soldering Pad Cathode Mark Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 2 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 3 Tstg -40 ~ +90 Reflow Soldering : 260 ℃ for 10 sec. Soldering Temperature Tsol Hand Soldering : 350 ℃ for 3 sec. Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 3 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 4 =5mA Dominant Wavelength ----- ----- △λ Spectrum Radiation =5mA ----- ----- Bandwidth =5mA Forward Voltage μA Reverse Current ----- ----- Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 4 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 5 Radiation Diagram Ta=25°C Forward Current Derating Curve 0° 10° 20° 30° 40° 50° 60° 70° 80° 90° Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 5 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 6 Forward Current Ta=25°C Ambient Temperature Ambient Temperature Ta (°C) Radiation Diagram Ta=25°C Forward Current Derating Curve Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 6 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
-
Page 7: Label Explanation
REF : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 7 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011... - Page 8 Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Moisture Resistant Packaging Aluminum moisture-proof bag Label Desiccant Label Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 8 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
- Page 9 DC Operating Life = 20 mA 22 PCS. 1000 Hrs. High Temperature / 85℃/ 85%RH 1000 Hrs. 22 PCS. High Humidity Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 9 of 11 Device No:DSE-00005365 Prepared date: 05-Jul-2011 Prepared by: Ashley Kuo...
-
Page 10: Precautions For Use
3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 10 of 11... - Page 11 (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C...
