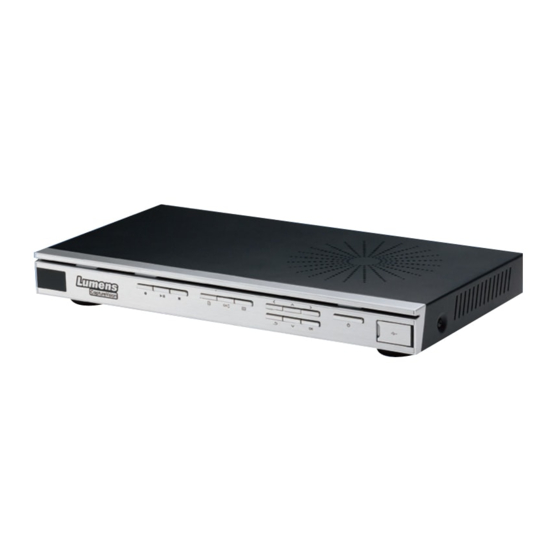

- Page 1 VS-LC101 CaptureVision Station Quick Installation Manual -English [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.Mylumens.com/support.php...
-
Page 2: Preparation Before Use
Please activate your warranty: http://www.MyLumens.com/reg z To download the updated software, multilingual manuals, and Quick Start Guide, please visit Lumens™ web site at: http://www.mylumens.com/support.php z To ensure successful installation, please be sure to follow each of the following steps 1.1 Equipment requirements... -
Page 3: How To Connect
2 How to connect Please follow the following instruction to complete the connection. NO. Function How to connect Power Connect the power cord Image input Connect the computer HDMI to the HDMI IN 1 Note: Replace the image input device from the computer to other devices as needed, e.g. - Page 4 OSD menu. C-Video Cable DVI cable Monitor or HDTV [Remark] For VC-A20P relevant use and operation method, please visit Lumens website; download and read the VC-A20P operation manual. Ô Before begin the following settings, please confirm that the connection has been...
- Page 5 3.3 Connect to the VS-LC101 Webpage (including log in) [Remark 1] For the computer that remotely controls VS-LC101, the network interface card needs to be set to obtain the IP address automatically. Open the web browser on the computer Enter the VS-LC101 IP address, e.g.: http://192.168.2.118 [Remark 2] Chrome or Safari browser recommended Select [Admin] Input the VS-LC101 Admin account and password.
- Page 6 3.4 Settings 3.4.1 Confirm the time setting. z Confirm the time to be correct. If time modification is required, use the manual setting or select other NTP servers. 3.4.2 Format a hard drive z Open the [Local Storage Setting] page, z Select a hard drive.
- Page 7 3.4.3 Connect webcam z Open the [Source Setting] page z Execute the [Refresh] function of [Discovery]. z After the search is completed, the list will show the webcam that can be connected. Click the webcam. z Input the VC-A20P account password Administrator: admin Password: 9999 z Press [Submit] and wait until the state of the webcam is [OK]...
- Page 8 z CH1: Click [Channel1]; select [Computer] from the channel name; set image as [Video Port]; Select image port [HDMI1 or VGA1] Î z CH2: Network Camera Æ Select Camera z Select other already connected video inputs for CH3, CH4 respectively. z Press [X] at the upper right and close the setting window.
- Page 9 If the above function can be performed normally, then the installation is completed. Use of the operational functions or detailed descriptions of various settings and functions of VS-LC101, please refer to Lumens website; download and read the VS-LC101 User Manual.
-
Page 10: Product Overview
4 Product Overview 4.1 Host Computer Front Panel Description NO. Name Function Descriptions Remote IR Receiver sensor Indicator Record / Power Function Record / Play / Pause / Stop / Menu / Channel / Split Display keyboard shortcuts Operation Up / Down / Left / Right / Return / OK selection key Power button Power Switch... - Page 11 5 Remote control brief description NO. Icon Name Function Descriptions Power Turn on / off. Play Play the video. Press again while playing, the video will pause. Previous / Previous / Next video while playing. Next Video During recording, switch between recording image version type configurations.
