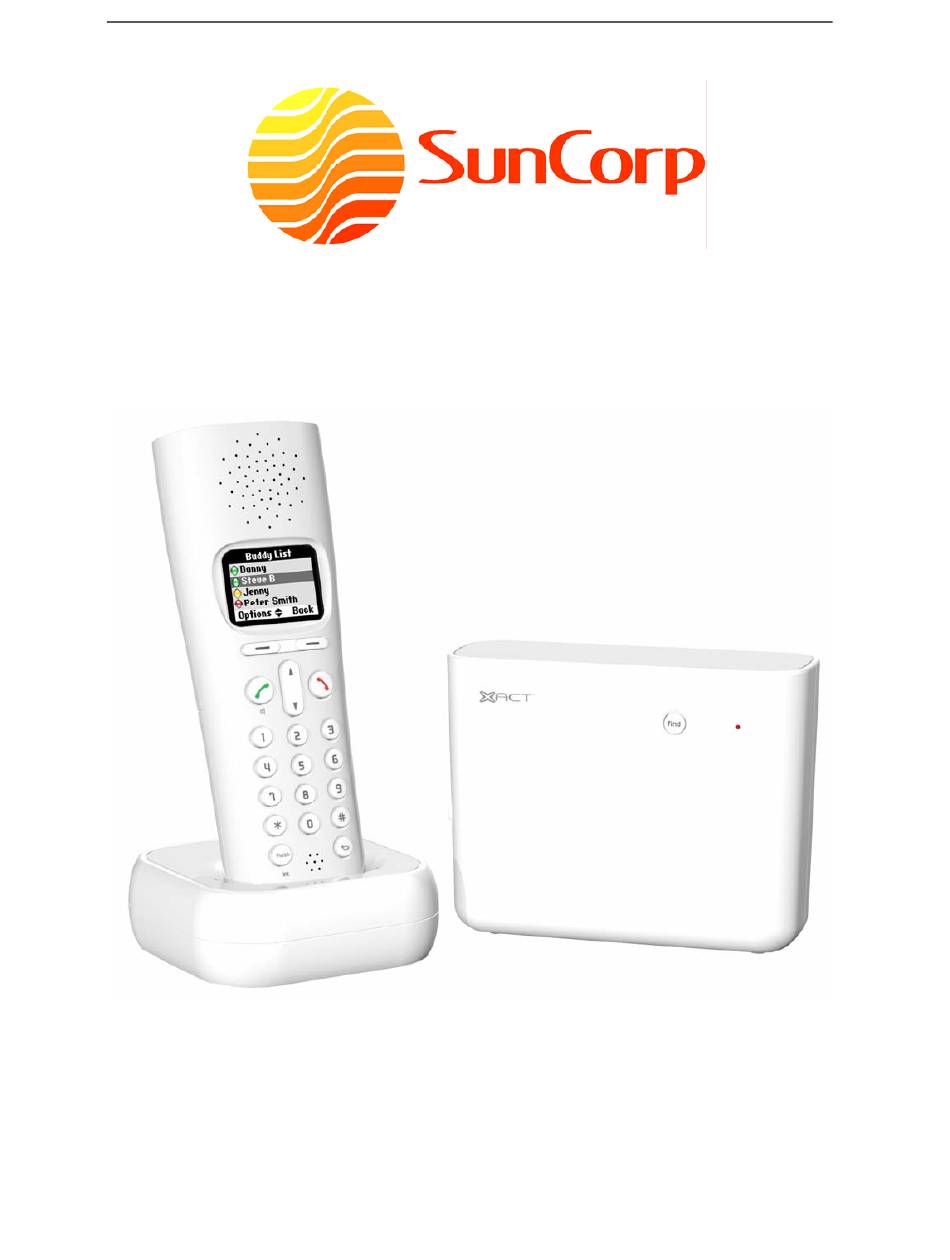

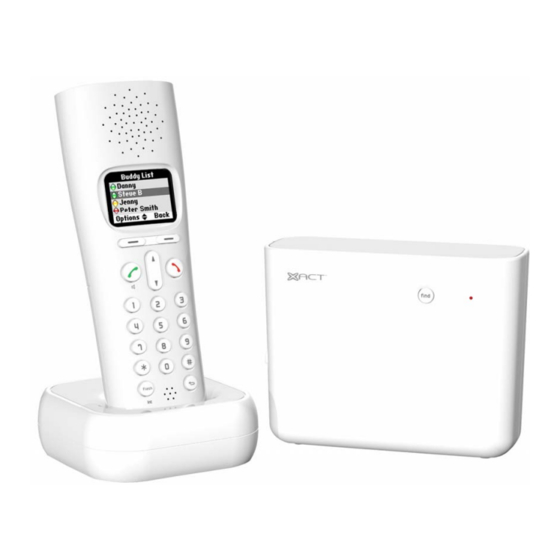

  • Page 1 Product Definition Document SunCorp Communications (Europe) Ltd. Product Definition Document Version 4.0 Customer: XACT / US Model: XV6602 Roadmap Number: 33-2 Cabinet Reference: B67 + PD366...

  • Page 2: Fcc Interference Information

    FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Fcc Rf Radiation Exposure Statement

    FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.

  • Page 4: Instructions To User's

    INSTRUCTIONS TO USER'S This equipment complies with Part 68 of the FCC Rules. On the back side is a label that contains, among other information, the FCC registration number and the ringer equivalence number (REN) for this equipment. You must, upon request, provide this information to your local telephone company.
  • Page 5 This product meets the applicable Industry Canada technical specifications The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five Operation is subject to the following two conditions: (1) this device may not cause interference, and...

  • Page 6: Panel Layout

    Product Definition Document SunCorp Communications (Europe) Ltd. 2 Panel Layout 2.1 Handset Front 1 4096 Colour; Full Graphic (1.4 inch), 128 x 128 pixels LCD 2 Soft Key 1 3 Talk On / Handsfree (toggle between handset and handsfree mode)

  • Page 7: Black Box

    Product Definition Document SunCorp Communications (Europe) Ltd. 2.2 Black Box 1 USB Connector Port 2 Power / In Use / Event Indicator LED 3 Page Key 2.3 Charger Front PD366...

  • Page 8: Additional Information

    Product Definition Document SunCorp Communications (Europe) Ltd. 3 Additional Information 3.1 Menu Icons Calls List Clock & Alarm Settings Registration 3.2 Wallpapers Sunset Butterfly Island PD366...
  • Page 9 SunCorp XACT Model XV6602 Dual Phone - VoIP MMI version 1.2 01 December 2006...

  • Page 10: Display Icons

    HANDSET PANEL LAYOUT - Dual Phone DISPLAY ICONS Own status icons: Buddies status icons: Offline Offline Mobile Not Available Online Online Mobile Online Skype Me Skype Me SkypeOut Handset Away Away SkypeOut Inactive Not Available Not Available SkypeOut Blocked Menu Phone Do Not Disturb Do Not Disturb...
  • Page 11 PRODUCT - MENU TREE Buddy List Options Handset Nush Manage Buddy KEY_DOWN KEY_SOFT_1 Paul Active View Peter Set Status Sandra Skype Credit Missed Calls Menu Skype Options Back Voicemail Select Back KEY_SOFT_2 Contact Alex Handset Alex Show Details KEY_DOWN KEY_SOFT_1 Bill Edit Entry Charles...
  • Page 12 Phone Menu Phone Menu Phone KEY_SOFT_2 KEY_DOWN KEY_UP KEY_SOFT_2 Contact Dialed Calls Handset Alex Nush Handset Bill Gabi Charles SunCorp David Menu Phone Options Back Options Back Menu Skype KEY_SOFT_2 KEY_TALK KEY_SOFT_1 KEY_UP Dialed Calls Dialed Calls Handset Handset Show Details...

  • Page 13: Call Handling

    End Call Select Back KEY_TALK KEY_SOFT_2 KEY_SOFT_1 Handset Handset Swap Call SunCo... Jane Conference Paul Jenny Nush Calling Mute On 00:05 SunCorp UK 02:21 Options Mute Options Mute Options UnMute Select Back KEY_END KEY_SOFT_1 KEY_SOFT_2 KEY_SOFT_1 Options Handset Invite SunCo...
  • Page 14 Incoming a PSTN call ... KEY_DOWN KEY_SOFT_2 Options Options Swap Call Swap Call Join Conference SunCo... Jane End Call Invite External Call Jenny Paul SunCorp UK Contact Hold Call Start Call Conference Conference 05:05 06:30 End Call Options Select Back Options Mute Select...
  • Page 15 Incoming a PSTN call ... Options Handset Handset Swap Call Nush Paul KEY_SOFT_1 Join Conference Sandr... Invite Hold Call External Call Incoming Call Ringing SunCorp UK Nush Start Call Quiet Quiet Reject Options Mute End Call Select Back KEY_TALK KEY_SOFT_1 KEY_SOFT_1 KEY_SOFT_1...
  • Page 16 CALL HANDLING (cont.) Flows continuing from previous page ... Conf. Paul Sandr... Conference 05:55 Options Mute KEY_SOFT_1 Options Swap Call Invite Hold Call Start Call End Call Select Back KEY_DOWN Options Swap Call Invite Hold Call Start Call End Call Select Back KEY_SOFT_1...
  • Page 17 CALL HANDLING (cont.) MAKING CALLS INTERNAL CALLS To make a PSTN call (Pre Dialling): To make an internal call: 1. Make sure your KEY_SOFT_2 is labeled Phone. 2. Enter your destination number and press KEY_TALK. If you make a mistake, press 1.

  • Page 18: Transfer Calls

    Skype Conferencing - while on a Skype call, it is possible to invite another buddy from your Skype buddy list to join your call. Internal Call SunCorp To start a Skype conference call with another Skype buddy: Handset 2 00:06 1.

  • Page 19: Skype Call Options

    CALL HANDLING (cont.) SKYPE CALL OPTIONS CALL WAITING While you are on a Skype call the following options are available: 1. While you are on a Skype call if another Skype call arrives - you will hear a beep sound and the display is presented as screen P17. - Swap Call - Join Conference At this time, the two softkeys will change from...
  • Page 20 MANAGE BUDDY Options Buddy List Jane Handset Manage Buddy Jane Skype Name: KEY_SOFT_2 Active View Paul JCoolza Set Status Sandra Speed Dial No: Skype Credit (Empty) Missed Calls Wenfei Menu Skype Select Back Options Back Call Back KEY_DOWN KEY_SOFT_2 KEY_SOFT_1 Buddy List Jane Options...
  • Page 21 ACTIVE VIEW Best Buddies List View: Online Buddies List View: Show All Buddies List View: Active View Handset Handset Handset Best Buddies Long press KEY_5 Online Only Show All Menu Skype Menu Skype Menu Skype Select Back KEY_DOWN KEY_DOWN KEY_DOWN Buddy List Best Buddies Online Buddies...
  • Page 22 ACTIVE VIEW (cont.) BUDDY LIST CHARACTERISTICS: To set your Active View: 1. All buddies are grouped in the following orders: 1. At your buddy list view (screen F1), press Options (KEY_SOFT_1). > Skype 2. Scroll to Active View and press Select (KEY_SOFT_1).
  • Page 23 VOICEMAIL Voicemail The handset allows you to check your voicemail and let you make the call back from the Handset Jane Long press voicemail list. KEY_1 Paul Sandra When a new voicemail is left - the reminder icon will appear on the handset idle display Nush and the event indicator LED on the handset and base will flash.

  • Page 24: Missed Calls

    MISSED CALLS Missed Calls The handset allows you to check your missed calls and let you make the call back from Handset Jane Long press the missed calls list. KEY_3 Paul Sandra When a call is missed the reminder icon will appear on the handset idle display and the Nush event indicator LED on the handset and base will flash.

  • Page 25: Set Status

    SET STATUS Handset Handset KEY_DOWN Skype Offline Menu Skype Menu Skype Ignore Back KEY_DOWN KEY_SOFT_2 KEY_SOFT_1 Buddy List Set Status Buddy List Jane Offline Jane Jenny Online Jenny Sandra Skype Me Sandra Away Will Not Available Will Options Back Select Back Options Back...
  • Page 26 SET STATUS (cont.) Changing your status from Offline: Set Status To set your Skype status: Handset Offline Long press KEY_4 Online 1. At your buddy list view (screen G1), press Options (KEY_SOFT_1). Skype Me 2. Scroll to Set Status and press Select (KEY_SOFT_1).

  • Page 27: Skype Credit

    SKYPE CREDIT CHAT ALERT Skype Credit The handset is able to notify you when a new chat is Handset No Skype Credit Handset Long press received. KEY_6 When a new chat arrives, the handset will display the missed chat icon. The missed chat icon is removed once you have interacted with all the new incoming chat on your PC.
