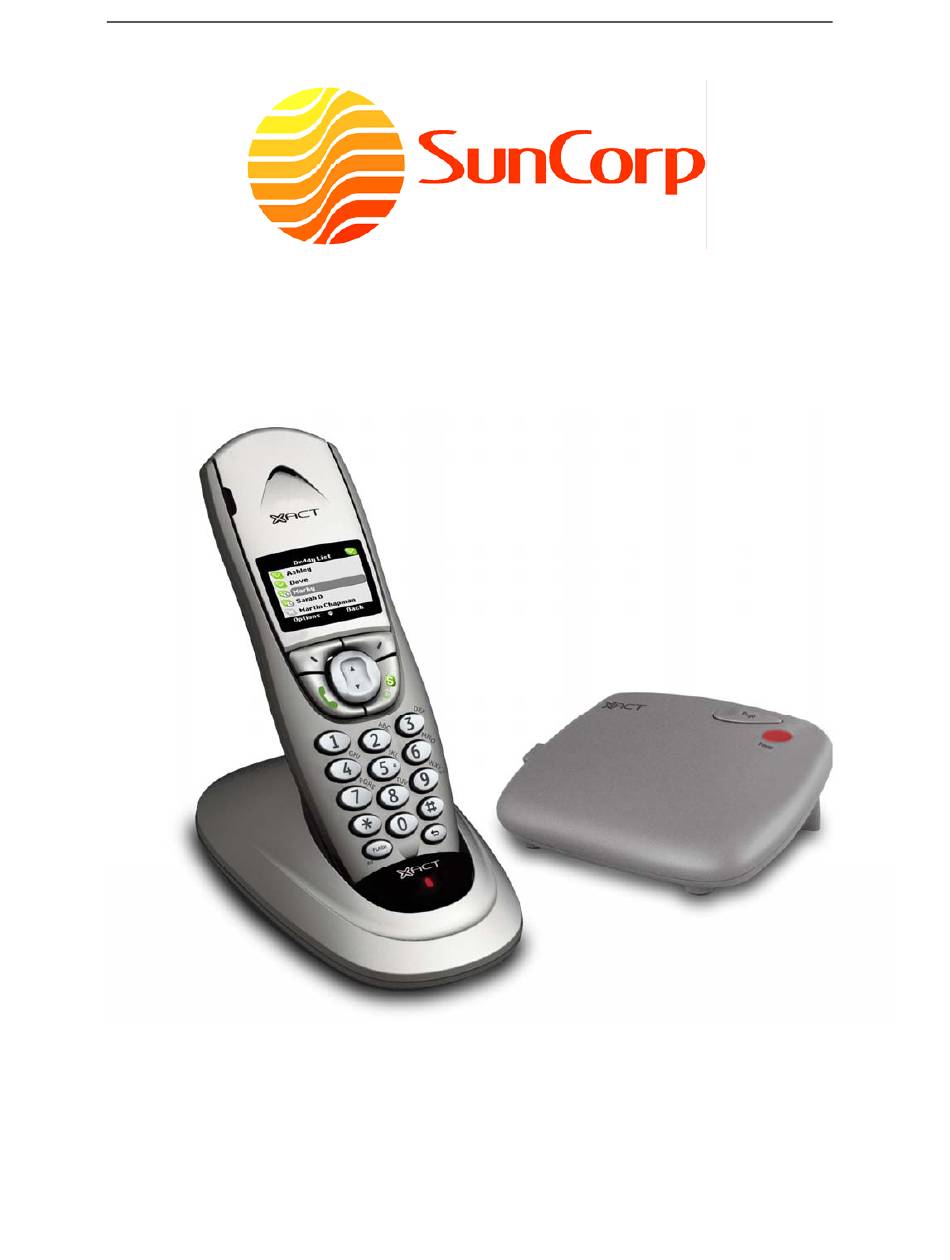

- Page 1 Product Definition Document SunCorp Communications (Europe) Ltd. Product Definition Document Version 2.0 Customer: XACT / US Model: XVP5601 Roadmap Number: 33-3 Cabinet Reference: B18 + B32 PD374...
-
Page 2: Fcc Interference Information
FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Fcc Rf Radiation Exposure Statement
FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. - Page 4 This product meets the applicable Industry Canada technical specifications The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five Operation is subject to the following two conditions: (1) this device may not cause interference, and...
-
Page 5: Panel Layout
Product Definition Document SunCorp Communications (Europe) Ltd. 2 Panel Layout 2.1 Handset Front 1 4096 Colour; Full Graphic (1.4 inch), 128 x 128 pixels LCD 2 Soft Key 1 3 VoIP Talk On / Handsfree (toggle between handset and handsfree mode) -
Page 6: Black Box
Product Definition Document SunCorp Communications (Europe) Ltd. 2.2 Black Box 1 USB Connector Port 2 Power / In Use / Event Indicator LED 3 Page Key PD374... - Page 7 Product Definition Document SunCorp Communications (Europe) Ltd. 2.3 Charger Front 1 Power / In Use / Event Indicator LED PD374...
-
Page 8: Additional Information
Product Definition Document SunCorp Communications (Europe) Ltd. 3 Additional Information 3.1 Menu Icons 3.2 Wallpapers Sunset Butterfly Island PD374... - Page 9 SunCorp XACT Model XVP5601 Skype Phone MMI version 1.1 30 November 2006...
-
Page 10: Display Icons
HANDSET PANEL LAYOUT - Skype Phone DISPLAY ICONS Own status icons: Buddies status icons: Offline Offline Mobile Not Available Online Online Mobile Online Skype Me Skype Me SkypeOut Handset Away Away SkypeOut Inactive Not Available Not Available SkypeOut Blocked Menu Skype Do Not Disturb Do Not Disturb... - Page 11 PRODUCT - MENU TREE Buddy List Options Handset Nush Manage Buddy KEY_DOWN KEY_SOFT_1 Paul Active View Peter Set Status Sandra Skype Credit KEY_SOFT_2 Missed Calls Menu Skype Options Back Voicemail Select Back KEY_SOFT_1 Contact Contact Search KEY_SOFT_1 Add Entry Copy Phonebook Memory Status Delete Phonebook Select...
-
Page 12: Call Handling
End Call Select Back KEY_TALK KEY_SOFT_2 KEY_SOFT_1 Handset Handset Swap Call SunCo... Jane Conference Paul Jenny Nush Calling Mute On 00:05 SunCorp UK 02:21 Options Mute Options Mute Options UnMute Select Back KEY_END KEY_SOFT_1 KEY_SOFT_2 KEY_SOFT_1 Options Handset Invite SunCo... - Page 13 CALL HANDLING (cont.) Skype Call Options: Swap, Join Conference, Invite, Hold, Start New Calls, and End Call options: Handset Conf. Jenny Jenny 01:10 Options Mute Menu Skype KEY_SOFT_1 KEY_END Options Swap Call SunCo... Jane Join Conference Paul Jenny Invite Hold Call Conference 06:40 Start Call...
- Page 14 CALL HANDLING (cont.) Additional flows on Start Call and Skype Call Options: Options Handset Swap Call Nush Paul KEY_SOFT_1 Join Conference Sandr... Invite Hold Call Incoming Call Ringing Nush Start Call Quiet Reject Options Mute End Call Select Back KEY_SOFT_1 KEY_SOFT_1 KEY_SOFT_1 Buddy List...
- Page 15 CALL HANDLING (cont.) SKYPE CONFERENCING MAKING CALLS While on a Skype call, it is possible to invite another buddy from your Skype buddy list to join To make a Skype to Skype call: your call. 1. Press KEY_DOWN or KEY_SOFT_2 to enter your Skype buddy list. 2.
- Page 16 MANAGE BUDDY Options Buddy List Jane Handset Manage Buddy Jane Skype Name: KEY_SOFT_2 Active View Paul JCoolza Set Status Sandra Speed Dial No: Skype Credit (Empty) Missed Calls Wenfei Menu Skype Select Back Options Back Call Back KEY_DOWN KEY_SOFT_2 KEY_SOFT_1 Buddy List Jane Options...
- Page 17 ACTIVE VIEW Best Buddies List View: Online Buddies List View: Show All Buddies List View: Active View Handset Handset Handset Best Buddies Long press KEY_5 Online Only Show All Menu Skype Menu Skype Menu Skype Select Back KEY_DOWN KEY_DOWN KEY_DOWN Buddy List Best Buddies Online Buddies...
- Page 18 ACTIVE VIEW (cont.) BUDDY LIST CHARACTERISTICS: To set your Active View: 1. All buddies are grouped in the following orders: 1. At your buddy list view (screen F1), press Options (KEY_SOFT_1). > Skype 2. Scroll to Active View and press Select (KEY_SOFT_1).
- Page 19 VOICEMAIL Voicemail The handset allows you to check your voicemail and let you make the call back from the Handset Jane Long press voicemail list. KEY_1 Paul Sandra When a new voicemail is left - the reminder icon will appear on the handset idle display Nush and the event indicator LED on the handset and base will flash.
-
Page 20: Missed Calls
Sandra Nush Menu Skype Details Back Menu Skype KEY_DOWN KEY_UP Buddy List Details Dialed Calls Jane Caller: Jane Jenny Jane SunCorp Sandra 07/Oct 21:30 Sandra Nush Will Options Back Call Back Details Back KEY_SOFT_1 KEY_SOFT_1 KEY_TALK Options Details Manage Buddy... -
Page 21: Set Status
SET STATUS Handset Handset KEY_DOWN Skype Offline Menu Skype Menu Skype Ignore Back KEY_DOWN KEY_SOFT_2 KEY_SOFT_1 Buddy List Set Status Buddy List Jane Offline Jane Jenny Online Jenny Sandra Skype Me Sandra Away Will Not Available Will Options Back Select Back Options Back... - Page 22 SET STATUS (cont.) Changing your status from Offline: Set Status To set your Skype status: Handset Offline Long press KEY_4 Online 1. At your buddy list view (screen G1), press Options (KEY_SOFT_1). Skype Me 2. Scroll to Set Status and press Select (KEY_SOFT_1).
-
Page 23: Skype Credit
SKYPE CREDIT CHAT ALERT Skype Credit The handset is able to notify you when a new chat is Handset No Skype Credit Handset Long press received. KEY_6 When a new chat arrives, the handset will display the missed chat icon. The missed chat icon is removed once you have interacted with all the new incoming chat on your PC.
