Power-Pole Downrigger Instructions

INSTALLATION

STEP 1
Install the mounting stirrup
Remove the 2, 1/4" bolts from the knuckle of the Power-Pole. FIG. 1
STEP 2
Attach the Downrigger Stirrup mount to the knuckle using the
supplied hardware. This hardware needs to go in the correct order to
ensure the stirrup mount does not damage the knuckle or vice versa.
FIG. 2
NOTE: If attaching to a Power-Pole Blade use long plastic spacer (C)
for all other Power-Pole models use the short spacer.
Proper hardware order:
Flat Washer A
Stirrup Mount B
Plastic Spacer C
Slide the bolt through the knuckle then repeat for the other side.
Tighten the bolts down until they are snug, there is no need to
over-tighten bolts.
NOTE: Use short black spacer (C ) for all
Power-Pole anchors, except Blade
models use the long spacer.
Hardware missing? Need help? Contact our Technical Support Team at 1 + 813.689.9932 Option 2
DOWNRIGGER
INSTRUCTIONS

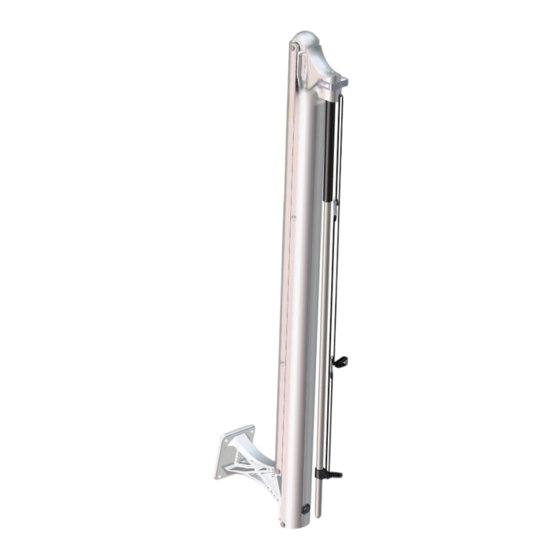

Congratulations on your purchase of the Power-Pole
To add the Power-Pole Downrigger follow these simple step by step instructions.
9010 Palm River Road, Tampa, Florida 33619 phone 813.689.9932 • fax 813.689.8883 • power-pole.com
©2017 all rights reserved. Power-Pole Shallow Water Anchor U.S. Patent No. 6,041,730
Downrigger.
®
1/4" Bolts
A
C
A
Figure 2
Knuckle
Figure 1
B Stirrup Mount
