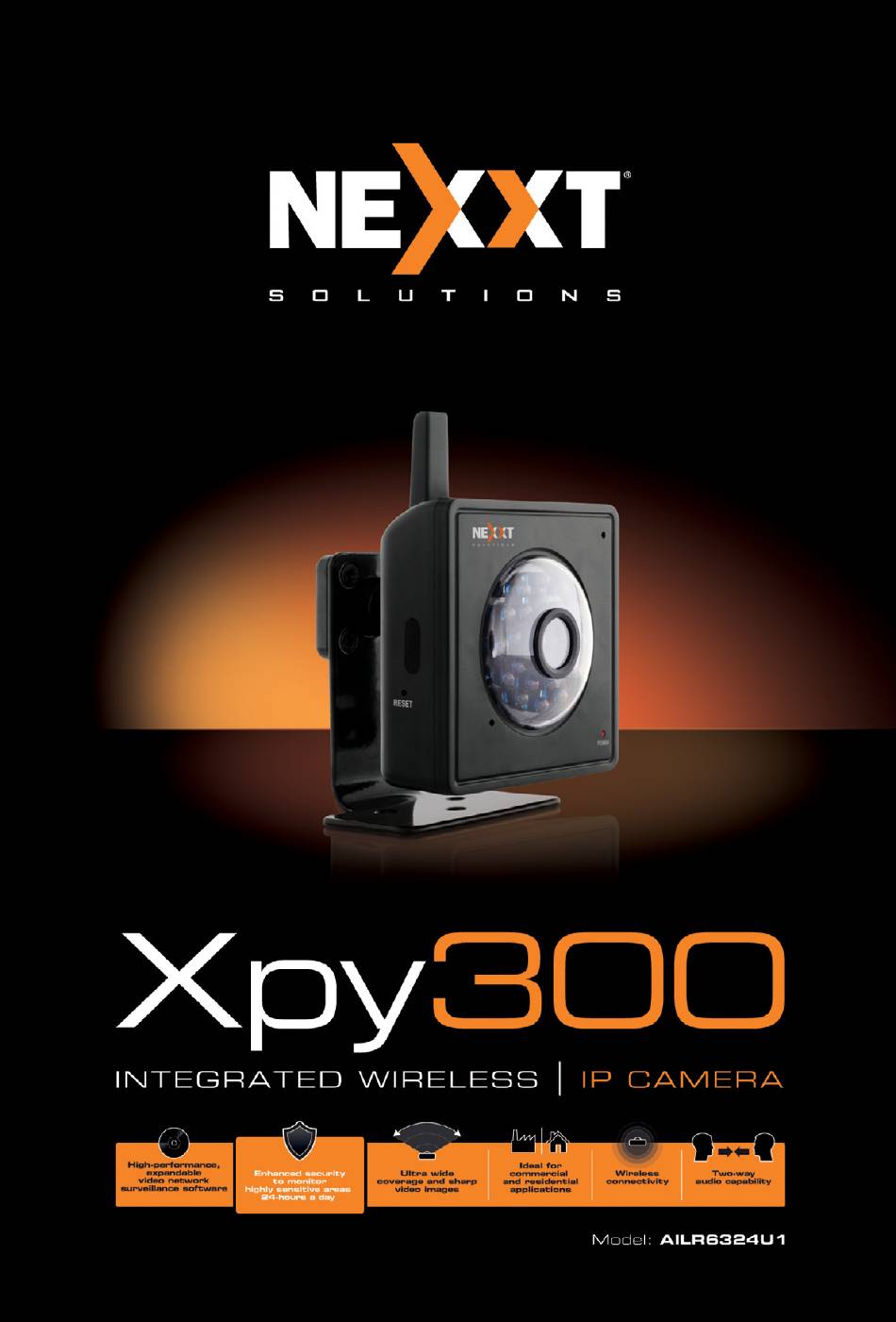

Nexxt XPY300 User Manual

Integrated wireless ip camera
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the XPY300 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexxt XPY300

Summary of Contents for Nexxt XPY300

  • Page 2 Nexxt Solutions - Integrated Wireless IP Camera Integrated Wireless IP Camera INTRODUCTION Thank you for purchasing the Nexxt Solutions XPY 300 Camera. Our new XPY is an integrated wireless IP Camera solution that combines a high quality digital video camera with network connectivity...

  • Page 3: Before You Begin

    Nexxt Solutions - Integrated Wireless IP Camera BEFORE YOU BEGIN This camera is intended for indoor use only. • Use the supplied power adaptor to connect the • camera to the AC mains (5.0V DC, 1.5A). The warranty does not cover any damage caused by applying the wrong voltage.
  • Page 4 Nexxt Solutions - Integrated Wireless IP Camera FEATURES The camera combines a high-sensitivity 1/4 CMOS • image sensor with a powerful wireless web server in order to capture clear images from anywhere, and to transmit them instantly on your local network or over the internet.

  • Page 5: Package Contents

    Nexxt Solutions - Integrated Wireless IP Camera Mac users are only able to: view live images via compatible web browsers including Safari, Firefox and Chrome but are limited to viewing one camera at a time. take and save snapshot images via the web browser interface.
  • Page 6 Nexxt Solutions - Integrated Wireless IP Camera Begin by screwing the bracket to the camera. Connect the camera using the power adaptor that comes with the product. Using a standard Ethernet network cable, connect the camera to your network. The camera can either be connected to a router/ switch or directly to a PC with an Ethernet network cable.
  • Page 7 Nexxt Solutions - Integrated Wireless IP Camera 2. Plug the other end into an available RJ-45 port on your router. 3. Connect the power cable to the wall outlet. Please note that if you are using the camera on a wireless network, you will need to configure the...
  • Page 8 Nexxt Solutions - Integrated Wireless IP Camera Functions: *Supports up to 81-video monitoring in one screen *Supports multi-level structured device list. *Supports scheduled recording with alarm. *Supports panoramic recording. *Supports motion detection, sound alert and external alarm trigger. *Supports audio, SMS, SMS modem, dialing, email, FTP and alarm output switch.
  • Page 9 Nexxt Solutions - Integrated Wireless IP Camera Now, let’s take the 300-series and 330-series as examples to introduce the adding device option. 300-Series Image:...
  • Page 10 Nexxt Solutions - Integrated Wireless IP Camera 330-Series Image: Name: name assigned to the camera, used to distinguish it from other devices connected. This...
  • Page 11 Nexxt Solutions - Integrated Wireless IP Camera name will be displayed on the camera list name will be displayed on the camera list. Basic information: the basic information used for connecting the camera, such as connection method, username, password, PT protocol, etc.
  • Page 12 Nexxt Solutions - Integrated Wireless IP Camera Camera Parameters 300-Series Image 330-Series Image...
  • Page 13 Nexxt Solutions - Integrated Wireless IP Camera This menu is used to quickly set the camera parameters. Not all models have this function. Click the Get button to obtain the current settings. Click Apply or Set depending on the model to save your modifications.
  • Page 14 Nexxt Solutions - Integrated Wireless IP Camera Device Tree Components: this tree provides a visual representation of all detected devices. Supports multi-level structure from which users can connect or disconnect devices in a particular group. Users can double click on a device to connect it and see the video in the display area, or click the Camera/  ...
  • Page 15 Nexxt Solutions - Integrated Wireless IP Camera continuously, schedule a recording or setup a recording whenever an alarm is triggered. Under the Scheduled recording option, users can set specified dates and times. Records will be then saved to the assigned folder path set in the options settings, and will automatically overwrite the earliest files when the disk is full.
  • Page 16 Nexxt Solutions - Integrated Wireless IP Camera Scheduled recording: users can appoint a certain period in which the client will start recording. Alarm The Client software supports various kinds of alarm triggers, alarm events, and can be used to set an alarm schedule.
  • Page 17 Nexxt Solutions - Integrated Wireless IP Camera Enable alarm: in order to use the alarm function, you must check this option. Alarm group: it is a user-defined name to identify and link cameras belonging to the same group. Alarm lasting time: the period of time the software will keep the alarm active.
  • Page 18 Nexxt Solutions - Integrated Wireless IP Camera Days: specify the day(s) of the week the alarm will be triggered. Time: sets a starting and ending time for the alarm. Trigger mode: specifies the type of event that would trigger an alarm.
  • Page 19 Nexxt Solutions - Integrated Wireless IP Camera program. Select the sound and click OK to save the setting. You can also choose other sound files from your lo- cal disk drive. In other words, you can record “Catch the thief” in a file, save it and then select the sound file by clicking the folder button to add the file you want.
  • Page 20 Nexxt Solutions - Integrated Wireless IP Camera Email: when the alarm goes off, the program will send an email acknowledgement with the pictures or video recording attached. Attachment: the user can choose to send emails with or without attachments, or with pictures or videos.
  • Page 21 Nexxt Solutions - Integrated Wireless IP Camera FTP Uploading: when the alarm is triggered, the program will upload the snapshots to the FTP server. Upload file: three options are available: picture only, video only, or both picture and video. FTP host address: account information required to access the File Transfer Protocol host.
  • Page 22 Nexxt Solutions - Integrated Wireless IP Camera supports the dialing feature. Number to be dialed: the number which will be dialed once the alarm is triggered. Test: Click Test to make sure this setting is functional. SMS modem: when an alarm is triggered, the...
  • Page 23 Nexxt Solutions - Integrated Wireless IP Camera Skype: when an alarm is triggered, the program will use Skype to send Skype messages, text messages, Skype calls and call a mobile phone. This feature requires for Skype to be installed on your computer.
  • Page 24 Nexxt Solutions - Integrated Wireless IP Camera Test: Click Test to make sure this setting is functional. Application: when the alarm is triggered, the program will execute the selected program. Program: it defines the path for the .exe file belonging to the selected program.
  • Page 25 Nexxt Solutions - Integrated Wireless IP Camera URL Link: When the alarm is triggered, the program will open the assigned URL. Usually, this is used to inform other systems about the alert. User Account Administration The Client supports a multi-level management...
  • Page 26 Nexxt Solutions - Integrated Wireless IP Camera When this feature is enabled, the program will always request authentication from users. By default, the admin account enjoys full administra- tor privileges. This account can never be deleted; however, its password can be changed.
  • Page 27 Nexxt Solutions - Integrated Wireless IP Camera Delete: the currently selected operator will be erased. Modify authority: it changes the permission level assigned to this operator. Change password: it allows the user to modify the existing password. Log manager The client software has log management function. It will keep records of user operation and device con- nection information.
  • Page 28 Nexxt Solutions - Integrated Wireless IP Camera After selecting the desired device and date, click the Find button. Records publisher Users can remotely view videos and alarm logs using the records publishing tool from the client. Click the Setup menu on the bottom right corner of the dialog box, and choose Record History Web Publisher.
  • Page 29 Nexxt Solutions - Integrated Wireless IP Camera By default, this function is not enabled. You must first select the Enable History Publisher option and click the Apply button to enable this feature. The LAN IP address will be displayed at this point. Users can di- rectly view records in the LAN if the PC has a fixed IP address.
  • Page 30 Nexxt Solutions - Integrated Wireless IP Camera Users can set a password for controlled access permissions. The Web server port is the port provided for re- mote visit. Normally, this value does not need to be changed, but if that port is being occupied by other devices, users can assign a different port number within the 1 ~ 65535 range.
  • Page 31 Nexxt Solutions - Integrated Wireless IP Camera A list containing all the devices with recorded video files will appear. Next, click on any specific device, and a list of recordings identified with the date will be displayed at this stage.
  • Page 32 Nexxt Solutions - Integrated Wireless IP Camera During playback, the user can rewind or forward the video, take a snapshot or invert the recorded images. The process to remotely access alarm records is the same as with video records. Registration Go to the Setup menu and select Registration.
  • Page 33 Nexxt Solutions - Integrated Wireless IP Camera When done, the camera login page will be displayed on the screen. 2. Click “sign in” to enter your account and password on the camera login page, as shown below. By default, the administrator’s username is “admin”...
  • Page 34 Nexxt Solutions - Integrated Wireless IP Camera functions and to the advanced configuration of the camera. 3. If you are using a PC, follow the top link for IE Browsers. This will activate ActiveX which allows access to additional features of the user interface.
  • Page 35 Nexxt Solutions - Integrated Wireless IP Camera Indicates the number of cameras connected on the network. For Viewer When logged in as visitor, the user will be able to view the main monitoring page for all the enabled cameras on the network. This window allows you to choose between Full View or Split Screen configurations.
  • Page 36 Nexxt Solutions - Integrated Wireless IP Camera Audio switch Click to enable the audio stream from the cam-   era. The icon will change to . In order to be able   to listen to the sound around the camera, you need to have an earphone or speaker connected to the computer, and the microphone function enabled.
  • Page 37 Nexxt Solutions - Integrated Wireless IP Camera For operator When logged in as an operator, the user will have access to the Operator Page, and to certain parameters associated with the operation of the camera. Pan/Tilt This function is not available for this model.
  • Page 38 Nexxt Solutions - Integrated Wireless IP Camera with other basic information pertaining to the camera. Alias Settings: iallow the administrator to set a name to easily identify the IP camera. Anonymous is the default alias for the XPY300. Date & Time Settings: these are used to determine the time zone for your country.
  • Page 39 Nexxt Solutions - Integrated Wireless IP Camera Restore Factory Settings - Restores the original settings of the device. Reboot Device - Reboots the device. Multi-Device Settings In the Multi Device Settings page, the user can visualize all devices detected in the LAN. The firmware inside the camera supports up to 9 cameras monitoring at the same time.
  • Page 40 Nexxt Solutions - Integrated Wireless IP Camera ‘Add’. Repeat the same procedure to add additional cameras. To add cameras to the Internet First make sure the camera added can be accessed on the Internet with the IP address or DDNS domain. (for example: http://XXX.XXX.XXX.
  • Page 41 Nexxt Solutions - Integrated Wireless IP Camera ADSL Settings When connected to the Internet through ADSL, you can enter the ADSL username and password obtained directly from your ISP . DDNS Service Settings The system supports protocols from some DDNS providers such as dyndns.org.
  • Page 42 Nexxt Solutions - Integrated Wireless IP Camera User and Password: the User Name and Password used when applying for the domain name. DDNS Host: the domain name. DDNS or Proxy Server: if you access the DDNS host through a proxy, you should enter the Proxy IP here.
  • Page 43 Nexxt Solutions - Integrated Wireless IP Camera There are 8 possible Mail Test errors: 1. Cannot connect to the server. 2. Network Error. Please try later. 3. Server Error. 4. Incorrect username or password. 5. The Sender is denied by the server - The server needs to authenticate the user;...
  • Page 44 Nexxt Solutions - Integrated Wireless IP Camera Report Internet IP by Mail - Check the box so when the IP camera is powered on or the Internet IP address changes, an email will be sent. (For example: XPY 300`s address is http://119.123.207.96:9002).
  • Page 45 Nexxt Solutions - Integrated Wireless IP Camera 1. Cannot connect to the server - Please check FTP Server settings. 2. Network Error. Please try later. 3. Server Error. 4. Incorrect username or password - Check the username and password. 5. Cannot access the folder - Ensure the folder exists and your account is authorized.

  • Page 46: Accessing The Ip Camera

    Nexxt Solutions - Integrated Wireless IP Camera Motion Detection Sensitivity - Sensitivity can be determined in a scale from 1 to 10, 1 being the setting with the highest motion detection sensitivity, while 10 represents the lowest sensitivity available you can preset.
  • Page 47 Nexxt Solutions - Integrated Wireless IP Camera 5. Log in to the web browser of the IP camera. 6. Now you can use the IP Camera as a Visitor, Operator or Administration in the LAN. 7. Open the wireless router setup page and enter the SSID, Channel, Security Method (NONE, WEP), Authentication Type and Encryption.
  • Page 48 Nexxt Solutions - Integrated Wireless IP Camera 6. By connecting the IP Camera to the ADSL directly, you can access the Camera through the Internet using the domain name. NOTE: Choose the option ‘Report ADSL IP by Mail’, for the ADSL IP address to be sent via email.
  • Page 49 Nexxt Solutions - Integrated Wireless IP Camera for remote access. When the settings of the IP camera in LAN mode are complete, you can access the Camera directly through the Internet using the WAN IP . Two methods are available to obtain the WAN IP address.
  • Page 50 Nexxt Solutions - Integrated Wireless IP Camera Accessing the IP Camera over the Internet Users can access the IP Camera from the Internet. Enter the WAN IP address and port number into the browser. For example, http://116.25.51.115:85. Note: Make sure Port mapping is successful. Port mapping can be configured in two ways: •...
  • Page 51 Nexxt Solutions - Integrated Wireless IP Camera 2. Enter DDNS Settings Page to enable the DDNS service, and click ‘Submit’ to reboot the camera. 3. Re-log in to the Camera web browser as Administrator and enter the ”DDNS Service Settings” page to check if the DDNS Status has been successfully changed to DynDNS.
  • Page 52 Nexxt Solutions - Integrated Wireless IP Camera If the gateway settings and DDNS settings have been completed, enter the DDNS dynamic domain name (for example,http://ipcam.vicp.net, do not add www.) in the address bar of IE to access the IP Camera. If multiple IP Cameras are connected to the same router, enter DDNS dynamic domain with the port number (for example, http://ipcam.vicp.
  • Page 53 Nexxt Solutions - Integrated Wireless IP Camera Camera: port number 3. Demo example: http://y-cam.dtns.net:8152. 4. This will bring up the authentication window to enter your user security settings. 5. Next, a window with 2 different option will pop up. 6. Select the best option based on the web browser supported by your particular phone.
  • Page 54 Nexxt Solutions - Integrated Wireless IP Camera IP Address configuration Check whether the IP address of the IP Camera server shares the same subnet as your work station: Click My Computer > Control Panel > Net- work & Dial-up Connections > LAN > Attributes >...
  • Page 55 Nexxt Solutions - Integrated Wireless IP Camera 1. Install the ‘IP Camera Tool’. ActiveX controller will be installed simultaneously (recommended). 2. Download ActiveX controller and set the Security Properties of IE on the PC when you view it for the first time: Go to Tools >...
  • Page 56 Nexxt Solutions - Integrated Wireless IP Camera Can’t access the IP camera on the internet? There could be a number of reasons: 1. ActiveX controller is not installed correctly. 2. The port IP camera being used is blocked by Firewall or an anti-virus software. Use a different port number and try again.
  • Page 57 Nexxt Solutions - Integrated Wireless IP Camera 2. Click ‘Add to Firefox (in Windows)’ to start the download. 3. Wait for the download to complete. A dialog box will pop-up as shown as in the chart below. 1. Click the ‘Install Now’ button to start installation.
  • Page 58 Nexxt Solutions - Integrated Wireless IP Camera 5. When installation is complete, click ‘Restart Firefox’ to initialize the browser. 6. Log in to your device and locate the monitoring page, right click on the web browser page and click the new menu item named ‘View page in IE-Tab’ to...
  • Page 59 Nexxt Solutions - Integrated Wireless IP Camera Default Parameters Default network parameters IP address: Automatically obtained Subnet mask: 255.255.255.0 Gateway: Automatically obtained DHCP: Disabled DDNS: Disabled Username and password Default Administrator User Name: admin no password Default Administrator Password:...

  • Page 60: Specifications

    Nexxt Solutions - Integrated Wireless IP Camera SPECIFICATIONS Model AILR6324U1 Specifications Image sensor 1/4 color CMOS Lens 4 mm Infrared LED 21 pcs Pixels 300,000 Night vision range 15 m Camera AWS/AGC/AES Auto Compression format MJPEG Minimum Illumination 0.1 Lux Viewing angle Horizontal 57°...

This manual is also suitable for:

Ailr6324u1
