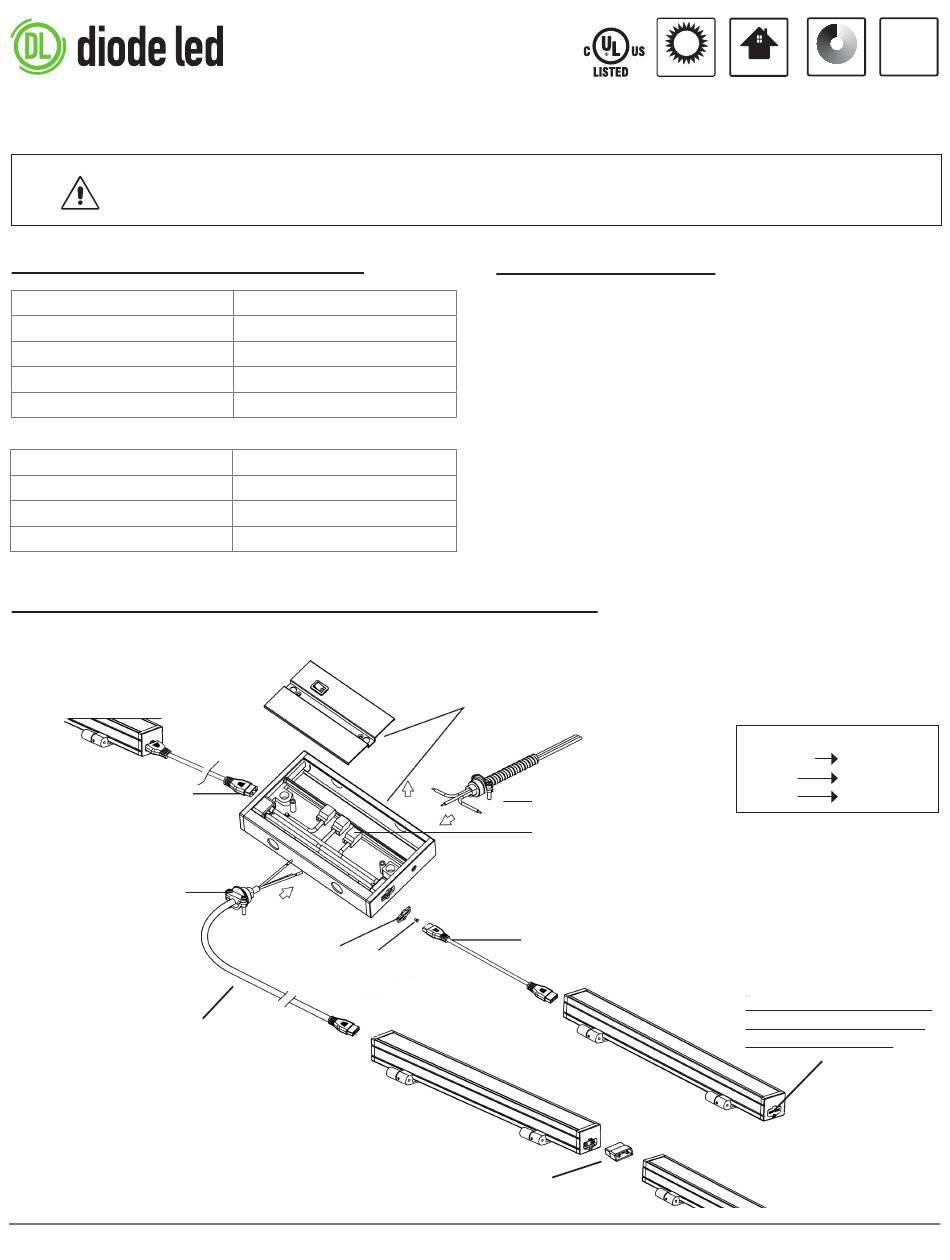

DIODE LED FENCER FOIL 2 Installation Manual

FENCER FOIL
®

WARNING!

WARNING
INCLUDED MODELS / QUICK SPECS
SKU
DI-120V-FOIL-PDxx-12-yy
DI-120V-FOIL-PDxx-18-yy
DI-120V-FOIL-PDxx-24-yy
DI-120V-FOIL-PDxx-32-yy
xx - Indicates CCT (Kelvin); yy - Indicates color finish
Input Voltage
Maximum Series Run
Ambient Temperature
Environment

INSTALLATION - UL LISTED 1598 HARD-WIRED LUMINAIRE

3/8" Romex Connector
Use FENCER FOIL 72 in. Power Cable
with Hard-Wire Connection (DI-FOIL-
HWPWR-**) to connect to FENCER FOIL
Direct Wire Switch & J-Box (DI-FOIL-
JBOX-**). Hard-wired connections must be
made in the FENCER J-box or other Listed
enclosure.
Use FENCER FOIL Linkable End-to-End Connector, one included,
(DI-FOIL-ETE-**) to link FENCER FOIL fixtures together.
2 INSTALLATION GUIDE
FENCER FOIL
® ™
®
2
™ PREMIUM DIFFUSION
LED FIXTURE
DO NOT CONNECT DIRECTLY TO HIGH VOLTAGE POWER! TURN MAIN POWER OFF BEFORE INSTALLING OR SERVICING!
Read all warnings and installation instructions thoroughly.
Read all warnings and installation instructions thoroughly.
Power Consumption
7W
10W
13W
17W
~120VAC / 50 ~ 60Hz
300W
-4° ~ 122°F (-20° ~ 50°C)
Indoor / Dry Locations
Terminal
Cover
Terminal
Cover Screw
SAFETY & WARNINGS
1. Install in accordance with local and national electrical codes.
2. This product is intended to be installed and serviced by a licensed
electrician.
3. Turn power off at circuit breaker prior to installation or servicing.
4. Risk of Electric Shock! Do not use any connection pin to touch
electrical connections.
5. For indoor use only. Do not install outdoors or in potentially combustive
environments.
6. Do not exceed 300W for daisy-chain series connections.
7. Do not install this product in an environment outside the listed
ambient temperature.
8. Do not modify or disassemble this product beyond instructions or the
warranty will be void.
9. See the 'FENCER SERIES Dimmer Compatibility List' for a list of
compatible dimming controls.
Remove cover port of FENCER FOIL Direct Wire Switch & J-Box (DI-FOIL-
JBOX-**) to access wiring compartment. Included push-in wire connectors
should only be used with 12AWG wire. If using thinner gauge wire cut off
pre-attached connectors and make connection with standard UL Listed
twisted wire connectors.
Romex (NM) or BX Cable
Push-in wire connectors
Use FENCER FOIL Extension Cable (DI-FOIL-**EXT-**) to connect
to FENCER FOIL Direct Wire Switch & J-Box (DI-FOIL-JBOX-**) or
link between FENCER FOIL fixtures.
1 OF 2
90+
HIGH CRI DRY LOCATION
INSTALLATION GUIDE

WIRING KEY

Line (HOT)
Neutral
Ground
Ensure all terminal covers are
attached to open ports once
installation is complete!
120VAC
DIMMABLE
Black
White
Green/Yellow
IG071717-2.0
