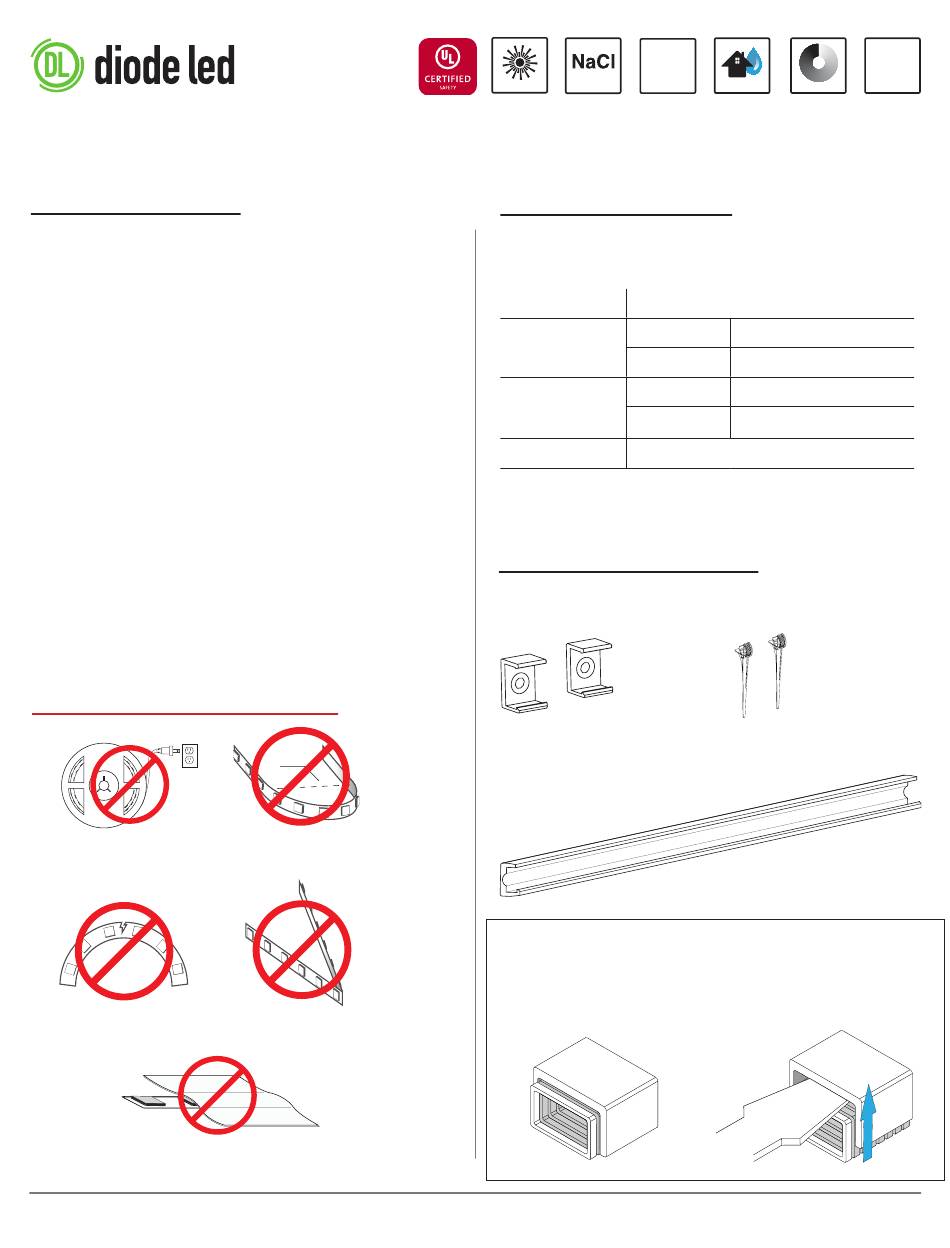

HYDROLUME
®
SAFETY & WARNINGS
1. Install in accordance with national and local electrical code regulations.
2. This product is intended to be installed and serviced by a qualified,
licensed electrician.
3. Do not modify or disassemble this product beyond instructions or the
warranty will be void.
4. Do not submerge, or install within 5 feet of a swimming pool.
5. All plastics are affected by the elements and may shift in color and
other properties after product installation, particularly with direct
exposure to sun, chlorinated water, and other chemicals.
6. Only install with a Listed Class 2 DC LED driver.
7. To avoid Voltage Drop, ensure wire gauge used with LED Strip Light is
sufficient to keep under 3% voltage drop.
8. Do not exceed maximum run recommended for Strip Light.
9. Diode LED Strip Light is designed to be cut at designated cut points
only. Cutting anywhere other than the cut points will result in damage
to the Strip Light.
10. Failure to follow safety warnings, and installation instructions will void
the warranty for this product.
HANDLE PRODUCT WITH CARE!
DO NOT POWER STRIP
LIGHT WHILE ATTACHED TO
SPOOL OR TIGHTLY COILED.
DO NOT BEND LED STRIP LIGHT
ON A HORIZONTAL PLANE.
DO NOT COVER STRIP LIGHT WITH
ANY MATERIALS.
HYDROLUME
INSTALLATION GUIDE
®
®
LED STRIP LIGHT
4 in.
DO NOT BEND LED STRIP
LIGHT TO A DIAMETER LESS
THAN 4 INCHES.
DO NOT FOLD, CREASE, OR
TWIST LED STRIP LIGHT.
SALTWATER
UV RESISTANT
RESISTANT
INSTALLATION GUIDE
QUICK SPECS / MODELS
DI-24V-HL**
DI-24V-HLP**
Input
24VDC Constant Voltage
Standard
Power
Plus
Standard
Max Run
Plus
Ambient Temp †
-4° ~ 122°F (-20° ~ 50°C)
** Indicates model and CCT
† Do not install product in environment outside listed temperature.
ADDITIONAL ACCESSORIES
Mounting Bracket
DI-HL-MTBR
Mounting Channel
DI-HL-MTCH
CONNECTOR COMPRESSION
HYDROLUME Connectors may become compressed during shipping.
To decompress, insert flathead screwdriver under top of connector
and apply upward pressure until pins are completely removed from
opening.
1 OF 6
IP65
DRY/WET LOCATION
DIMMABLE
1.13W/ft. (0.65W/cut point)
2.04W/ft. (1.2W/cut point)
81.5 ft.
32.6 ft.
Stake Bracket
DI-HL-STBR
24VDC
IG102918-6.0
Advertisement
Table of Contents
Related Manuals for DIODE LED HYDROLUME DI-24V-HL Series
Summary of Contents for DIODE LED HYDROLUME DI-24V-HL Series
-
Page 1: Installation Guide
8. Do not exceed maximum run recommended for Strip Light. ADDITIONAL ACCESSORIES 9. Diode LED Strip Light is designed to be cut at designated cut points only. Cutting anywhere other than the cut points will result in damage Mounting Bracket Stake Bracket to the Strip Light. - Page 2 INSTALLATION CREATE HYDROLUME STRIP LIGHT SPLICE CONNECTORS TURN POWER OFF AT CIRCUIT BREAKER CUT END OFF OF FLEXIBLE EXTENSION Using a pair of scissors, cut one end off a Hydrolume Flexible Extension Cable. SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installalation.
- Page 3 Once secured, DO NOT remove connector. not included) and HYDROLUME end caps. Acidic adhesive may damage the phosphor of LED Chips If connector comes loose, it must be replaced. Contact Diode LED for assistance. INSERT HYDROLUME LED STRIP LIGHT INTO CONNECTOR Neutral Silicone adhesive/sealant (non-acidic) *For use with Cable Jumper, Splice, I, L, T, and X-Connectors.
- Page 4 INSTALLATION (CONT.) HYDROLUME Mounting Channel Mount channel to desired surface using minimum 2x M2.9 (#4) screws or a similar size (not provided). Once channel is mounted, MOUNT HYDROLUME TO SURFACE. firmly press HYDROLUME into channel pressing one end to the other.
- Page 5 SYSTEM DIAGRAMS The following diagrams are provided as example system designs. For information regarding larger systems or systems not pictured below, please see our web page or contact technical support. Always review each component installation guide for detailed and up-to-date wiring instructions. Install in accordance with national and local electrical codes.
- Page 6 VOLTAGE DROP CHARTS For best performance and lumen output, ensure proper wire gauge is installed to compensate for voltage drop of low voltage circuits. Example: 12V Voltage Drop & Wire Length Distance Chart Determine load size. Let’s assume load Wire 10 W 20 W 30 W...
