- Page 1 AO-CA70 Plus Cell Phone Signal Booster User Manual 1 / 10 ...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents

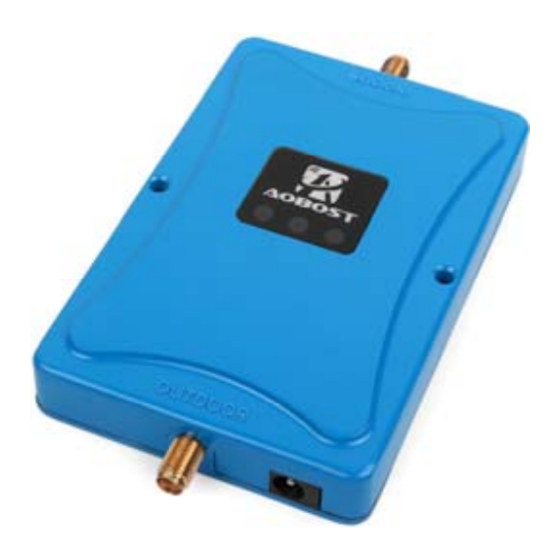

PACKAGE CONTENTS 1. 1Pcs AO-CA70 Plus Booster with SMA Female connectors. 2. AC/DC Power Adaptor. 3. Screws Mounting Kits. 4. User manual (this document). -
Page 4: Installation Instructions
N male /SMA 5.89dB @1710-2155MHz male connector Notes：The above model antennas are suitable for AO-CA70 Plus booster . Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the AOBAO company, otherwise it shall be deemed invalid. - Page 5 Testing the signal strength received from outdoor antenna mounted in site by mobile phone: Please select the top of building to install the outdoor antenna if total floors are less than 7 floors, and shall try your best to select places like balcony or platform lower than 7 floor for outdoor antenna if the buildings are over 7 floors, because the mobile signals are clean at less than 7...
- Page 6 and send to the indoor antenna hereafter. If the distance between outdoor antenna and indoor antenna is less than the required distance, the amplified signal will go back from indoor antenna to outdoor antenna. So it will lead to self-oscillation and reduce the coverage area, also the bad calling quality could happen at the same time, and the worse is that the mobile network could be influenced badly and the operators will finally come to shut off the booster system.
-
Page 7: Booster Installation
3D-FB Coaxial cable with N male connector. Notes：Indoor antenna must be operated at a fixed location inside a building. （3）Booster Installation Do not place the equipment in direct sunlight or in an area that has abrupt temperature and humidity changes. ... - Page 8 It Usually means that the booster is self-oscillated, please make the Mobile phone distance between the indoor and outdoor antenna as far as possible, it is can receive full better to use a wall or metal to Separate the indoor antenna and the out signal, but can door antenna.
-
Page 9: Warranty
authorization for use of a particular booster model on behalf of all subscribers of individual providers. Alternatively, a provider may specify a testing protocol that if satisfied would result in licensee consent to specific booster models. A subscriber may also seek a licensee’s express consent to operate a signal booster, e.g., by phone call or e-mail The following selected information about wireless providers’... - Page 10 on your invoice or sales receipt is the date of installation unless AOBAO or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you; The warranty is voided by removal or alteration of identification labels on the Machine or its parts.
