Universal Tool UT1040S Operating Instructions page 2

Specifications
:
Shank ....................................................................................................................................#5 Spline
Speed..............................................................................................................................5,000 RPM
Working Torque.......................................................................................................464-1600 ft. lbs.
Max. Torque ................................................................................................................2,000 ft. lbs.
Weight....................................................................................................................................22 lbs.
Overall length......................................................................................................................12.4 in.
Average air consumption.....................................................................................................14.5 CFM
Recommended hose size.....................................................................................................3/4" I.D.
Air inlet..............................................................................................................................1/2" NPT
Maximum operating pressure ..............................................................................................90 psi

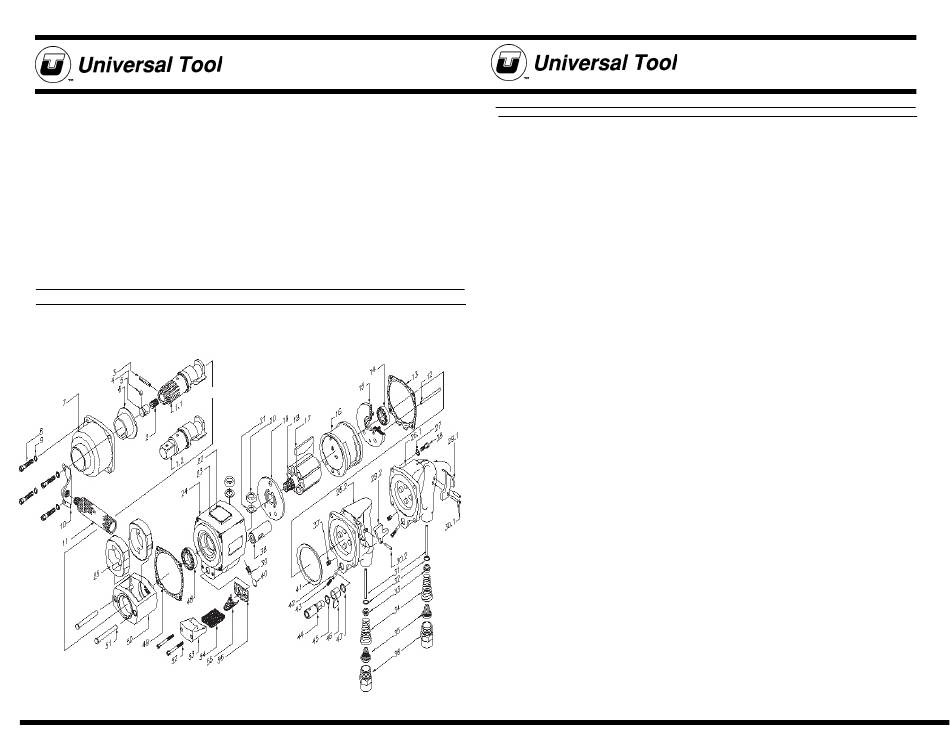

Parts Breakdown for UT1040S
USE ONLY IMPACT SOCKETS & ACCESSORIES
Sockets and accessories used shall be of the impact socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
UT1040S
STRAIGHT #5 SPLINE IMPACT WRENCH
Replacement Parts for UT1040S
REF# PART NO. DESCRIPTION
1.1 2940-A526 SPLINE ANVIL (INCL. # 2, 3, 4, 5,)
2 2940-231 SPRING
3 845-128 PIN
4 D04-280 BALL
5 845-230 PLUNGER
6 2934-641 HAMMER CASE BUSHING
7 2940-A727 HAMMER CASE ASSEMBLY (INCL. # 6)
8 834-638 HANDLE CAP SCREW
9 34U-58 5/16 NORD LOCK WASHER
10 2934-364 ASSIST HANDLE BRACKET
11 834-48 ASSIST HANDLE
12 2940-98 CYLINDER DOWEL PIN
13 2934-283 HANDLE GASKET
14 508-97 BALL BEARING
15 2934-12 REAR END PLATE
16 2940-3 CYLINDER
17 2940-42 VANE
18 2940-53 ROTOR
19 2934-11 FRONT END PLATE
20 R44H-210A AIRPORT GASKET
21 2940-220 RETAINER
22 2940-301 NAMEPLATE (INCL. RIVETS)
23 N/A RIVET
24 2940-A40 MOTOR HOUSING (INCL. # 20, 21, 38)
25 2940-724 HAMMER
26.2 2934-A92A INSIDE TRIGGER HANDLE ASSY (INCL. # 29.2, 30.2, 31, 32, 33, 34,35, 36, 37, 42, 43)
27 8U-58 1/4 NORD LOCK
28 510-638 SCREW
29.2 834-93A TRIGGER - INSIDE
30.2 534-265 PIN
31 2934-302 PLUNGER
32 2934-159 FACE
33 2934-A50 THROTTLE (INCL. # 32)
34 834-51 SPRING
35 434-61 STRAINER
36 845-565 INLET
37 ROH-377 PLUG
38 2934-330S BUSHING
39 4U-664 REVERSE LOCK SPRING
40 4U-663B REVERSE LOCK PLUNGER
41 2934-207 MOTOR CLAMP WASHER
42 R2-75 FELT
43 R2-71 ADJUSTING SCREW
44 2934-A329 REVERSE VALVE (INCL. # 45)
45 85H-167 SEAL
46 2934-658A REVERSE LEVER
47 R00BR-210 SEAL
48 810-97 BALL BEARING
49 2934-36 HAMMER CASE GASKET
50 2940-A703 HAMMER FRAME ASSEMBLY (INCL. # 51)
51 2940-704 PIN
52 R43F-104 BACKHEAD CAP SCREW
53 2934-23A EXHAUST DEFLECTOR
54 2940P-311 EXHAUST SILENCER
55 2934-124 EXHAUST BAFFLE
56 2934-223 EXHAUST GASKET
Limited Warranty
Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by
someone other than Universal Tool or its authorized service centers. If a Universal Tool proves defective in
material of workmanship within one year after purchase, return it to any authorized service center or to Universal
Tool, freight prepaid. Please enclose your name, address and adequate proof of purchase date with a brief
description of the defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period. Universal Tool's sole
liability and your exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential
or special damages, or any other damages, costs or expense of repair or replacement as described above.
STRAIGHT #5 SPLINE IMPACT WRENCH
UT1040S
