Universal Tool UT1010C Operating Instructions page 2

Specifications
:
Shank ....................................................................................................................................1"
Speed........................................................................................................................6,000 RPM
Working Torque..................................................................................................276-950 ft. lbs.
Max. Torque ..........................................................................................................1,350 ft. lbs.
Weight..........................................................................................................................20.5 lbs.
Overall length........................................................................................................................13"
Average air consumption............................................................................................14.8 CFM
Recommended hose size...............................................................................................1/2" I.D.
Air inlet..........................................................................................................................3/8" NPT
Maximum operating pressure ...........................................................................................90 psi

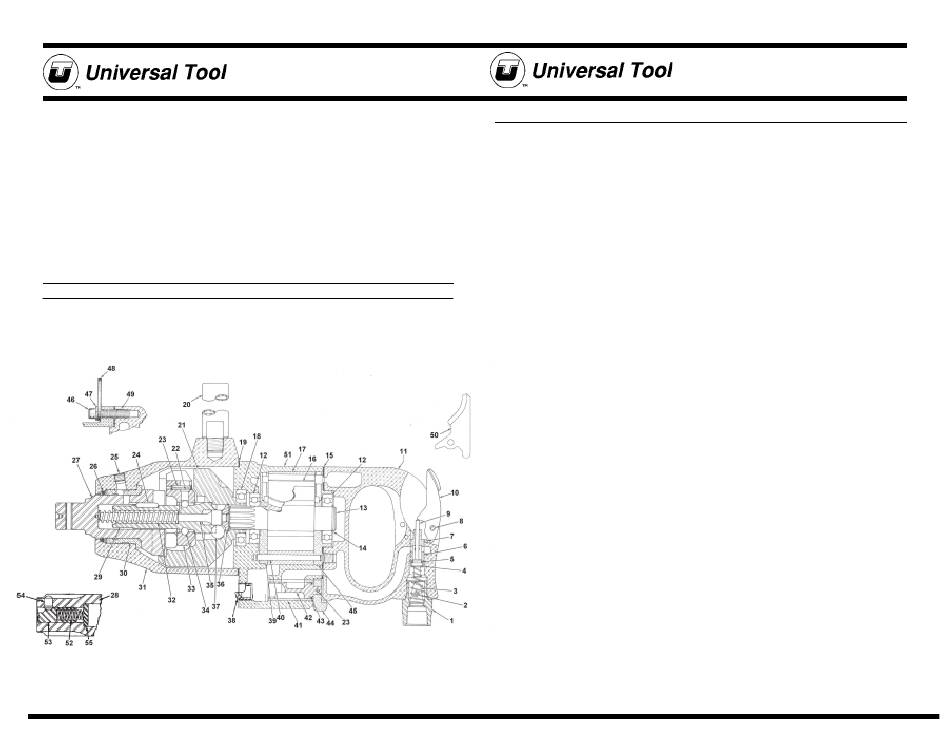

Parts Breakdown for UT1010C
USE ONLY IMPACT SOCKETS & ACCESSORIES
Sockets and accessories used shall be of the impact socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
UT1010C
1" STRAIGHT IMPACT WRENCH
Replacement Parts for UT1010C
REF# PART# DESCRIPTION
1 C-094354 THROTTLE CAP
2 C-088079 THROTTLE VALVE SPRING
3 C-087505 AIR SCREEN
4 CA-050751 O RING RETAINER
5 C-100130 O RING .010
6 C-069010 THROTTLE VALVE BUSHING
7 P-072359 TRIGGER STOP PIN
8 C-036430 TRIGGER PIN
9 C-091633 THROTTLE VALVE
1 1 C-091195 OUTSIDE TRIGGER HANDLE (INCL. #6)
12 C-075812 BALL BEARING
13 C-091207 ROTOR
14 S-082566 RETAINING RING
15 C-091198 COVER GASKET
16 C-091203 ROTOR BLADES
17 C-083329 LINER
18 C-083351 BALL BEARING
19 C-091197 CLUTCH HOUSING GASKET
20 C-039423 DEAD HANDLE
21 C-109735 HAMMER
22 C-109731 RETAINER PIN
23 G-071613 ROLL PIN
24 C-109729 ANVIL ROLLER
25 C-054897 PIPE PLUG
26 C-042123 QUAD RING
28 C-094895 #5 SPLINE ANVIL (INCL. #51, 52, 53, 54)
29 C-109734 SPINDLE
30 C-091184 ANVIL BUSHING
31 C-094479 CLUTCH HOUSING (INCL. #25, 26, 30)
32 C-091187 DOG RELEASE SPRING
33 C-109733 CLUTCH DOG
34 S-005946 BALL
35 C-109728 THRUST PIN
36 C-109732 THRUST FLANGE
37 P-004254 BALL
38 C-091826 EXHAUST DEFLECTOR
39 C-083331 LOWER END PLATE
40 C-083337 CYLINDER DOWEL
41 C-088482 REVERSE VALVE BUSHING
42 C-106819 REVERSE VALVE
43 CA-083354 O RING
44 C-068664 REVERSE LEVER
45 C-083330 UPPER END PLATE
46 C-065376 SCREW
47 S-000271 LOCKWASHER
48 C-091202 BAIL
49 C-094476 HELI-COIL
50 C-063747 INSIDE TRIGGER
51 C-091172 MOTOR HOUSING ASSEMBLY (INCL. #41)
52 C-047618 PLUNGER SPRING
53 C-047619 LOCK PLUNGER
54 C-047620 LOCK BUTTON
55 CA-094789 PLUG
Limited Warranty
Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by
someone other than Universal Tool or its authorized service centers. If a Universal Tool proves defective in
material of workmanship within one year after purchase, return it to any authorized service center or to Universal
Tool, freight prepaid. Please enclose your name, address and adequate proof of purchase date with a brief
description of the defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period. Universal Tool's sole
liability and your exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential
or special damages, or any other damages, costs or expense of repair or replacement as described above.
UT1010C
1" STRAIGHT IMPACT WRENCH
